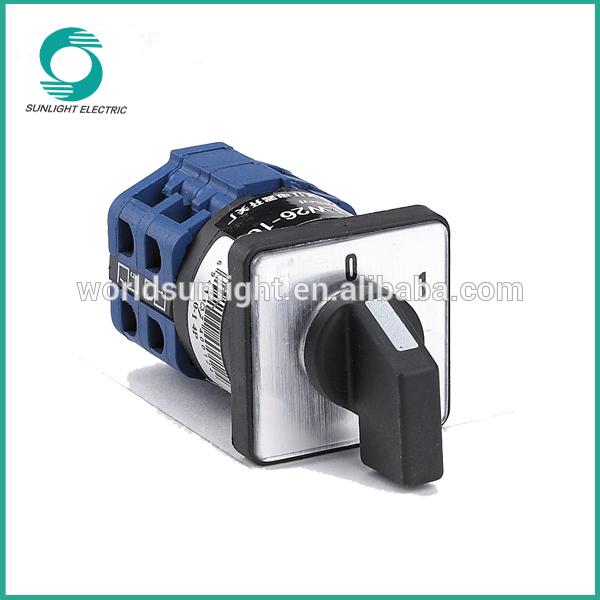

TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch
1. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch application:
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,changeover of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and changeover switch of machinery and welding machine.
function: Control switch of switchgear, motor, instrument, machinery and welding machine.
2. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch features:
1) We can supply 2,3,4,5,6,7,8,9,10... positions
2) operation angle: spring return,limited movement or limited movement with spring return.
3) as for numbers of layers and other needs for product ,you can choose them in the diagram below.
Certificate: CCC,CE, RoHS;
Diagram for the type of plate and handle:
 |
Introdution for the type and meaning of products:
|
3. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch technical parameter:
1. | rated voltage | below 440V |
2. | rated current | 10A,20A,25A,32A,63A,125A,160A |
3. | frequency | AC50HZ |
4. | No.of poles | 2P,3P,4P |
5. | No.of layers | make as required with circuit diagram |
6. | panel size | 30*30mm,48*48mm,64*64mm,88*88mm |
7. | colour of handle | black,white,red,grey |
8. | Working temperature | -25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
9. | Working height | ≤2,000m |
10. | Relative humidity | ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
11. | Instalation conditions | polution class III |
12. | Mechanical life | 100000 times |
13. | Electrical life | 30000 times |
14. | Operative frequency | 120times/hour |
15. | transform angle | 30°/45°/60°/90°/120°/135°/150°/180° |
4. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch dimension and installation:
|
|
5. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch pictures:
|
|
|
|
6. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch packaging:
Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)
|
7. TUV approved IP65 high quality LW26 series 10A-160A electric motor reversing switch shipping:
TNT/EMS/UPS/DHL/FEDEX
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of rotary switch. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
