Product Description

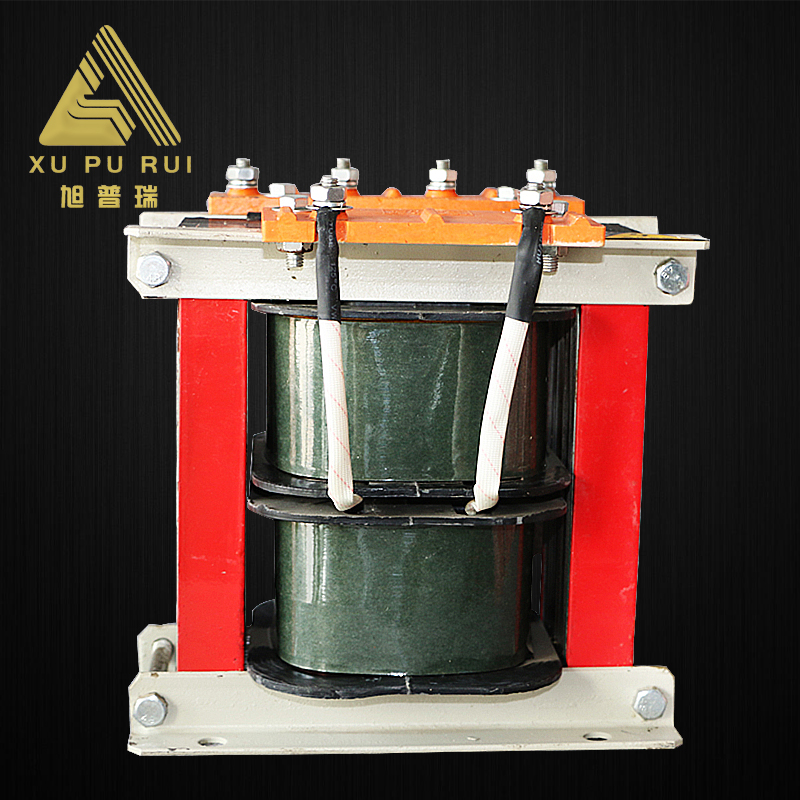

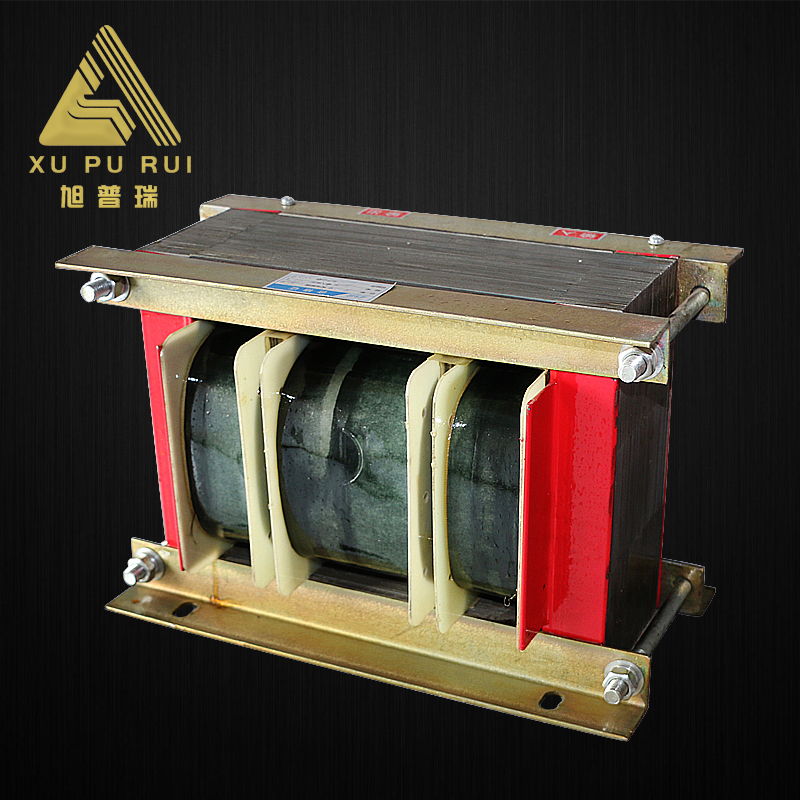

Triple-phase single output 50HZ 13kw transformer 220v for uv lamp
| product name | UV transformer |
| Usage | power supply for UV lamp |
| Watts | 3kw-25kw |
| Input Voltage | 220v/380v |
| Phase | 3 |
| Material | copper |
| Coil Structure | toroidal |
| Frequency | 50-60hz |
| Dimension(mm) | 245*210*270, 275*255*300 , 365*280*380, 340*280*370 , 385*300*375 |
| Output Type | Single |
| Specification | ||||||
| Usage | Watts | Input Voltage | Phase | Material | Coil Structure | Frequency |
| power supply for UV lamp | 3kw-25kw | 220v/380v | 3 | copper | toroidal | 50-60hz |
| Dimensions | ||||||
| Coil | Watts | Input Voltage | Frequency | Dimension(mm) | Weight | |
| Copper | 3kw | 220v 380v | 50-60hz | 245*210*270 | 32kg | |
| 5-6kw | 220v 380v 440v | 50-60hz | 275*255*300 | 56kg | ||
| 9.6kw | 380v | 50-60hz | 365*280*380 | 100kg | ||
| 11.2kw | 380v | 50-60hz | 340*280*370 | 90kg | ||
| 16kw | 380v | 50-60hz | 385*300*375 | 112kg | ||
Application
This kind of lamp is mainly used for printing,plate making,label printing,
paper polishing,metal printing and curing for all kinds of materials coated
with photosensitive ink & paint,is a generally used of ultraviolet light source.
