Product Description

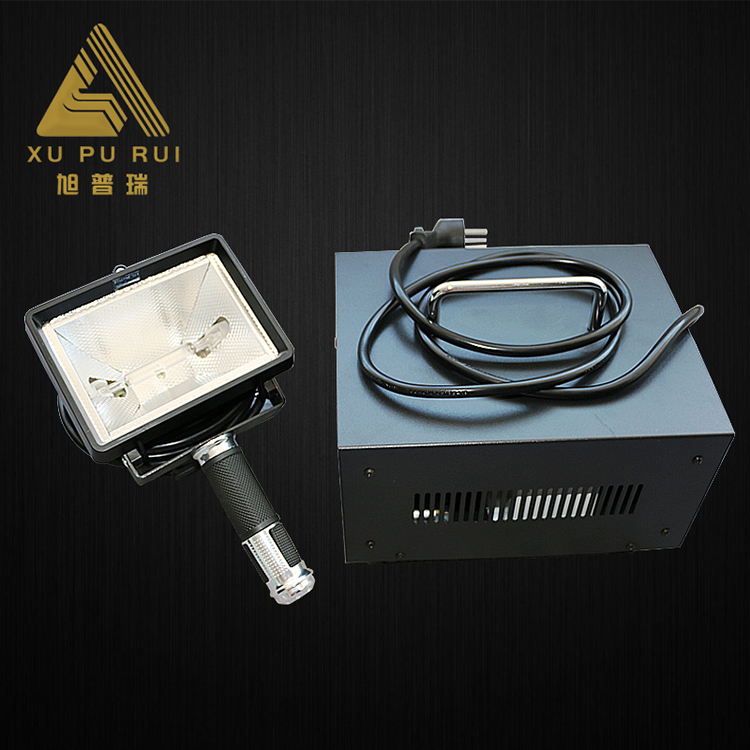

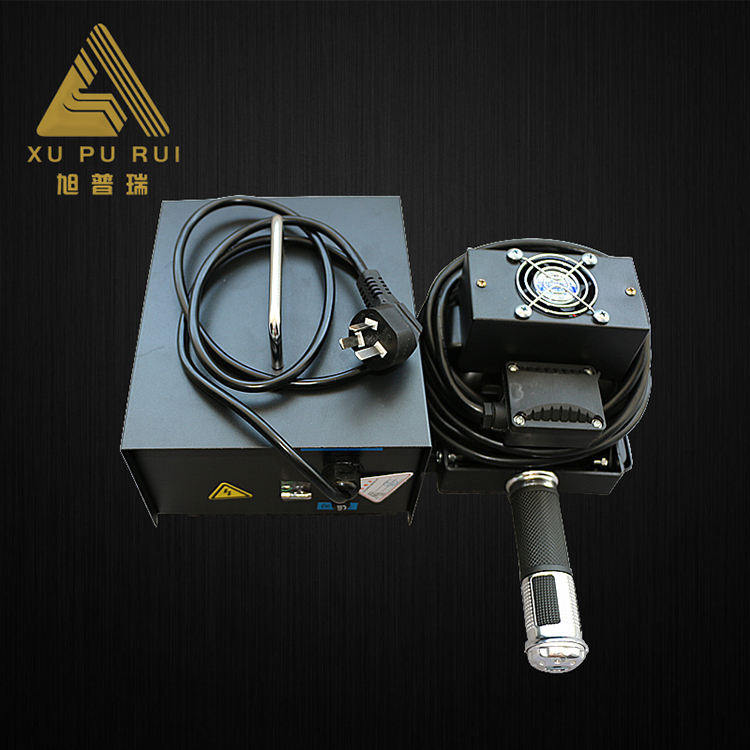

Portable light metal halide UV glue 380V curing machine 3kw
| Name | metal halide uv curing machine |
| Operating power | 220V/380V,50HZ-60HZ |
| Lifetime of the lamp | at least 800 hours |
| Fill | iron iodide |
| Lamp power | 500W-3KW |
| Irradiation Distance | 75mm-350mm |
| Lamp Oven | 220*160*160mm,350*180*180mm,450*180*180mm,600*200*200mm |
| Distribution Box | 260*160*160mm,450*180*180mm,450*180*180mm,550*200*200mm |
| Characteristics | The machine is easy to control, it is split structure |
| Application | Can be used in uv curing, model making, Floor paint curing etc |
| Lamp power | Irradiation Distance | Power Supply | Distribution Box | Lamp Oven | Weight |
| 500W | 75mm | 220v 50HZ-60HZ | 260*160*160mm | 220*160*160mm | 14 Kg |
| 1KW | 150mm | 220v 50HZ-60HZ | 450*180*180mm | 350*180*180mm | 16 Kg |
| 2KW | 250mm | 220v/380V 50HZ-60HZ | 450*180*180mm | 450*180*180mm | 20 Kg |
| 3KV | 350mm | 220v/380v 50HZ-60HZ | 550*200*200mm | 600*200*200mm | 25 Kg |
| Remark:150 watt-3Kwatt can be customized. | 250w-400w is 8Kg | ||||
Application
This kind of lamp is mainly used for printing,plate making,label printing,
paper polishing,metal printing and curing for all kinds of materials coated
with photosensitive ink & paint,is a generally used of ultraviolet light source.
