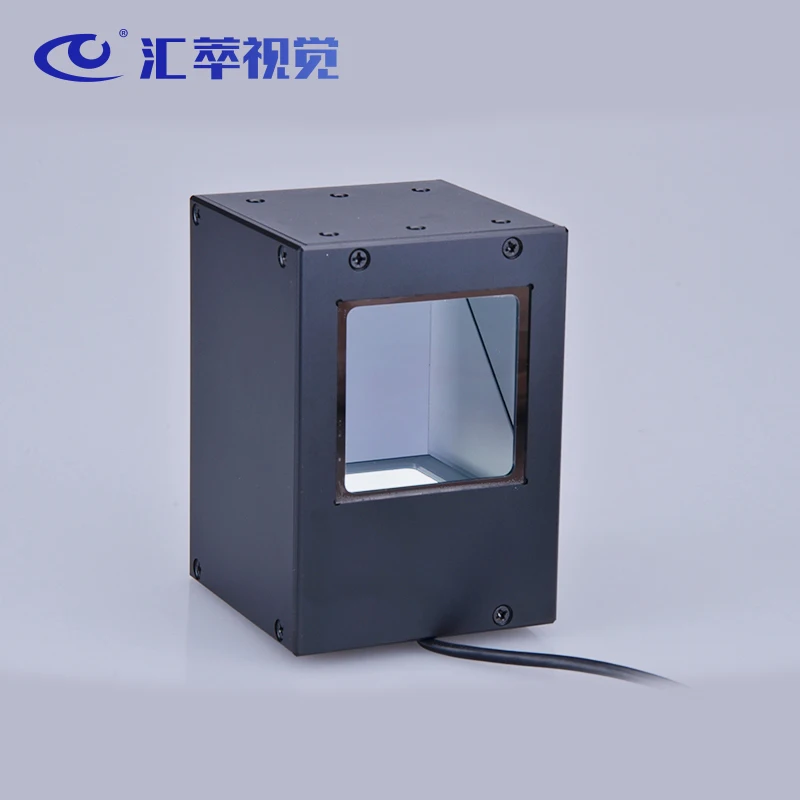

HC-COX Series LED Illumination Machine Vision Coaxial LED Light For industrial Camera
Specification
Color (Wavelength) | Red | 620nm-630nm | Working Environment | Temperature | -10-60℃ |
Withe | 6500K | Humidity | 20-85% | ||
Blue | 465nm-470nm | Optional Accessory | Controller | Analog/Strobe | |
Green | 525nm-530nm | Digital | |||
IR | 850nm/940nm | Applications | 1. High reflective surface scratch inspection. 2. Chips and silicon wafers damage inspection 3. Mark point positioning. 4. Package bar code identification | ||
UV | 365nm/395nm | ||||
Warranty | One year warranty, Free samples and technical support | ||||
Line Up
| Item | Emitting surface | Selective color | Power/voltage (Red) | Power/voltage (W/G/B) |
|---|---|---|---|---|
| HC-COX15X-XW | 10*14mm | W/R/G/B | 24VDC/0.36W | 24VDC/0.36W |
| HC-COX20X | 20*20mm | W/R/G/B | 24VDC/0.48W | 24VDC/0.96W |
| HC-COX25X | 27*27mm | W/R/G/B | 24VDC/0.48W | 24VDC/0.96W |
| HC-COX30X | 33*34mm | W/R/G/B | 24VDC/0.96W | 24VDC/1.44W |
| HC-COX40X | 38*44mm | W/R/G/B | 24VDC/1.68W | 24VDC/1.92W |
| HC-COX60X | 63*63mm | W/R/G/B | 24VDC/2.16W | 24VDC/3.6W |
| HC-COX70X-AL | 74*70mm | W/R/G/B | 24VDC/2.88W | 24VDC/4.56W |
| HC-COX80X | 80*80mm | W/R/G/B | 24VDC/3.84W | 24VDC/4.56W |
| HC-COX120X | 120*120mm | W/R/G/B | 24VDC/12.96W | 24VDC/12.96W |
Introduction
Mstar does extremely rigorous testing and validation for the raw materials of Coaxial lighting. The material must be through long-term test (at least one-year stability test) before use. Mstar' Coaxial lighting using highligt LED particles which through the strict screening, thermal design, automatic welding, mirrors, and special custom spectroscope, to ensure consistency & stability of process, and ensure Consistency and uniformity of light. The installation of the product size, shape size and color can be customized according to customer requirements. Use the automatic welding process, to ensure product quality and reliability.
Dimension
HC-COX70X-AL
