Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 3.6V
- Lamp Power(W):
- 1.8
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Red
- Beam Angle(°):
- 360 Degree
- IP Rating:
- IP67
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- LED
- Light Source:
- LED
- Place of Origin:
- Hunan, China
- Brand Name:
- Yuansheng
- Intensity:
- 10cd
- Power Source:
- Solar
- Battery Type:
- NIMH/8AH
- Autonomy:
- 200 Hours
- ON&OFF Level:
- 70/100 Lux
- Dimensions:
- 215.5mm H,226mm Diameter
- Flashing rate:
- 20-60times/min(Default:30 Times/min)
- Visibility distance:
- 4KM
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 28X28X32 cm
- Single gross weight:
- 4.0 kg
- Package Type:
- Cartons

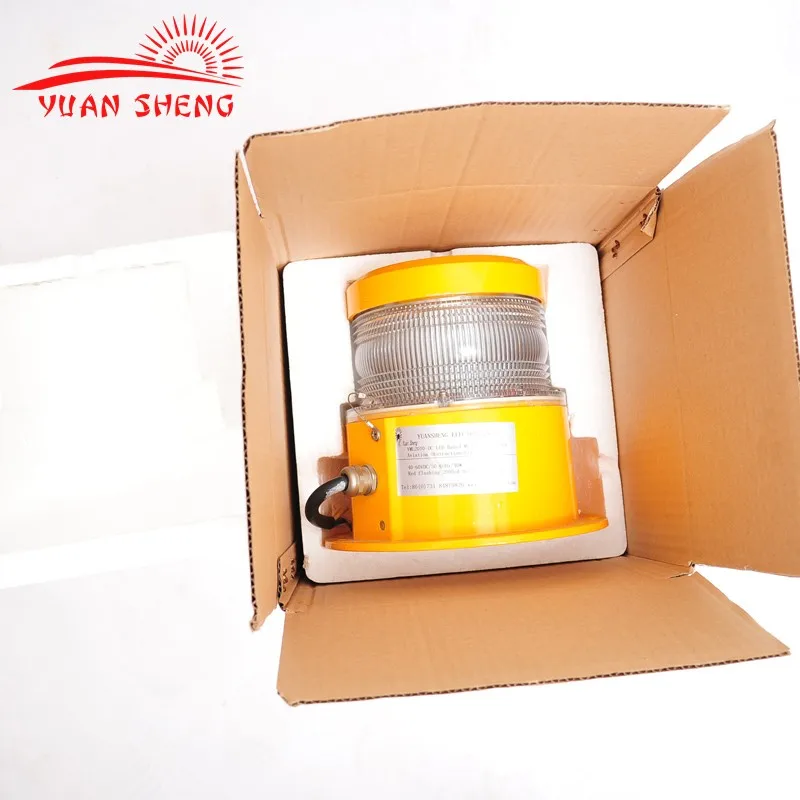

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
Description
| Parameter |
International standard | ICAOAnnex14, Volume 1, 4th Edition, July 2004 FAAAdvisoryCircularAC150/5370-2F
|
intensity | >10cd |
Nominal Night Range | >4km |
Available colors | Red, amber, green, blue, white |
Vertical degree | 10 ° |
Horizontal degree | 360 ° |
Light source | LED |
LED life | ≥100,000 hrs |
Autonomy | Flashing:200Hours/Steady:100Hours |
On/off level | 70/100 lux |
Flashing Pattern | 40FPM default(canbe preprogrammed to a specified flashing rate upon customer request) |
Solar module type | Multicrystalline |
Output | 1.8 Watts |
Battery type | High grade NiMH-Environment friendly |
Battery capacity | 3.6V/8 AH |
Integrated housing | UV resistance PC |
Waterproof | IP67 |
Weight | 3.6KG |
Ambient temperature | -40℃ ~ +70℃ |
Dimensions | 215.5mm H, 226mm Diameter |
Warranty | 5 years for light 2 years for NiMH battery |
Our solar LED aviation light has high efficiency and easy to installation.
