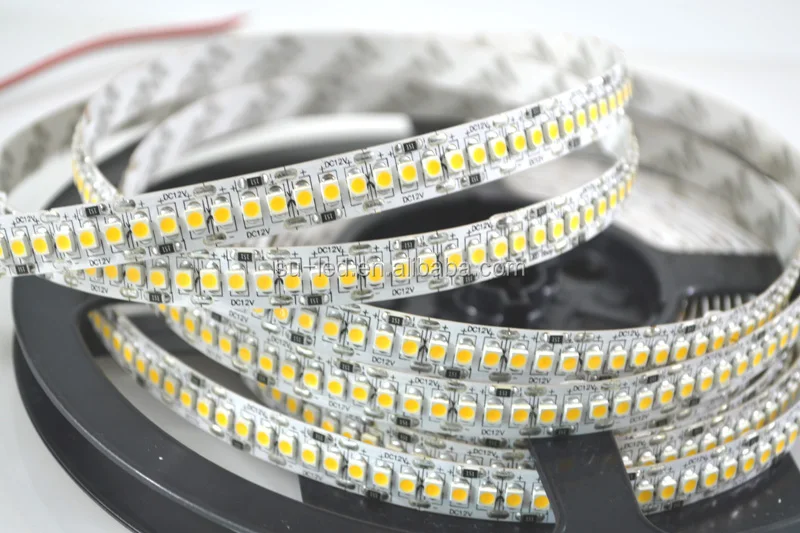

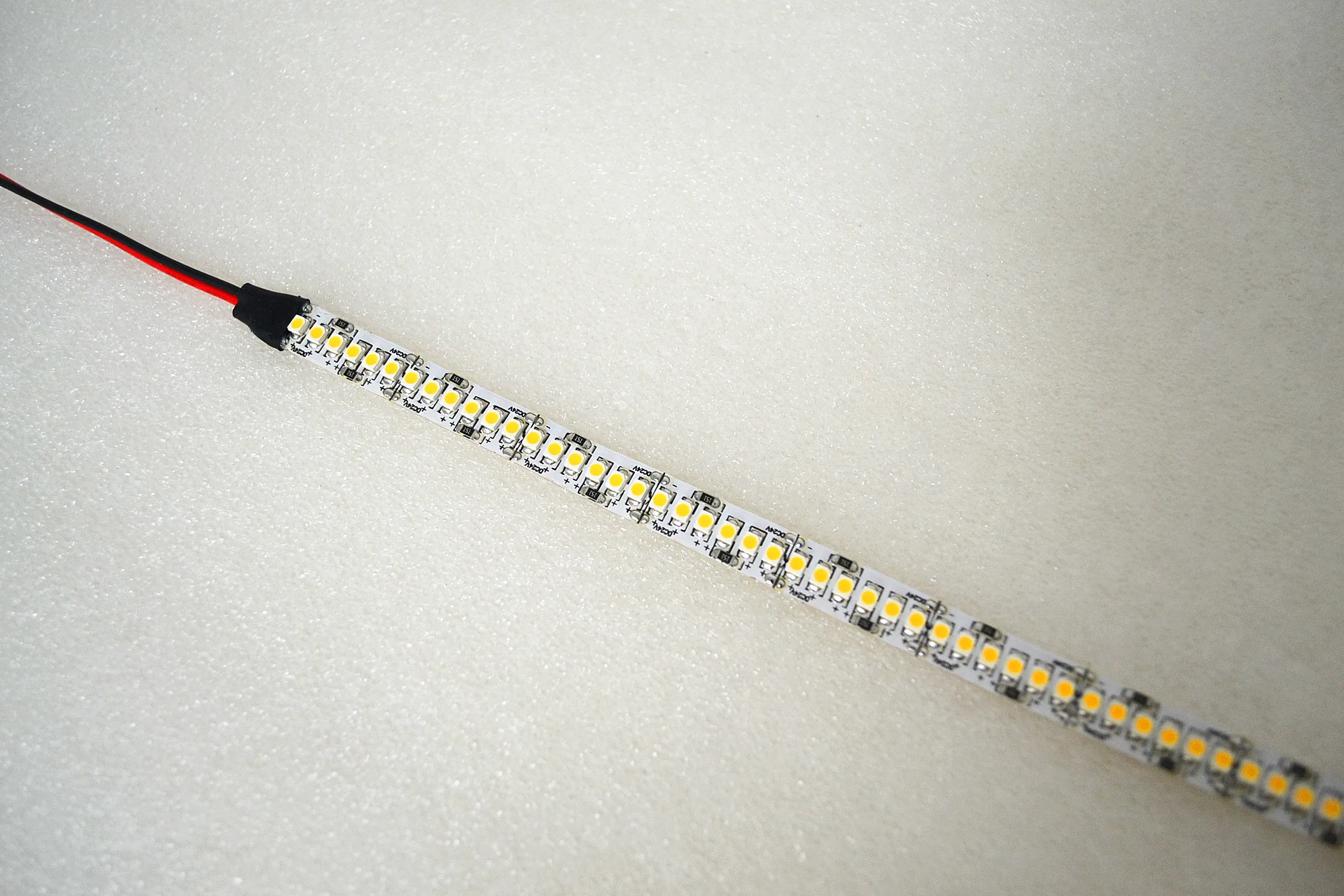

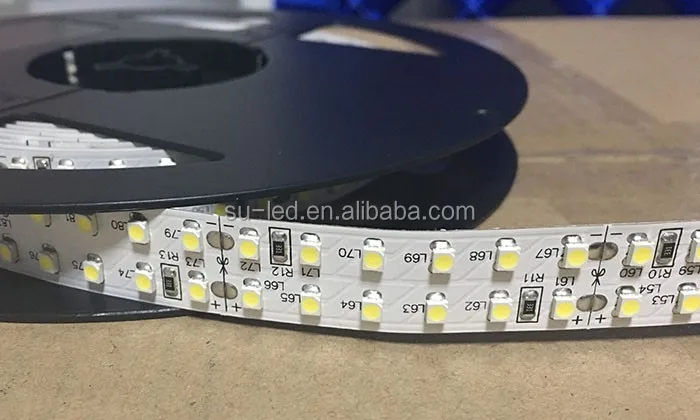

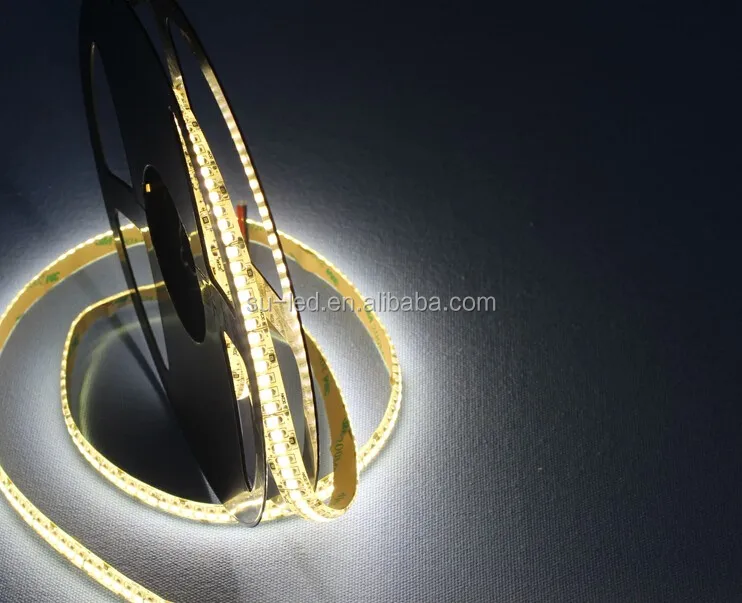

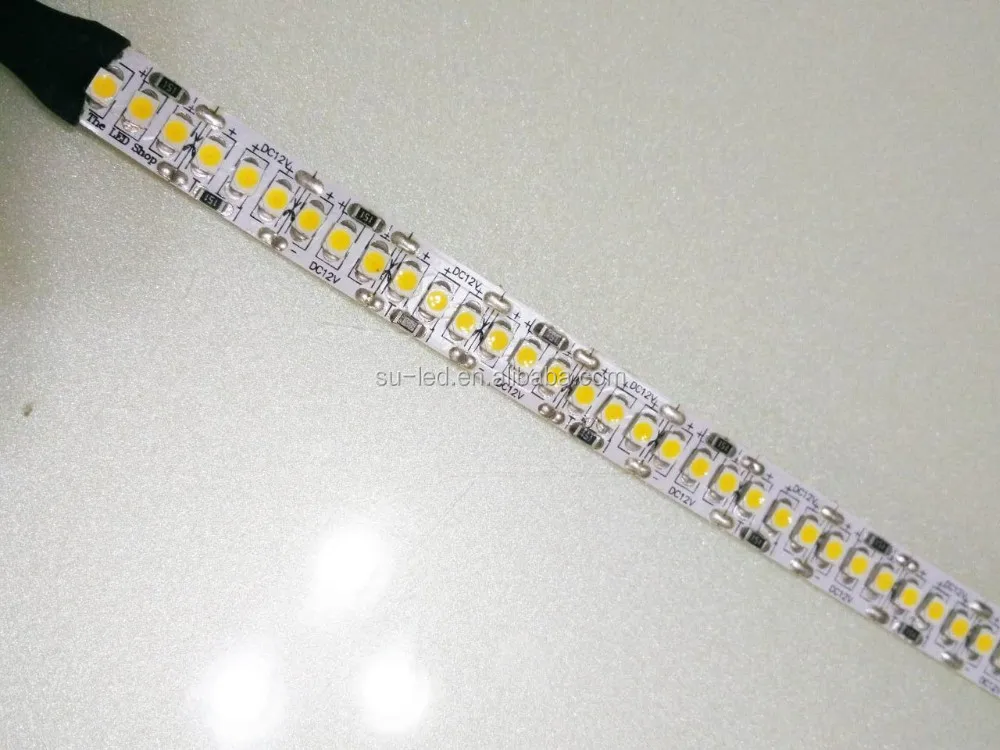

High Density 10mm width 240LEDs/m 3528 LED stripe 12V

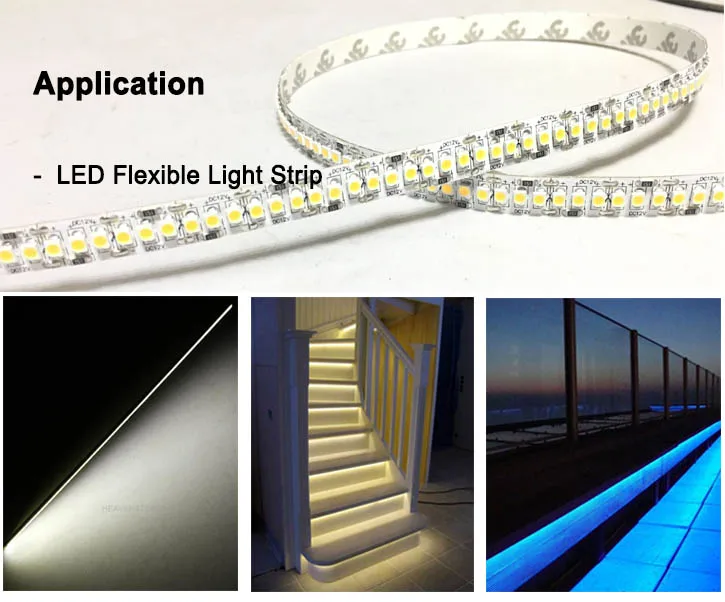

Applications:
♦ Widely used indoor such as room, office, KTV, Bar, wall edge, sink, conceal, ceiling, backlight for indoor lighting.
♦ Project lighting: outdoor landscape decorations.
♦ Commercial lighting: sign, advertisement, path, gallery.
Product specifications for 12V 24V SMD 3528 LED strip light 240PCS for rigid bar no light spots:
Model | Flexible LED Light Strip SU-FS3528WW-240PCS | SU-FS3528PW240S-12 | |||
Voltage | 12V DC | ||||
LED quantity | 240 PCS/m | ||||
LED type | SMD3528 San'an | ||||
Power consumption/m | <19.6W /m | ||||
Luminous flux/m | 960-1200lm/W | ||||
CCT | Warm White 3000K-3200K Nautral White 4000K-4500K Cold White 6000K-6500K | ||||
Color | White, White Cold, Pure White, Red, Blue, Yellow, Green, Pink | ||||
Size | (L)5000 x (W)10mm | ||||
Packing unit | 5 meters per roll | ||||
Material | FPC board + 3528 LEDs + Resistors | ||||
PCB board | White | ||||
Beam angle | 120 degree | ||||
Work temperature | -25 ~+40 degree | ||||
CRI | >75Ra | ||||
Certificate | CE ROHS EMC | ||||

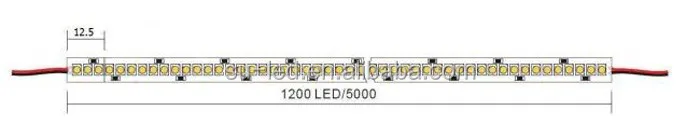

Wiring diagram:
Waterproof treatment:

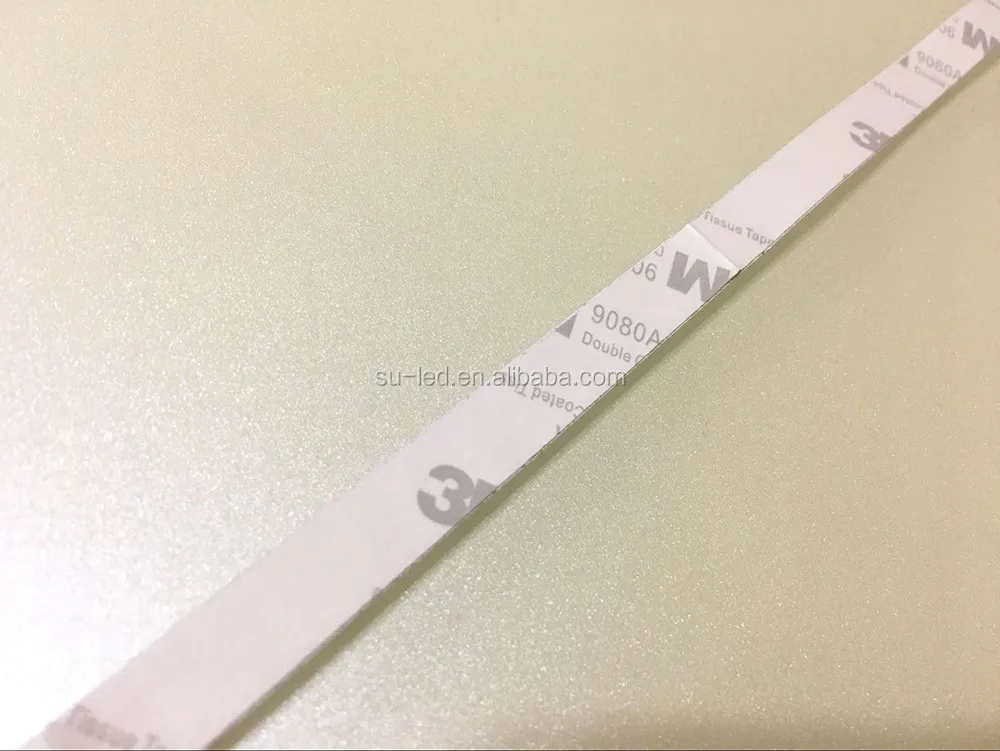

♦ IP20: LEDs exposed with 3M tape adhesive.

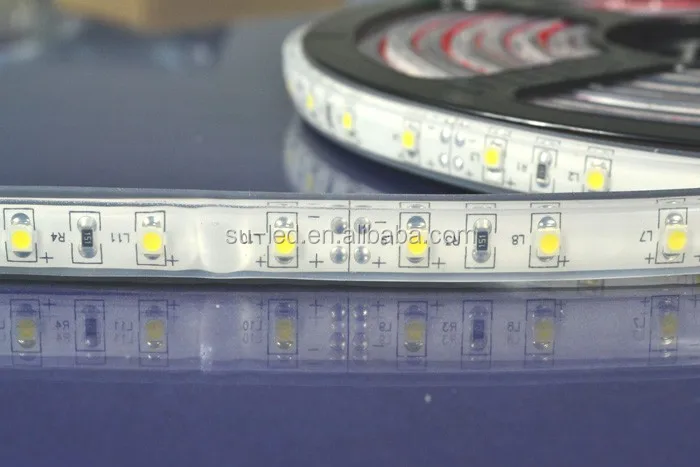

♦ IP65: LEDs coated by silicon glue/epoxy/PU on the surface of the PCB with 3M tape.
♦ IP67: LEDs covered by silicon tube with clamps.
♦ IP68: LEDs filled with glue/epoxy in silicon tube.
Various digital LED strips with UCS1903 and WS2812 IC:
Installation attentions:
♦ When bending, do not reach LEDs/resistors in case the circuit will be damaged, trying to be far aways 3-4mm.
♦ Not be bent repeatly to protect circuit copper board from breaking.
♦ When fixed, prevent (502) glue/hot melt adhesive (HMA) from LEDs to protect them not to be corrosive.
♦ On installation, please protect LEDs from being sctrached like tweezers etc.
♦ Using strips, not good to take out longer strip from reel and pile together as it will be easier to be crooked or tie a knot, leading to LEDs' breaking on pull.
1. What is the MOQ for this item?
Re: 5 rolls can be offered.
2. What is the input voltage I can get?
Re: It's DC12V.
3. How to ship the goods?
Re: There are various shipment methods for your choice. It tells you the delivery time.
4. Can you provide me adapters?
Re: Yes, we can provide adapters if required.
5. Does this cost include any taxes?
Re: This cost doesn't include any customs or import taxes.
6. Can I track my package?
Re: Yes, sure. A tracking number will be showed.
7. What is the quality of the item?
Re: The product is ensured to be good-working before sending out. It is high power factor >0.95.
8. How can I draw up the order?
Re: Please directly send us the order on line. The lead time is 5-10 days. We will send it out as soon as possible.
