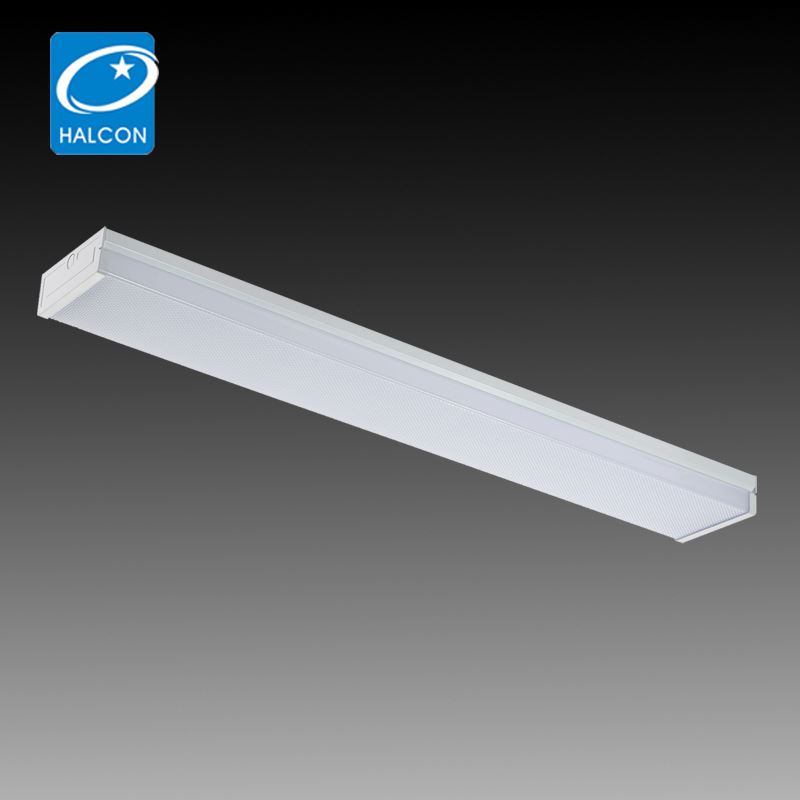

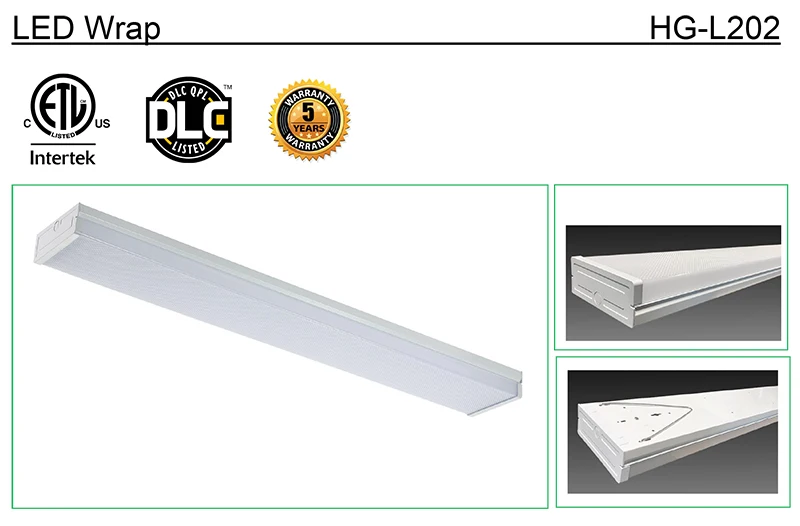

LED twin batten
Application:
Commercial LED Batten Light fittings are perfect for general illumination for use in Offices, Task Lighting, Store Displays, Warehouse Illumination and much more.

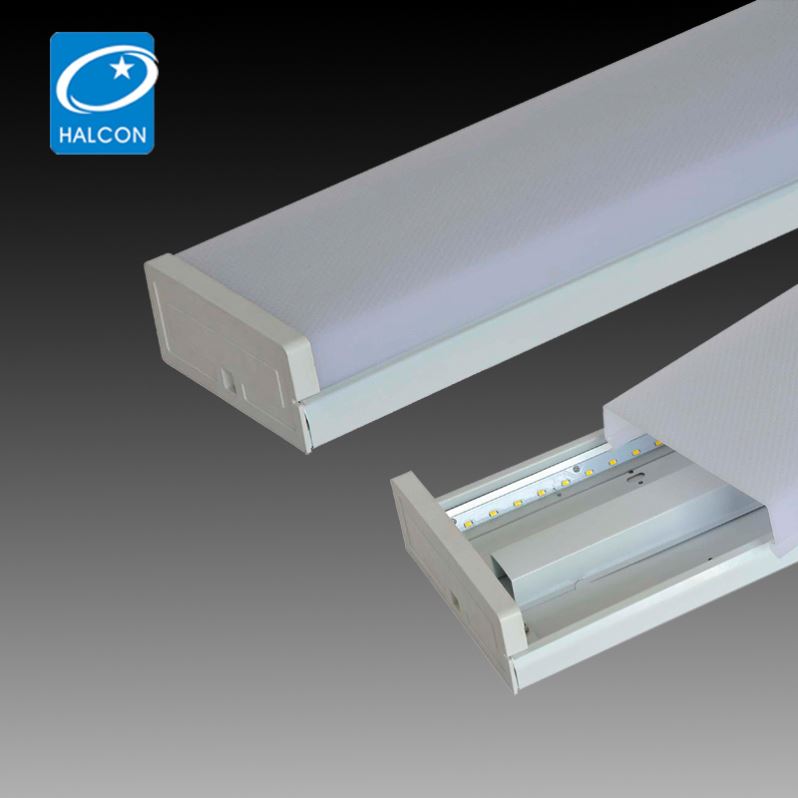

CONSTRUCTION
*Die formed of 0.6mm cold-rolled steel body
*All steel surface are painted after fabrication with high
gloss backed white matte powder painted.
*Extruded opal prismatic material with UV protection
*End Caps:white PC material
ELECTRICAL
*All electrical components are UL approved, Input Voltage from 120-277V
*Branded SMD2835 LED chips
*LED Driver: UL/CUL 120-277V 0-10V LED Driver
*5 years warranty
LABELS
*ETL Listed, approved for dry/damp location unless otherwise noted
OPTIONS
*Available for dimmable version
*Available for emergency version
*Available for installing with sensor
PRODUCT DISCRIPTION
* ETL & DLC listed; With LM79 & LM80;
* High luminous efficacy 110 lm/w;
* 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
* PF>0.90
* driver efficiency>87%;THD<20%;
* Installation: Recessed or Suspended
* Suitable for dry/damp location
* Designed for office, conference room etc.
* CCT: 3000K-5500K
* Lifetime: 5 years
Model No | L | W | H | WATTAGE | Efficiency |
HG-L202/DM-X | 1188mm | 175mm | 70mm | 40W | 110lm/w |
Item Number | HG-L202/DM-X |
Total Input Watt | 40W |
Size | 4FT |
Calculated L70 | 50000hrs |
Delivered Lumens | 4400LM |
Luminaire Efficacy Rating | 110lm/w |
Correlated Color Temperature | 3000-5500k |
Color Rendering Index | >80 |
Model No | Size | Master Carton Size | Qty/Carton | Weight |
|
| (LxWxH) |
| (KG)/(LBS) |
HG-L202/DM-X | 4FT | 48.62"X13.58"X10.04" | 5 | 17.5KG/38.58lbs |
Trade Terms: FOB Zhongshan
Shipping:By sea/by air/by DHL,Fedex,UPS and so on
Ports: Zhongshan, Shenzhen, Yantian, Shekou, Guangzhou
Payment terms:T/T /L/C at sight
Sample: availiable
Production capacity:3000pcs/day
MOQ:100PCS
Sampe lead time:7-10 working days after receipt of payment
Delevery time:30-35 working days after receipt of deposit
Packing:Export carton with foam
Model No | Size | Master Carton Size | Qty/Carton | Weight |
|
| (LxWxH) |
| (KG)/(LBS) |
HG-L202/DM-X | 4FT | 48.62"X13.58"X10.04" | 5 | 17.5KG/38.58lbs |
Remarks:
Halcon’s business principle: honesty, efficiency, sincerity
Advantage: designer with over 5 years’ experience + strict control on quality +
direct factory price + excellent communication group
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-7 days, mass production time needs 4-5 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Mass order 100pcs, 1pc for sample checking is available
Q4. How do you ship the samples and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
