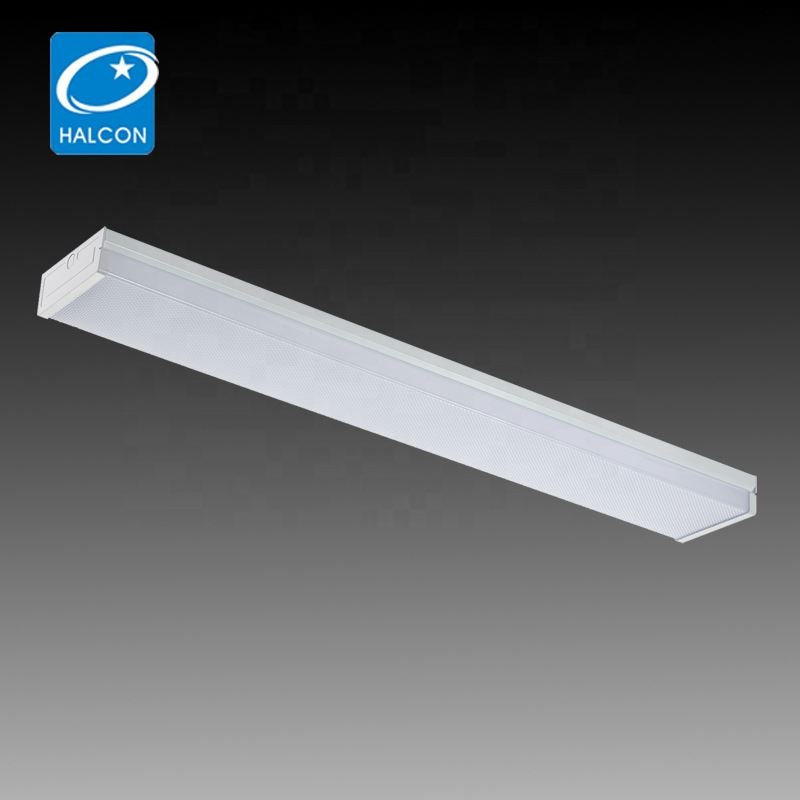

Low Profile 4FT Industrial LED Surface Mounted Batten Light For Office Garage And Workshop

Click on the image to view the original image

Product：	views：3Low Profile 4FT Industrial LED Surface Mounted Batten Light For Office Garage And Workshop
Branch：	OEM
Size：	123X22X10 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:02

Product Details

Overview

Quick Details

Item Type:: Ceiling Lights

Light Source:: LED

Install Style:: Surface Mounted

Input Voltage(V):: 120-277

Lamp Luminous Flux(lm):: 4400

CRI (Ra>):: 80

Working Temperature(℃):: -25 - 45

Working Lifetime(Hour):: 5000

Lamp Body Material:: Iron

IP Rating:: IP20

Certification:: CE, ETL

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: HG-L202

Application:: Residential

Base Material:: Iron

Cover Material:: Plastic

LED Light Source:: SMD2835

Luminous Efficiency(lm/w):: 110

Size:: 4ft

Material:: Iron

Lens:: PC

Wattage:: 40W

Light source:: SMD2835

CCT:: 3000k/4000k/5000k/6000k

Voltage:: AC120V-277V50/60Hz

Warranty:: 5 years

Packaging & Delivery

Selling Units:: Single item

Single package size:: 123X22X10 cm

Single gross weight:: 4.0 kg

Package Type:: CARTON

Lead Time:

Quantity(Piece)	1 - 2	3 - 500	501 - 1000	>1000
Est. Time(days)	13	30	35	To be negotiated

LED twin batten

Product Description

Application:

Commercial LED Batten Light fittings are perfect for general illumination for use in Offices, Task Lighting, Store Displays, Warehouse Illumination and much more.

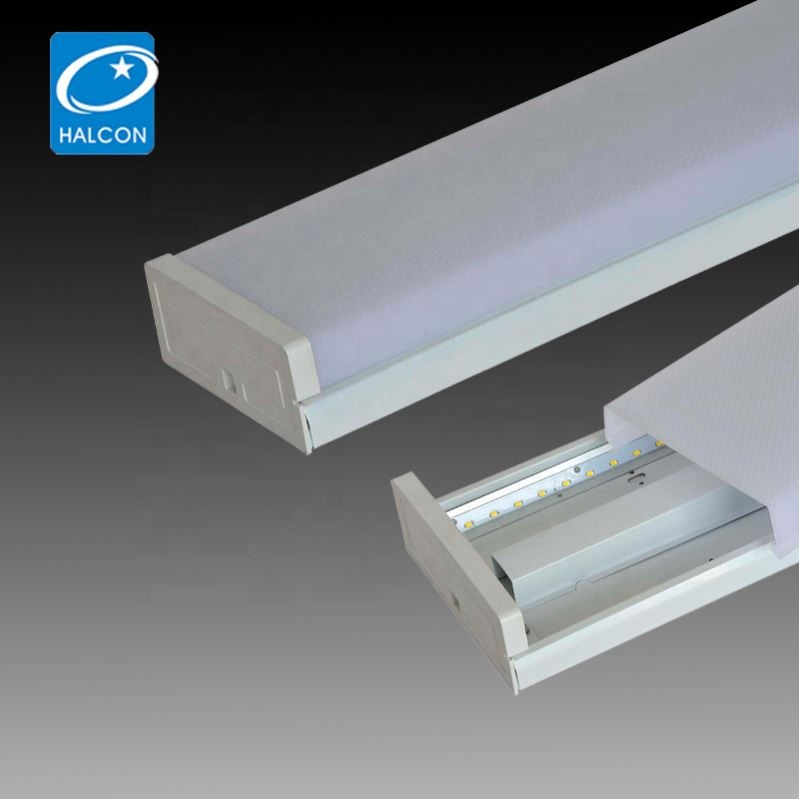

CONSTRUCTION

*Die formed of 0.6mm cold-rolled steel body

*All steel surface are painted after fabrication with high

gloss backed white matte powder painted.

*Extruded opal prismatic material with UV protection

*End Caps:white PC material

ELECTRICAL

*All electrical components are UL approved, Input Voltage from 120-277V

*Branded SMD2835 LED chips

*LED Driver: UL/CUL 120-277V 0-10V LED Driver

*5 years warranty

LABELS

*ETL Listed, approved for dry/damp location unless otherwise noted

OPTIONS

*Available for dimmable version

*Available for emergency version

*Available for installing with sensor

PRODUCT DISCRIPTION

* ETL & DLC listed; With LM79 & LM80;

* High luminous efficacy 110 lm/w;

* 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.

* PF>0.90

* driver efficiency>87%;THD<20%;

* Installation: Recessed or Suspended

* Suitable for dry/damp location

* Designed for office, conference room etc.

* CCT: 3000K-5500K

* Lifetime: 5 years

Model No	L	W	H	WATTAGE	Efficiency
HG-L202/DM-X	1188mm	175mm	70mm	40W	110lm/w

Item Number	HG-L202/DM-X
Total Input Watt	40W
Size	4FT
Calculated L70	50000hrs
Delivered Lumens	4400LM
Luminaire Efficacy Rating	110lm/w
Correlated Color Temperature	3000-5500k
Color Rendering Index	>80
