Home > Products > IP20 0-10V Dimming 5000K 63W Supermarket 8Ft Led Strip Batten Light

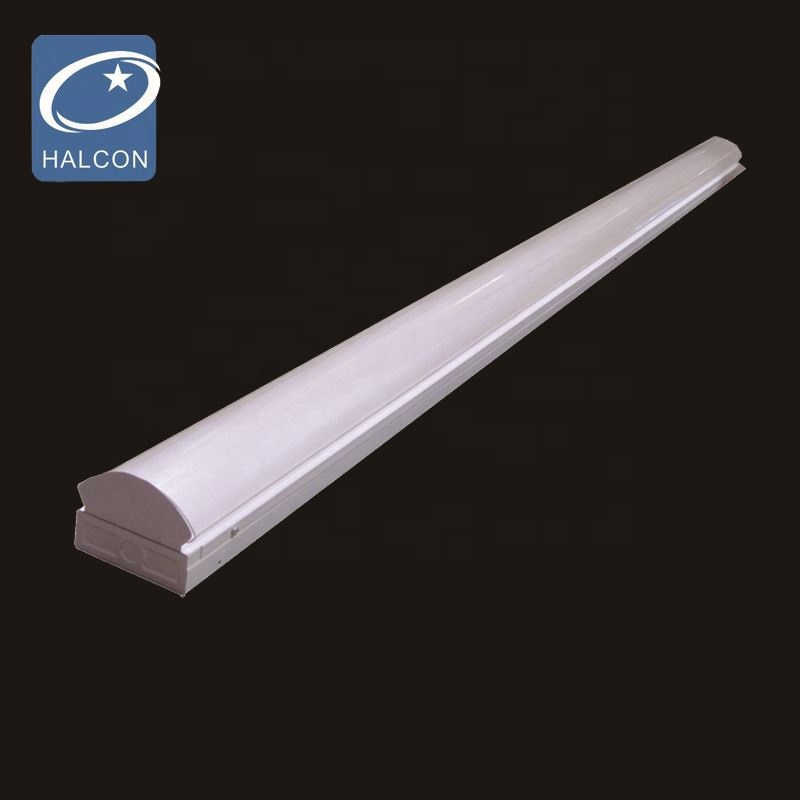

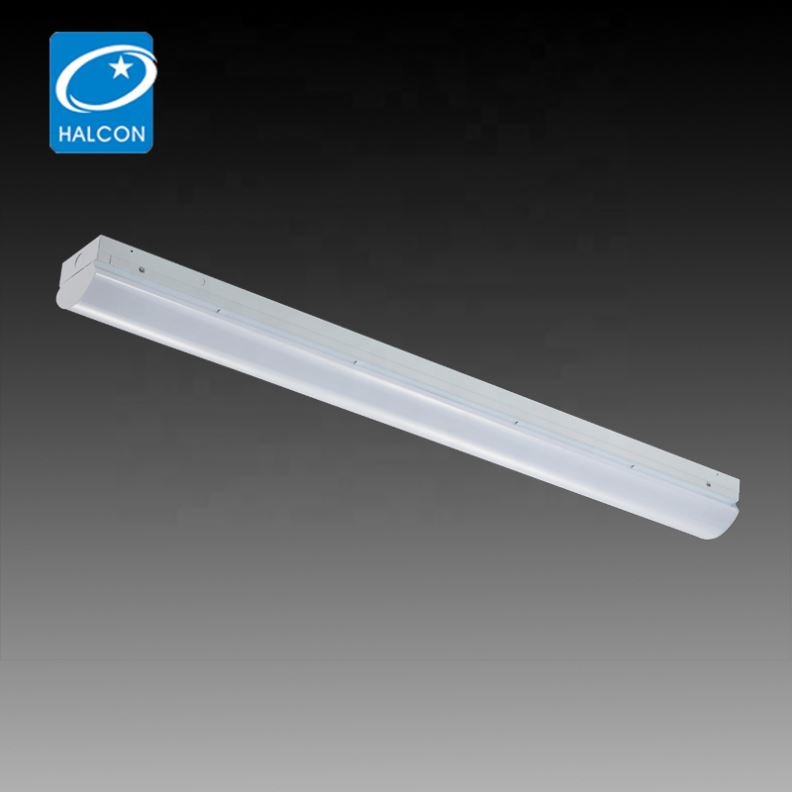

IP20 0-10V Dimming 5000K 63W Supermarket 8Ft Led Strip Batten Light

Click on the image to view the original image

Product：	views：5IP20 0-10V Dimming 5000K 63W Supermarket 8Ft Led Strip Batten Light
Branch：	OEM
Size：	124X12X13 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:03

Product Details

Overview

Quick Details

Warranty(Years):: 5

Input Voltage(V):: 120-277V

Lamp Luminous Efficiency(lm/w):: 130, 130

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 55

Working Lifetime(Hour):: 50000

Lamp Body Material:: Iron

IP Rating:: IP20

Certification:: C-tick, CE, EMC, ETL, GOST

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: HG-L206

Application:: Residential

Light Source:: LED

sensor and emergency kits:: available

LED Light Source:: SMD2835

Product Name:: LED batten

Size:: 4ft

Material:: Iron

Lens:: PC

Wattage:: 40W

Warranty:: 5 years

CCT:: 3000k/4000k/5000k/6000k

Packaging & Delivery

Selling Units:: Single item

Single package size:: 124X12X13 cm

Single gross weight:: 4.0 kg

Package Type:: carton

Lead Time:

Quantity(Piece)	1 - 2	3 - 500	501 - 1000	>1000
Est. Time(days)	14	30	35	To be negotiated

LED twin batten

Product Description

Application:

Commercial LED Batten Light fittings are perfect for general illumination for use in Offices, Task Lighting, Store Displays, Warehouse Illumination and much more.

Model No	A	B	C	WATTAGE	Efficiency
HG-L206-XXX	618mm	115mm	90mm	18W	110lm/w
HG-L206/DM-XEE	1206mm	115mm	90mm	24W	110lm/w
HG-L206/DM-XE	1206mm	115mm	90mm	40W	110lm/w
HG-L206/DM-XY	2438mm	115mm	90mm	63W	110lm/w
HG-L206/DM-XXE	2438mm	115mm	90mm	85W	110lm/w
HG-L206/DM-XE-2	1206mm	115mm	90mm	36W	130lm/w
HG-L206/DM-XY-2	2438mm	115mm	90mm	63W	130lm/w
HG-L206/DM-XXE-2	2438mm	115mm	90mm	85W	130lm/w

PRODUCT DISCRIPTION

* ETL & DLC listed; With LM79 & LM80;

* High luminous efficacy 110 lm/w or 130lm/w;

* 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.

* PF>0.90

* driver efficiency>87%;THD<20%;

* Installation: Recessed or Suspended

* Suitable for dry/damp location

* Designed for office, conference room etc.

* CCT: 3000K-6000K

* Lifetime: 5 years

TECHNICAL DATA

Item Number	HG-L206-XXX	HG-L206/DM-XEE	HG-L206/DM-XE	HG-L206/DM-XY	HG-L206/DM-XXE	HG-L206/DM-XE-2	HG-L206/DM-XY-2	HG-L206/DM-XXE-2
Total Input Watt	18W	24W	40W	63W	85W	36W	63W	85W
Size	2FT	4FT	4FT	8FT	8FT	4FT	8FT	8FT
Calculated L70	50,000 hrs
Delivered Lumens	1980LM	2640LM	4400LM	6930LM	9350LM	4680LM	8190LM	11050LM
Luminaire Efficacy Rating	110LM/W					130LM/W
Correlated Color Temperature	3000K-6000K
Color Rendering Index	>80
