Overview
Quick Details
- Warranty(Years):
- 5
- Input Voltage(V):
- 120-277V
- Lamp Luminous Efficiency(lm/w):
- 110
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 55
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Iron
- IP Rating:
- IP20
- Certification:
- CE, C-tick, EMC, ETL, GOST, LVD, RoHS, SAA, VDE
- Place of Origin:
- Guangdong, China
- Brand Name:
- OEM
- Model Number:
- HG-L201
- Application:
- Classroom office supermarket
- Light Source:
- LED
- Color Temperature(CCT):
- Cool White
- LED Light Source:
- SMD2835
- Lamp Luminous Flux(lm):
- 4400
- Size:
- 4ft
- Material:
- Iron
- Lens:
- PC
- Light source:
- SMD2835
- CCT:
- 3000k/4000k/5000k/6000k
- Voltage:
- AC120V-277V50/60Hz
- Warranty:
- 5 years
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 123.5X39X23 cm
- Gross weight per batch:
- 20.0 kg
- Package Type:
- Stanadard Brown Carton Package.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 501 - 2500 2501 - 5000 >5000 Est. Time(days) 15 15 15 To be negotiated
SPECIFICIATON

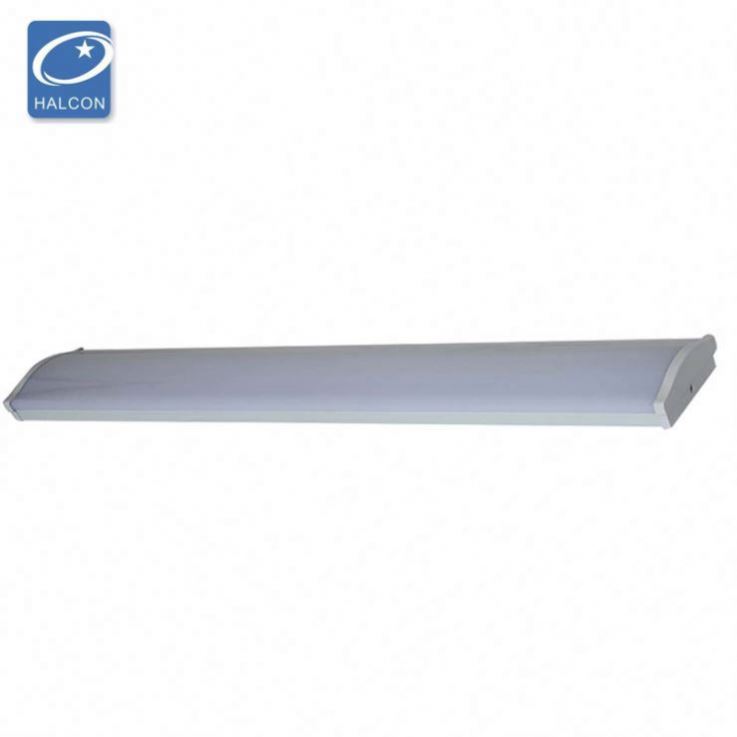

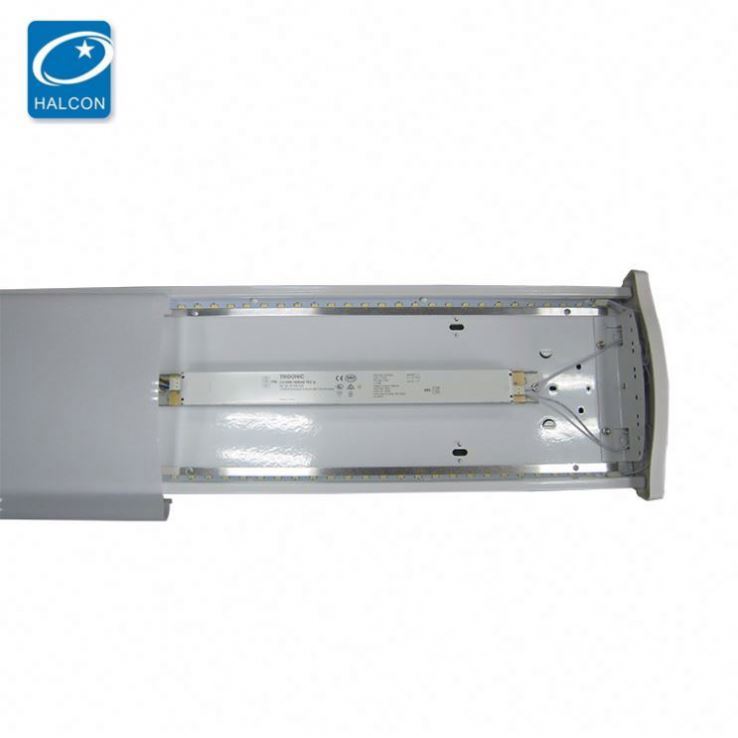

Housing: 0.5mm pressed & folded sheet steel with epoxy powder coated finish.
Diffuser: extruded opal polycarbonate material with UV .
Driver Cover: 0.4mm pressed & folded sheet steel with epoxy powder coated finish.
ELECTRICAL COMPONENTS:
LED Driver for 120-277V/60Hz, 347V/60Hz, 240V/50Hz.
Ideal or WAGO UL/CUL approved quick disconnector
VDE approved Terminal block
OPTIONS:
Available for installing with dimmable & emergency kits.
Available for installing with sensor
Available for hanging
APPLICATION:
Shops
School
Office
Hotel
Conference Room
Hospital
CERTIFICATE:
CE , UL/CUL
| MODEL | WATTS | LUMEN | LED QTY | LED TYPE | LAMP SIZE | PACKAGE SIZE | PCS /CTN |
| HG-L201-25W | 25W | 1500 | 60 pcs | 5630 | 600x208x70mm | 670x395x235mm | 5 |
| HG-L201-65W | 65W | 3905 | 120 pcs | 5630 | 1200x208x70mm | 1225x395x235mm | 5 |
| HG-L201-80W | 80W | 4800 | 160 pcs | 5630 | 1500x208x70mm | 1525x395x235mm | 5 |
