1600w Led Heat Sink Simulation module & Simulation Results
Led heat sink fundamental specification
Simulation model :
8 heatpipe module, D 8mm heat pipe
AL fin thickness：0.8mm 99fins
environment temperature：25 °C
fan : 8038 FAN
LED heat source：1600w

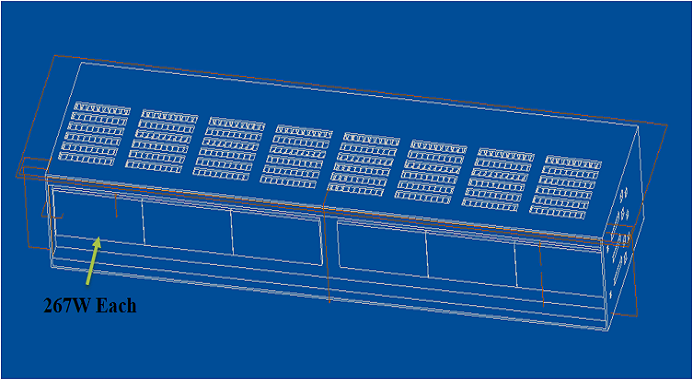

Led heat sink design (3D) model

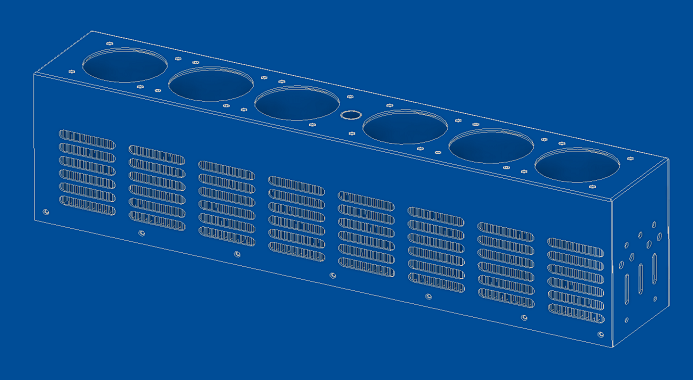

Led heat sink design (3D) model
Led heat sink thermal analysis
Simulated temperature 35℃
Natural convection
Led heat sink thermal analysis
Environment temperature 25 degrees
Surface temperature profile of heat dissipation module: max 73.1C
Thermal analysis
Environment temperature 25 degrees
Surface temperature profile of heat dissipation module: max 73.1C
Result:
Simulated temperature :25 ℃

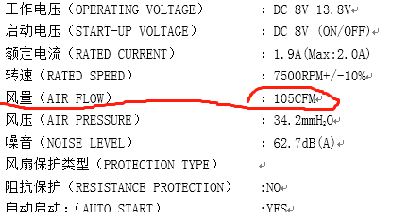

Fan size: 8038 FAN 105CFM 34.2mmH2O
Led heat sink heat source：1600w (Six heating sources）
Maximum surface temperature of heat sink：73.1C
