The new model is fresh out of the oven. It is available in conventional sizes 23.8 inch, 27 inch, 32 inch. Other sizes are available. We also provide customization services to customize the size and model you want, and can quickly draw 3D drawings and quickly produce samples for you.

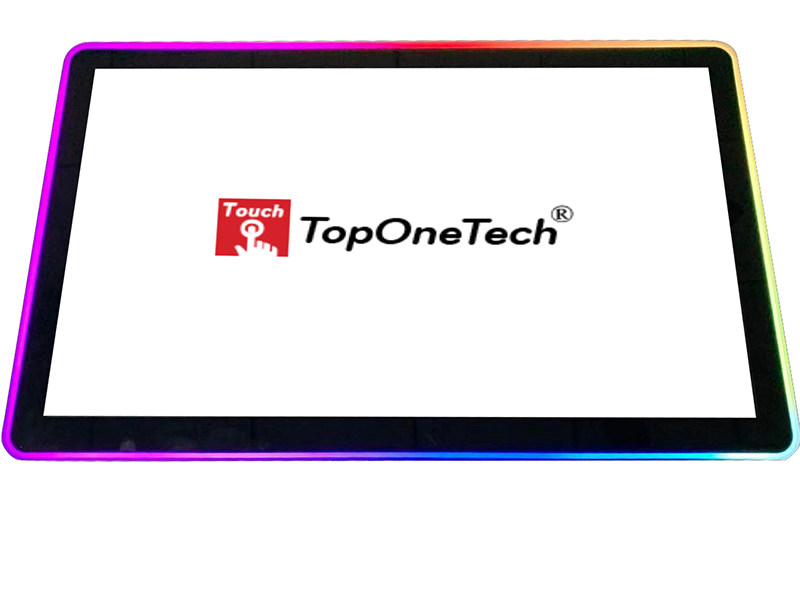

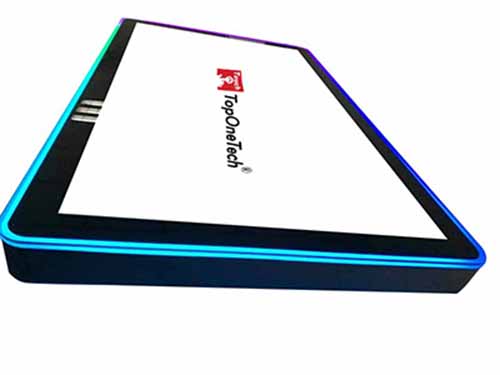

Top One Tech’s this new model open frame monitor with touch have a long-lasting product cycle because the enclosure is controlled by Top One Tech’s specifications. Future panel improvements are therefore possible without external changes. It integrate with the Top One Tech’s PCAP technology touchscreen.
Anti-glare LCD Panel
IP rated front panel
IP65
Screen diagonal (Inch/cm):
27/68.58
Display active screen size:
59.76x33.61
Aspect ratio:
16:09
Physical resolution:
1920×1080
Maximum showable
1920×1200
resolution (TPCs: external):
Colours displayed:
16.7M
Brightness (cd/m2):
300
Contrast:
3000:01:00
Visual Angle
178/178(°)
horizontal/vertical :
Touch Panel
Touch Technology
Projected Capacitive
10-point Multitouch
Touch Connector
USB or RS232
Touch Panel Drivers
Windows; Linux; Mac;
Android
External Connectors
Video
1x VGA
1x HDMI
Audio
1x PC-Audio
1x Earphone-Out
Touch Connector
1x USB 1x RS232
Connectors
1x 12V DC-IN
