Simulation module & Simulation Results
Fundamental Specification
Simulation model :

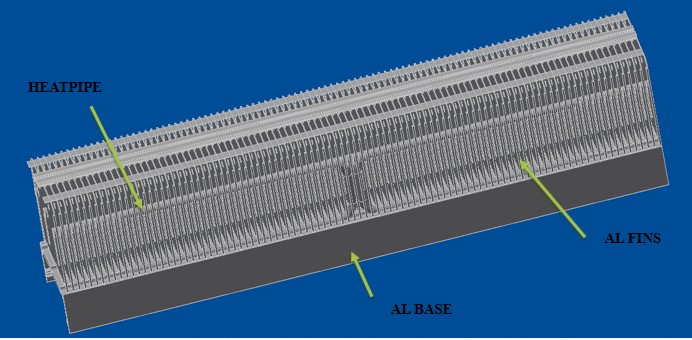

Customer supplied 3d model

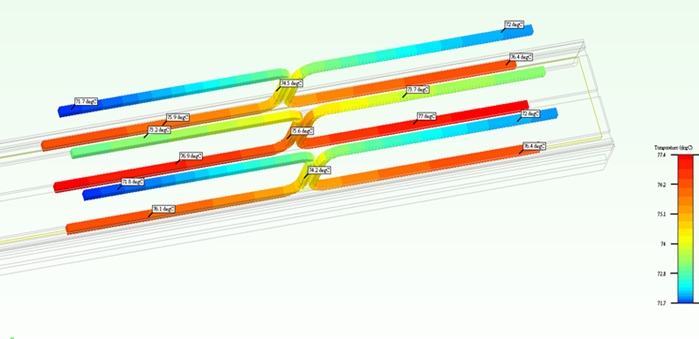

8mm Heat pipe 6 pcs
Al fins, 100fins , thickness 0.8mm
fin size 103x100x0.8mm
simulated temperature：35c
Natural convection
LED heat source：300w
Heat sink design (3D) model
Simulated test with 3D
72W heat source

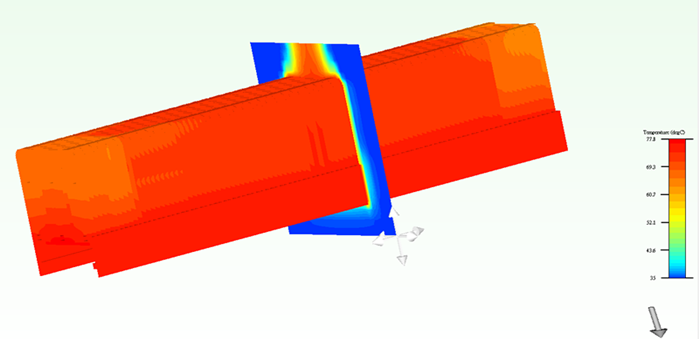

Thermal analysis
Simulated temperature 35℃
Natural convection
Thermal analysis
Simulated temperature 35℃

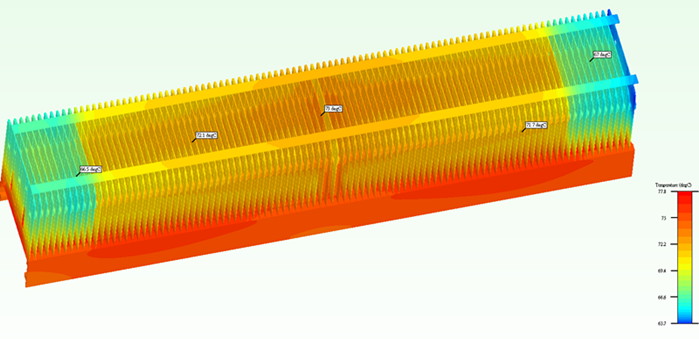

Maximum surface temperature of the heating source :max 77.8C
Thermal analysis
Simulated temperature 35 ℃
Maximum surface temperature of the heating source :max 77.8C
Result:
simulated temperature :35 ℃
Natural convection
LED heat source : 300W
Maximum surface temperature of the heating source : 77.8C
simulated temperature：35

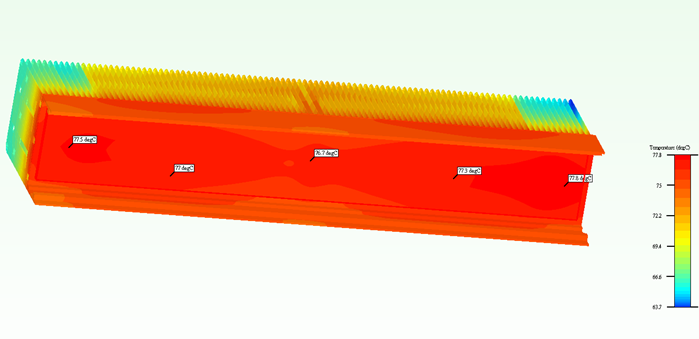

Temperature distribution of heating element (for reference only)
