Simulation module & Simulation Results
Fundamental Specification
Simulation model :
Water cooling plate size :998*132*12.5 mm∧3
net weight：2.7kg
environment temperature：35 °C
fluid：50%water and 50% glycol
Simulated test conditions：
rate of flow : 2.67 LPM
Inlet water temperature：25 °C
Temperature difference between inlet and outlet water : 3 °C
Inlet and outlet pressure difference：1.45 kpa （FYI）
total heat source：340 W
Result:
fluid：50%water and 50% glycol
total heat source：340w (170W+170W)
rate of flow：2.67 LPM
Inlet and outlet pressure difference：1.45 kpa (FYI)
Inlet water temperature：25 °C
outlet water temperature：28 °C
Rise of outlet water temperature：3 °C
Maximum temperature of water cooler：29.3 °C rise 4.3 °C
1. The water temperature at the outlet has just reached the required limit
2. It can increase water flow and lower the temperature of bottom outlet fluid。

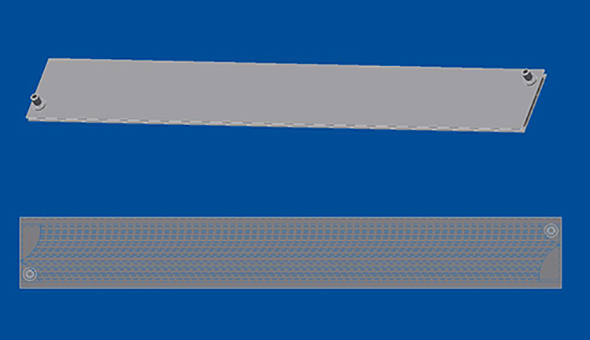

Design 3D
Model water cooler

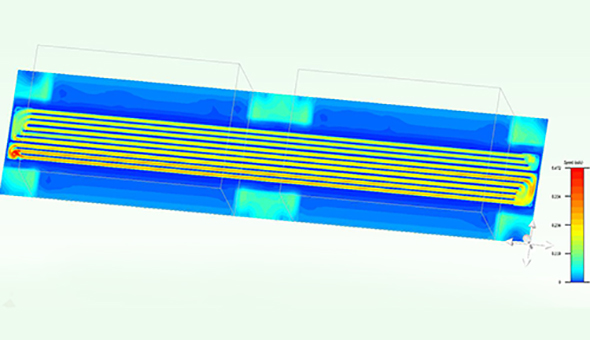

Water passages diagram

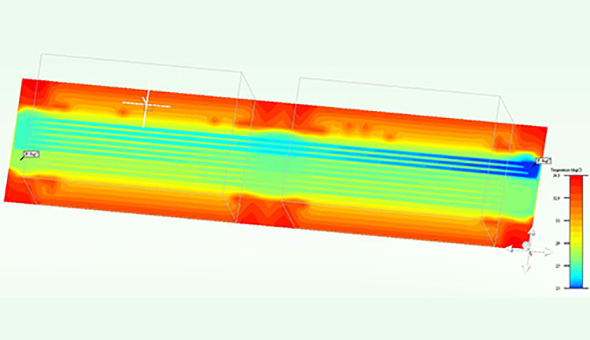

Water passages temperature profile
Thermal analysis
rate of flow :2.67LPM
inlet water : 25 °C

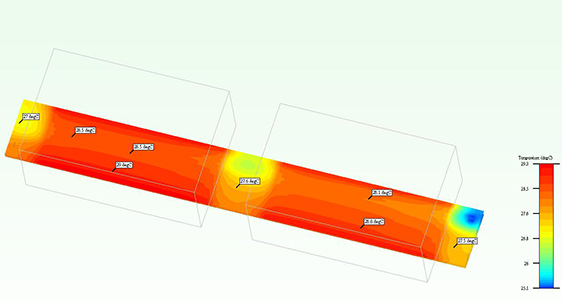

Maximum surface temperature of water cooler 29.3 C (Is equal to the maximum temperature of the heating source contact water cooling panel） max
Thermal analysis
rate of flow :2.67 LPM
inlet water : 25 °C

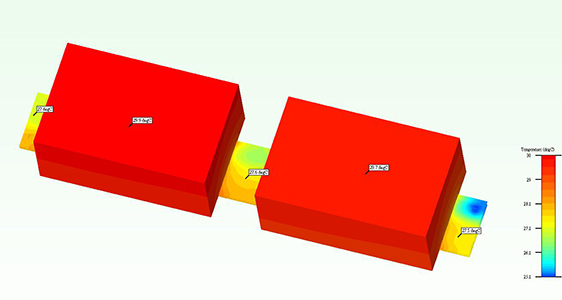

Heat source temperature distribution ( FYI )
Thermal analysis
rate of flow :2.67 LPM
inlet water : 25 °C

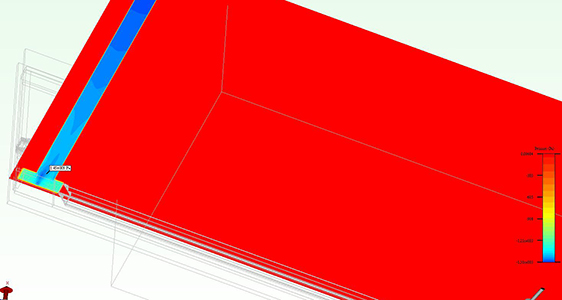

Export pressure (pressure difference between import and export) 1.45 Kpa( FYI）
