Simulation module & Simulation Results
Fundamental Specification

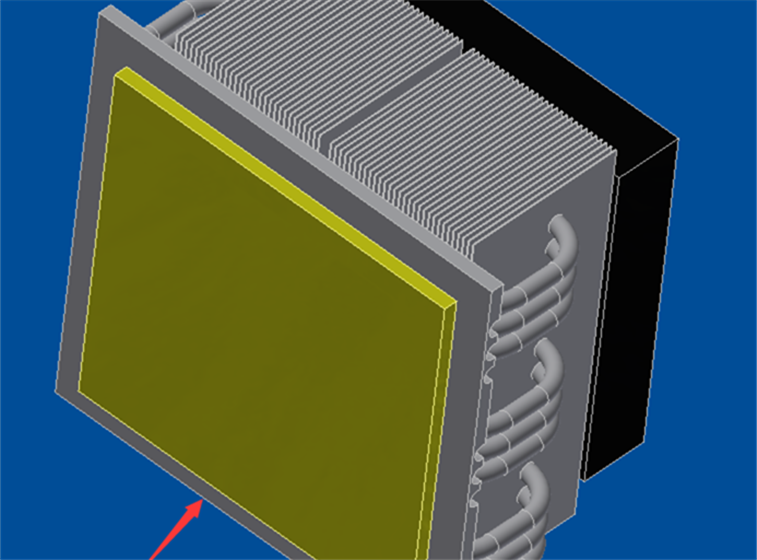

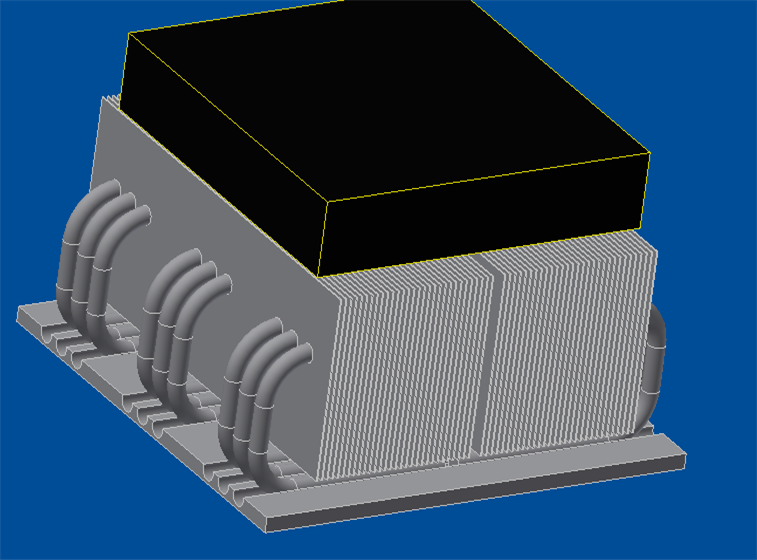

Simulation model :
6mm heat pipe x18
AL fin ：0.4mm x 60 fins
heatsink size：156x150x70mm

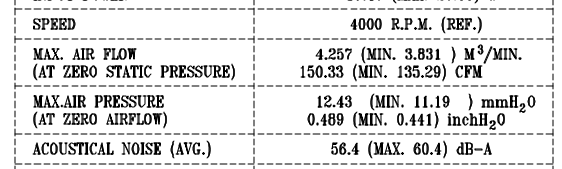

Fan specification (for self-selection reference) : 1 fan, the way of blowing in the radiator, the rotating speed is 3300 turns.
air flow:150.33 CFM
wind pressure :0.489 inchH2O
simulated temperature：35度
heat source：560w
Result:
simulated temperature 25 ℃
560W
air flow:150.33 CFM
wind pressure :0.489 inchH2O
The maximum surface temperature of the heating source : 65.5C
Reach the required temperature limit .
LORI DESIGN SOLUTION
560W heat source
Thermal analysis
Simulated temperature 25 ℃

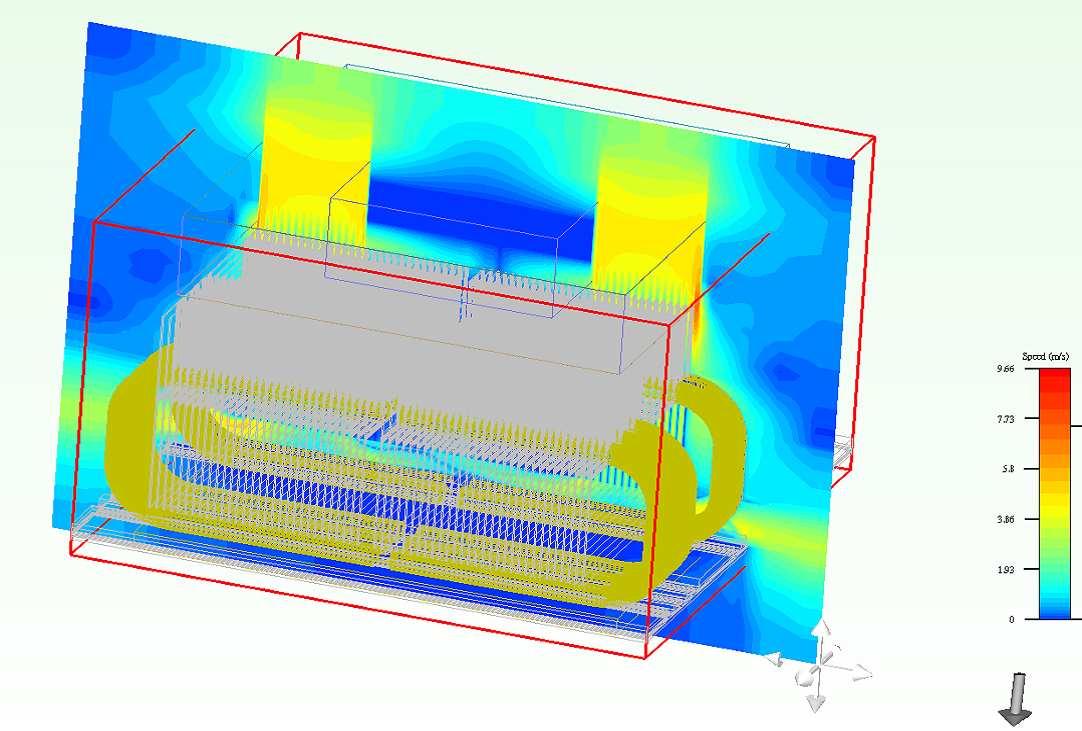

Wind direction
Thermal analysis
Simulated temperature 25 ℃

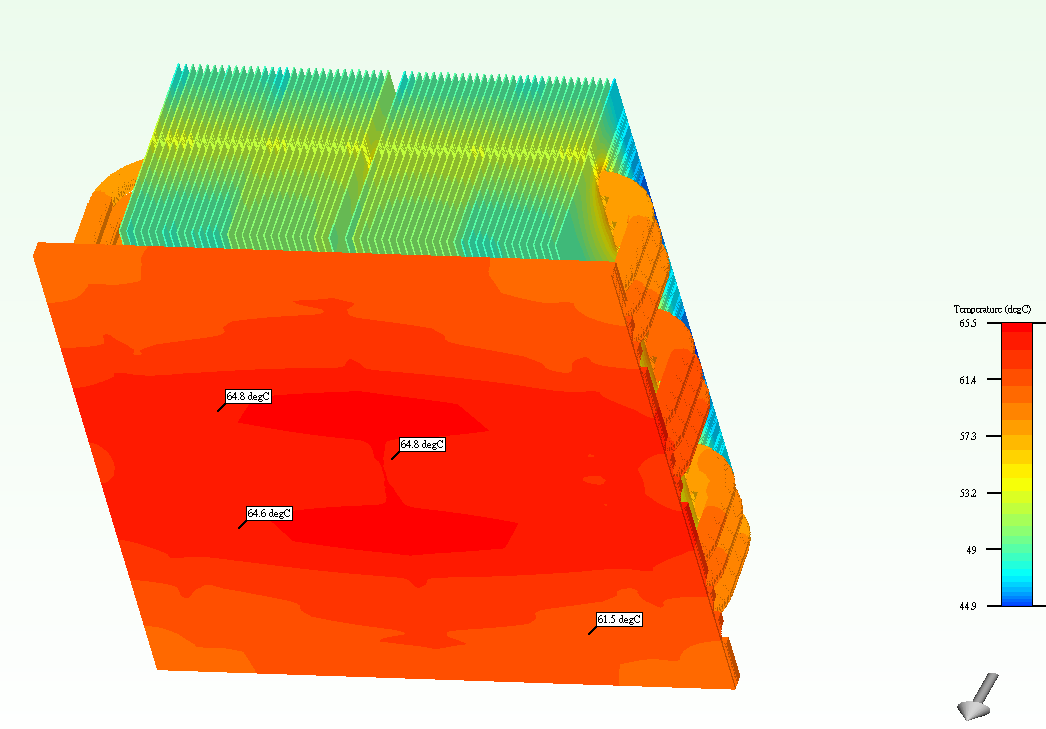

Heat dissipation module surface temperature distribution map : max 65.5C
Thermal analysis
Simulated temperature 25 ℃
Heat dissipation module surface temperature distribution map : max 65.5C
Thermal analysis
Simulated temperature 25 ℃

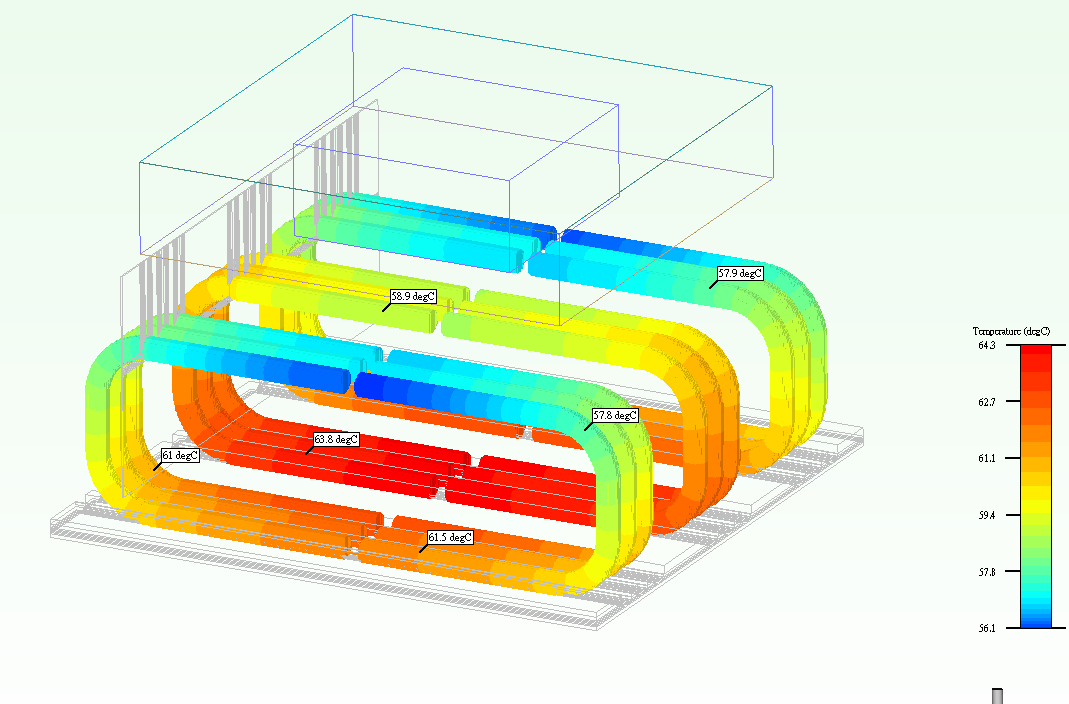

Heat pipe temperature profile is for reference only
