Simulation module & Simulation Results
Fundamental Specification
Simulation model :
fsw water cooling ,600w the second solution
Water cooling plate size:616X146X24mm
Material ：AL
environment temperature：35 ℃ (assumption)
fluid：deionized water
rate of flow：10 LPM
Inlet and outlet pressure difference：25 kpa (FYI)
Inlet water temperature：23 ℃
outlet water temperature：24.3 ℃

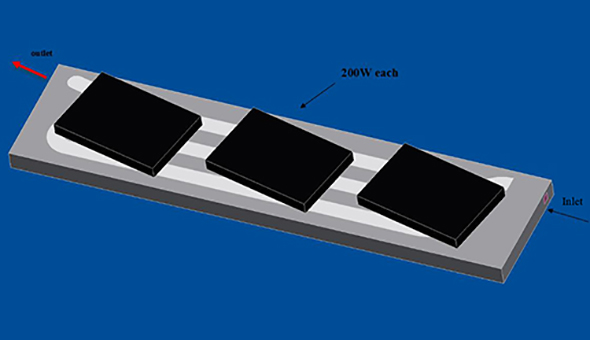

total heat source：600W Each 200W
Heating area：See the next page
Result:
environment temperature : 35 ℃
inlet water temperature：23 ℃
fluid：deionized water
total heat source：600W
rate of flow：10 LPM
outlet water temperature：24.3 ℃
Maximum surface temperature of water cooling 27.2 ℃
Compare the original model with a drop of about 3 ℃
LORI DESIGN SOLUTION

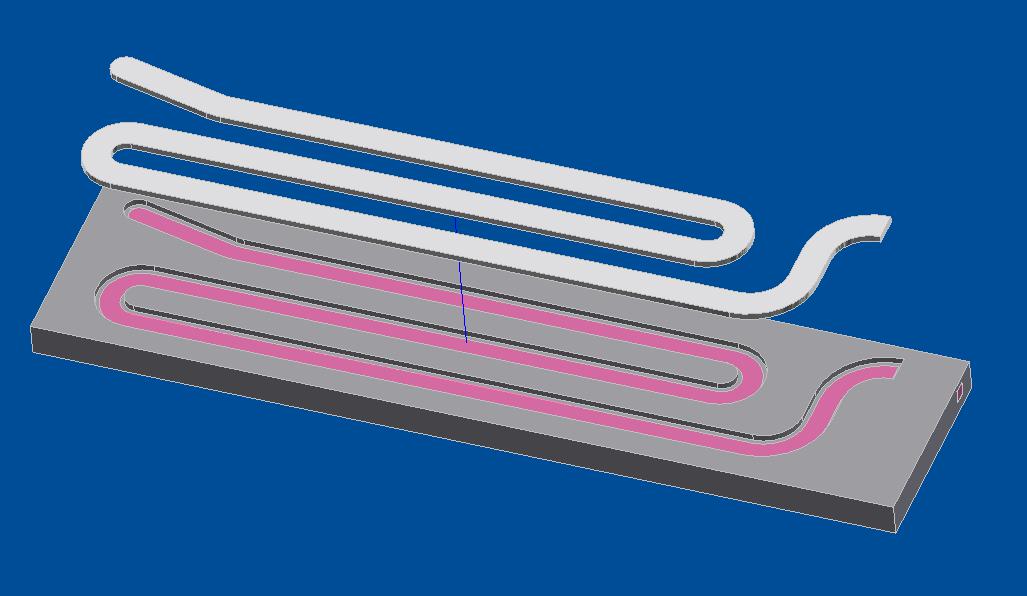

Simulated test with 3D
Simulated test with 3D

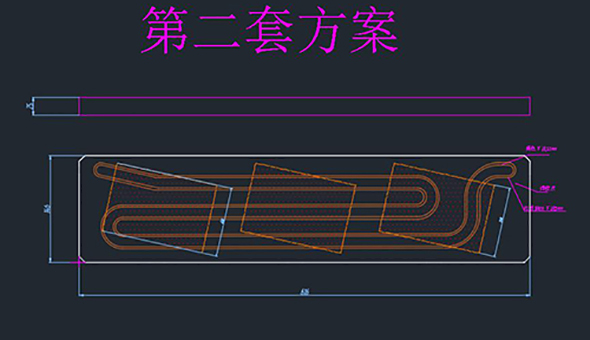

Water passages diagram

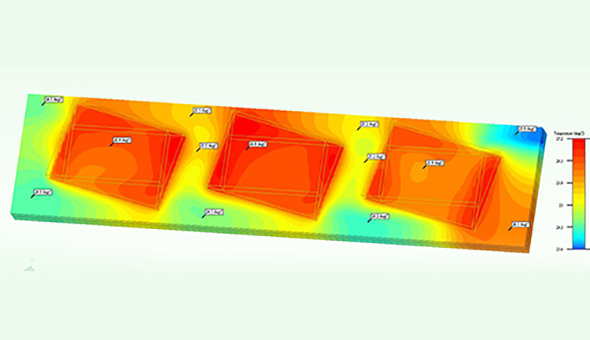

Thermal analysis
inlet water temperature：23 ℃
Maximum surface temperature of water cooling 27.2 ℃ (Is equal to the maximum temperature of the heating source contact water cooling panel）

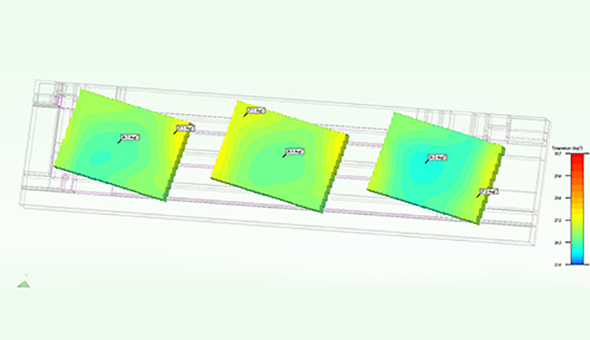

Thermal analysis 600W

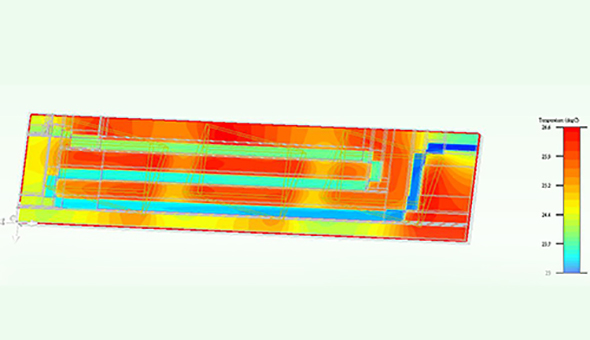

Water passages temperature profile
