Simulation module & Simulation Results
Fundamental Specification
Simulation model :
6mm heat pipe x 6 pcs
AL fin thinkness：0.5mm x 92 fins
heat sink size ：171 x128x215mm
fan 12025
CFM 170 CFM
air pressure 2.12 inchH2O
simulated temperature：25 ℃
Size of the heat source：40x40mm
heat source：70w
Result:
simulated temperature 25 ℃
70W
The maximum surface temperature of the heating source : 30.4 ℃
Fan specifications : 12025 fan
CFM 170 CFM
air pressure 2.12 inchH2O
The temperature is only about 5 ℃.

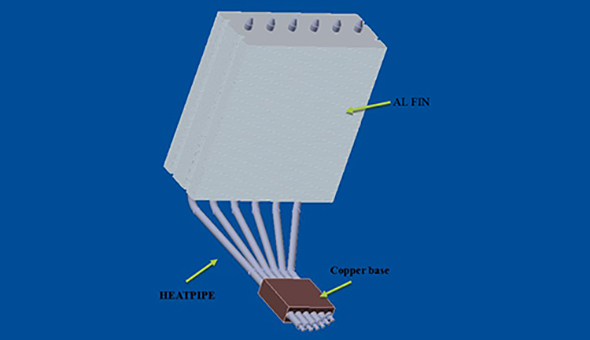

Customer design (3D)

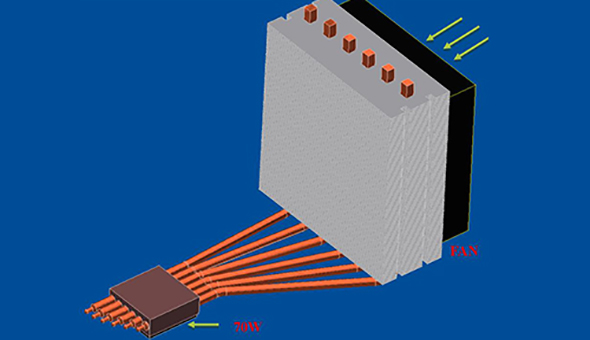

Simulated test with 3D
Thermal analysis
simulated temperature 25 ℃

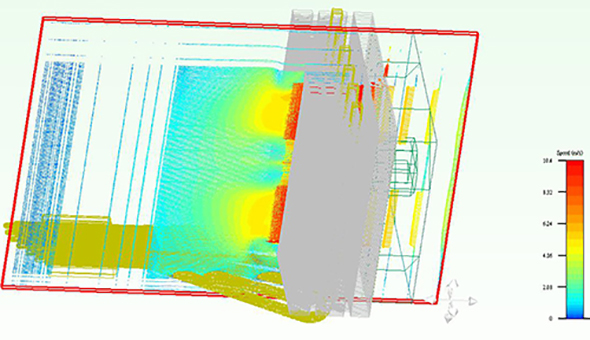

Wind direction

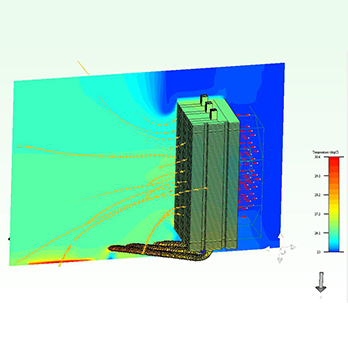

Thermal analysis 002 model
simulated temperature 25 ℃

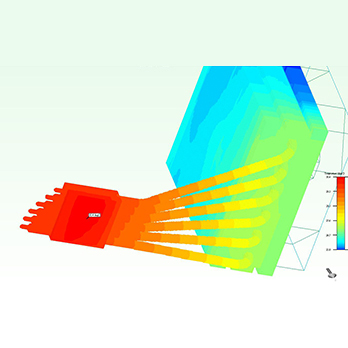

heat pipe thermal
Thermal analysis
simulated temperature 25 ℃

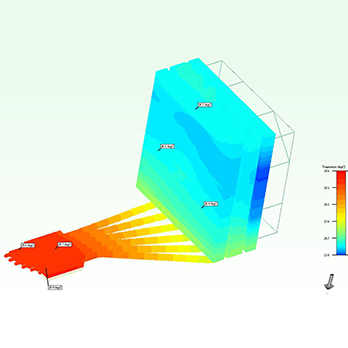

Heat dissipation module surface temperature distribution map : max 30.4 ℃
