920w heat pipe heat sink for igbt simulation module & Simulation Results
Heat pipe heat sink for igbt fundamental Specification
Simulation model :
environment temperature：45c
Material：baseAL6063-T5 + FIN AL5052
heatsink Size：700.0 mm wide x 400.0 mm long x 137 mm high
base thickness：19mm fin , thickness：1.5mm 112 fins
Add 6pcs with 8mm diameter heat pipes at the bottom
3pcs 14051-fans
Heating power: see instructions in the following

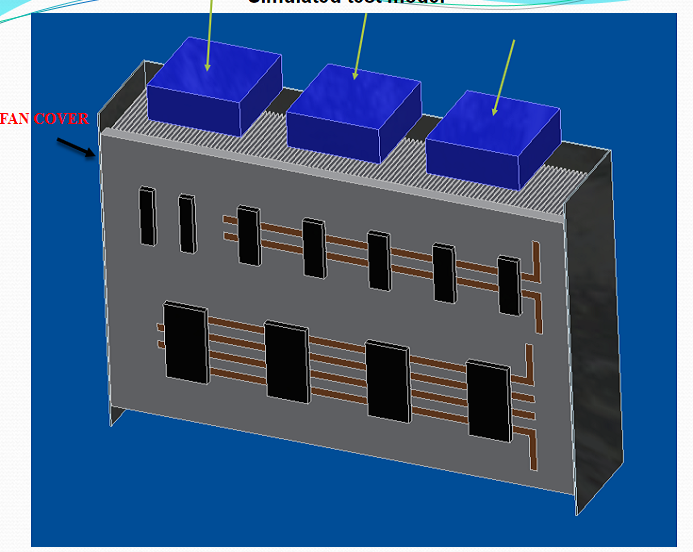

Heat Pipe Heat sink Design (3D) model

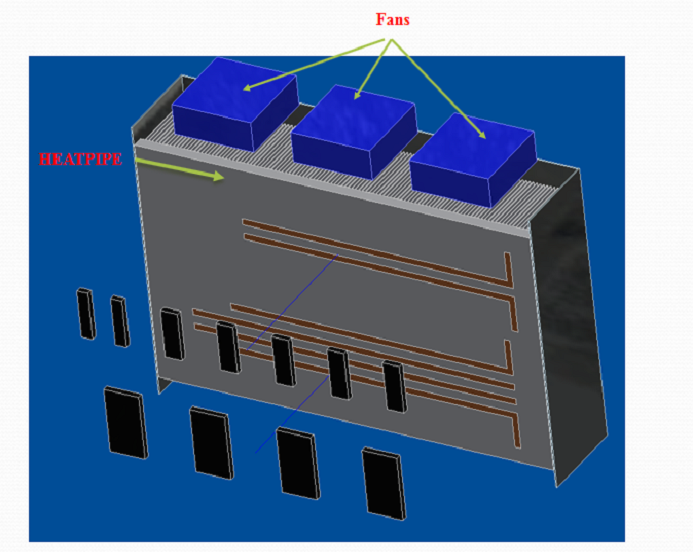

Heat Pipe Heat sink Simulated test with 3D
920W heat source
Heat pipe heat sink thermal analysis
Simulated test results

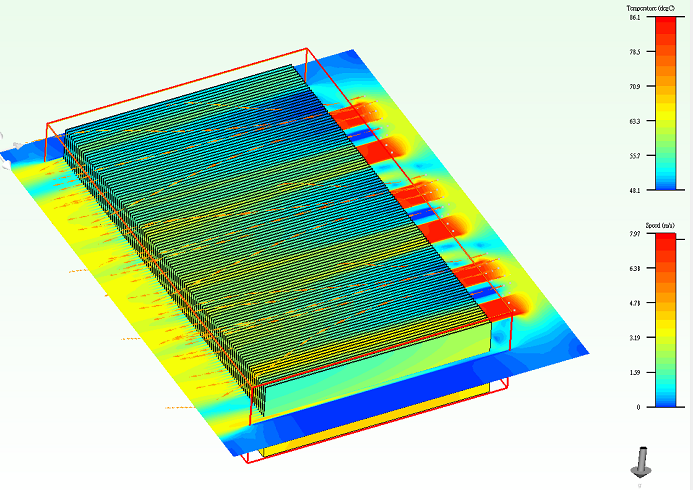

Flow graph

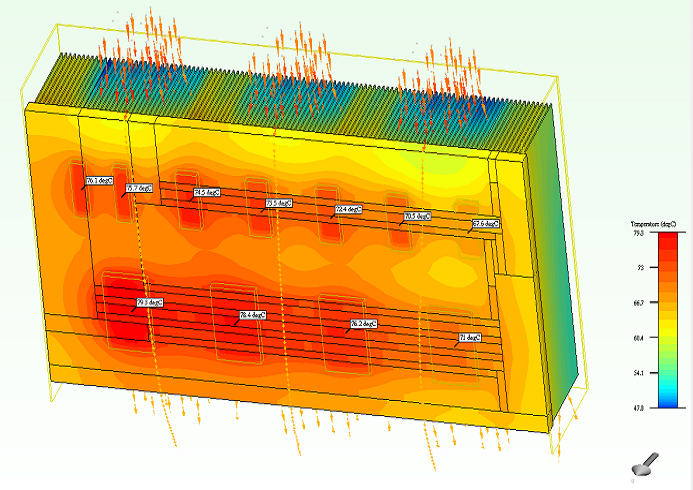

Heat pipe heat sink thermal analysis
environment temperature：45c
The maximum surface temperature profile of the cooling module is 79.3c
Result:
environment temperature：45c
3pcs 14051 fans
heat pipe heat sink for igbt heat source power：about 2937.5W
add 6pcs (8mm) The heat pipe is at the bottom of the heat sink
The surface of the heat pipe heat sink is the highest temperature：79.3c
