The high temperature resistant connector is a connector that is manufactured using special high temperature resistant insulating materials and can work normally under high temperature conditions. It is suitable for connectors with high reliability contact structures in various environments. Such connectors are widely used in circuit connection devices between various electronic instruments, electronic equipment in sealed containers, and power supplies.
Materials used in WIN-WIN’s connectors mostly are high temperature resistance. The insulator materials we use are PPS, PBT, nylon 6T, or nylon 9T, of which PPS, nylon 6T and nylon 9T can withstand high temperatures up to 270℃. PBT material is used for pin header and female header(socket). Nylon 6T and nylon 9T are mainly used to manufacture Box headers and ejector headers. Especially suitable for SMD or SMT box-type connector(box header) and Ejector Headers(pop-up connector).

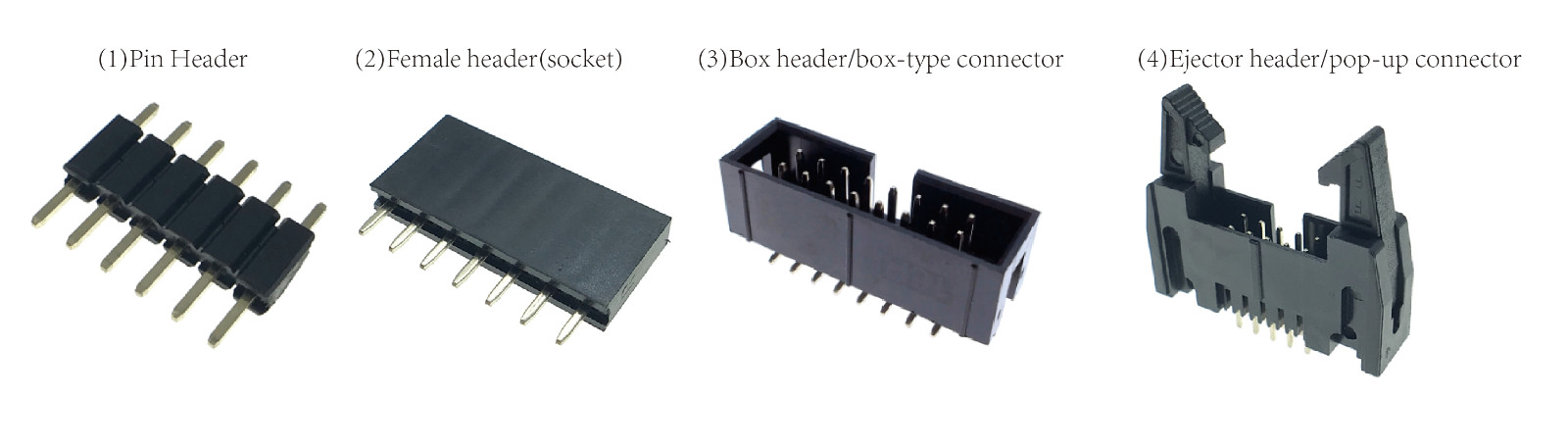

Note: (1)(2)(4) this there type connector are main used PBT,but (3) is mainly used nylon 6T.
All the materials can be customized.
The following mainly explains the basic characteristics of high temperature resistant connectors, the application of high temperature resistant connectors and the characteristics of high temperature resistant connectors.
1. Basic characteristics of high temperature resistant connectors:
1). High insulation;
2). High temperature resistance;
3). High purity;
4). High radiation resistance;
5). Low moisture absorption characteristics;
6). High strength and dimensional stability;
7). Low noise and good self-lubricating performance;
8). Corrosion resistance, good sealing performance, no pollution, suitable for environmental protection.
2. Application of high temperature resistant connector:
High temperature resistant connectors are widely used in the industry for the circuit connection between various electronic instruments, electronic equipment in sealed containers and power supplies, application examples: ultra low temperature reaction equipment parts, high temperature environmental machinery.
High temperature resistant connectors are widely used in audio, digital machines, video cameras, car stereos, televisions, typewriters, calculators, cash registers, telephones, copiers, printers, wireless instrumentation and other electronic products in daily life products.
3. Characteristics of high temperature resistant connectors:
The high temperature resistant connector has a structure with good solderability and enhanced characteristics, so the liquid crystal plastic without reinforcement can reach or exceed the mechanical strength and modulus of ordinary engineering plastics reinforced with tens of percent glass fiber s level.
