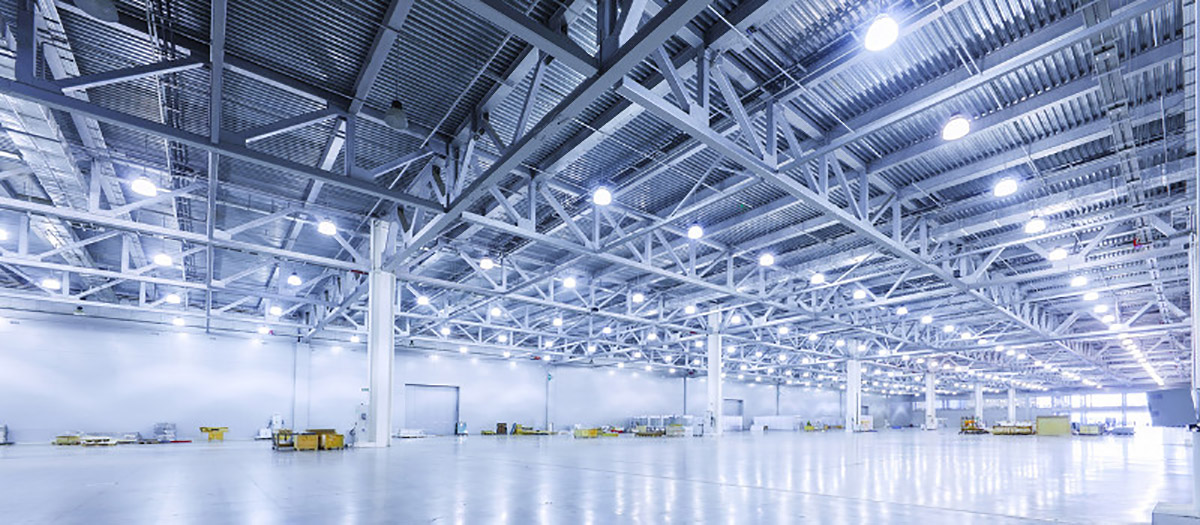

Industrial and outdoor applications often share a few common characteristics. In both, high lumen levels are typical as well as cooler color temperatures and lower CRI values.
GTLED has the range of products to meet these requirements offering an extended line of higher power products with operating power of 50W and higher up to over 300W.
| Package | Product Type | CCT (K) | CRI | Standard Values | Maximum Ratings | Dimension | |||||
| Typ.If (mA) | Typ.Vf (V) | Power (W) | LM/W (@Typ.If) | Typ.If (mA) | Power (W@Typ.Vf) | LM/W (@Typ.If) | |||||
 | GT-COB2828 SP1212 | 3000K | 80 | 1080 | 34.8 | 37.5 | 140-150 | 2160 | 75 | 120-130 | 28*28mm LES: 24.5mm |
| 90 | 120-130 | 100-110 | |||||||||
| 3500K | 80 | 140-150 | 120-130 | ||||||||
| 90 | 120-130 | 100-110 | |||||||||
| 4000K | 80 | 150-160 | 130-140 | ||||||||
| 90 | 120-130 | 100-110 | |||||||||
| 5000K | 70 | 160-170 | 140-150 | ||||||||
| 80 | 150-160 | 130-140 | |||||||||
 | GT-COB2828 SP1812 | 3000K | 80 | 1080 | 52.2 | 56.3 | 130-140 | 2160 | 112.7 | 110-120 | 28*28mm LES: 24.5mm |
| 90 | 110-120 | 90-100 | |||||||||
| 3500K | 80 | 130-140 | 110-120 | ||||||||
| 90 | 110-120 | 90-100 | |||||||||
| 4000K | 80 | 140-150 | 120-130 | ||||||||
| 90 | 120-130 | 100-110 | |||||||||
| 5000K | 70 | 150-160 | 130-140 | ||||||||
| 80 | 140-150 | 120-130 | |||||||||
 | GT-COB2828 SP1818 | 3000K | 80 | 1620 | 52.2 | 84.5 | 130-140 | 3240 | 169.1 | 110-120 | 28*28mm LES: 24.5mm |
| 90 | 110-120 | 90-100 | |||||||||
| 3500K | 80 | 130-140 | 110-120 | ||||||||
| 90 | 110-120 | 90-100 | |||||||||
| 4000K | 80 | 140-150 | 120-130 | ||||||||
| 90 | 120-130 | 100-110 | |||||||||
| 5000K | 70 | 150-160 | 130-140 | ||||||||
| 80 | 140-150 | 120-130 | |||||||||
 | GT-COB3838 SP1825 | 4000K | 70 | 2250 | 52.2 | 117.4 | 150-160 | 4500 | 234.9 | 130-140 | 38*38mm LES: 35.5mm |
| 80 | 140-150 | 120-130 | |||||||||
| 5000K | 70 | 150-160 | 130-140 | ||||||||
| 80 | 140-150 | 120-130 | |||||||||
GT-COB3838 SP3618 | 4000K | 70 | 1620 | 104.4 | 169 | 150-160 | 3240 | 338.3 | 130-140 | 38*38mm LES: 35.5mm | |
| 80 | 140-150 | 120-130 | |||||||||
| 5000K | 70 | 150-160 | 130-140 | ||||||||
| 80 | 140-150 | 120-130 | |||||||||
