At present, the application environment of the market is more diversified than before, and the negative temperature coefficient (NTC) thermistors common temperature sensor measurement and control components, which are widely used in aviation, marine and civil applications with the characteristics of high temperature measurement accuracy, high sensitivity, good reliability, low cost and long working life. With the continuous advancement of the electronics industry and information technology, modern electronic information systems are moving toward miniaturization and monolithic integration. In order to meet the diversified needs of the market, we have introduced HNF series thin film resistors (collectively referred to as MF55). Let's have a look of our HNF series.
The film thermistors are kind of sensitive components. The resistance value of the thermistor changes with the change of temperature. Unlike the general fixed resistor, it belongs to a class of variable resistors and are widely used in various resistance components.

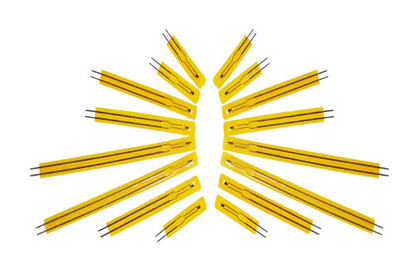

1.Product introduction: HNF film temperature measurement type NTC thermistor (hereinafter referred to as HNF resistance) is a small-volume thin film NTC thermistor produced by new materials and new technology, which has the advantages of common precision and rapid response.
2.Scope of application:
Air conditioning equipment
Heating equipment
Electronic thermometer
Level sensor
Automotive Electronics
Electronic desk calendar
Cell phone battery, etc.
3.Features:
Insulating film package, good insulation, good stability and high reliability
Small size, light weight, fast thermal induction and high sensitivity
Interchangeability, good consistency, stable work for a long time
High precision of resistance
Safe to use, sturdy structure, easy to install automatically

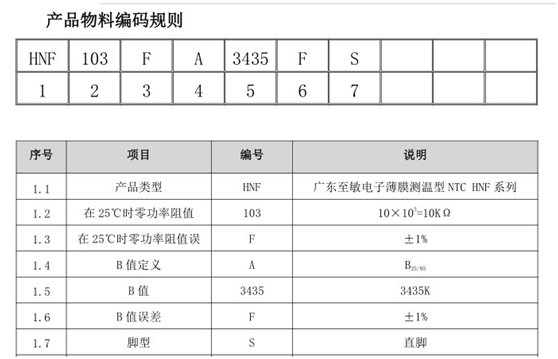

4.Model name:

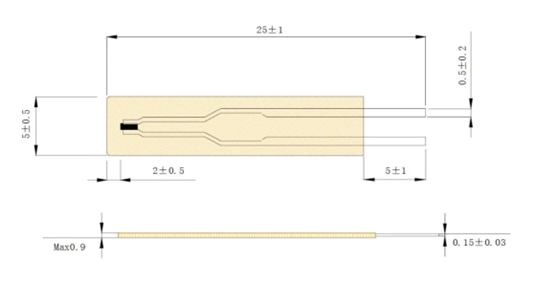

5.Dimensional drawing:
6.Precautions:
To avoid the chip and the wire frame falling off and causing poor tissue,do not bend the resistor wire frame at random
Do not exceed 300 °C during soldering, and soldering time should not exceed 0.5 seconds.
Use a heat gun when heat shrinking the sleeve, and the temperature of the air gun should be controlled at about 120 °C.
Use a constant temperature soldering iron for soldering, flattening the soldering iron tip, holding the resistor in one hand, and welding the wire in one hand, which can improve production efficiency and shorten welding time.
Special note: Do not touch the chip (ie the top of the resistor)!
