FOOTBALL COURT SOLUTIONS:
Artificial grass soccer field

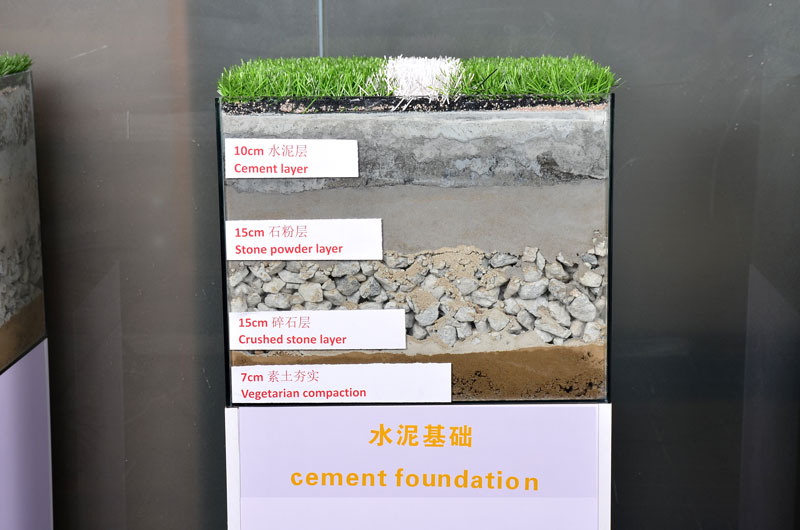

Foundation Construction Process：
1. Level the site, clear the weeds, and repeatedly compact with a 8-10 ton roller.
2. Make drainage ditch, depth 30CM or more
3. Laying gravel powder, which must be added with 6% of 325 well cement and evenly
spread on the soil.
The gravel powder is laid to a thickness of 10-15 cm, and then sprinkled repeatedly with
a 8-10 ton roller compactor to finish the flatness.
(Remarks: If the foundation belongs to the soil of the field, or the farmland or the pond,
in most cases, the foundation belongs to the soft foundation layer, and a layer of gravel
10-15 cm thick should be laid before the gravel powder is laid. 3-5cm, in order to stabilize the
base layer, the basis of the stability of hard goods can omit this step)
4. Lay 8-10 cm thick cement foundation. Label: C20 or above, the drainage surface of the
football field is drained by bilateral or four-sided slope, the drainage coefficient is 5‰, and it
needs to be cut 3-5cm after the completion of laying.

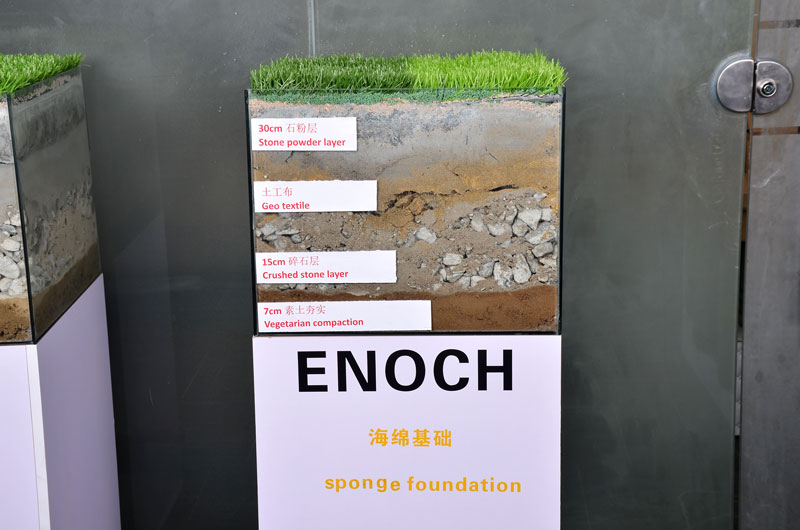

1. Level the site, remove weeds, and repeat compaction with a 8-10 ton roller.
2. Stacking drainage ditch, the depth is more than 30cm.
3. Laying a gravel stabilizing layer with a particle size of 3-5cm and a thickness of 15cm or
more, complete the full shop, geo textile, and thickness of 300g or more.
4. The distance is 20cm. The "human" shape visits the breeding tube, and the drainage is
drained into the drainage ditch on the four sides of the court.
5. Laying gravel powder rich in 6% cement, thickness about 30cm, pave divided into twice
and finish to smooth, sprinkle and rest for a week.
6. The finished surface of the crushed stone powder is slightly lower than the finished
surface of the four sides of the golf course to prevent the loss of sand and rubber particles in
the lawn.
7. Laying artificial turf, (Reference artificial grass construction process)

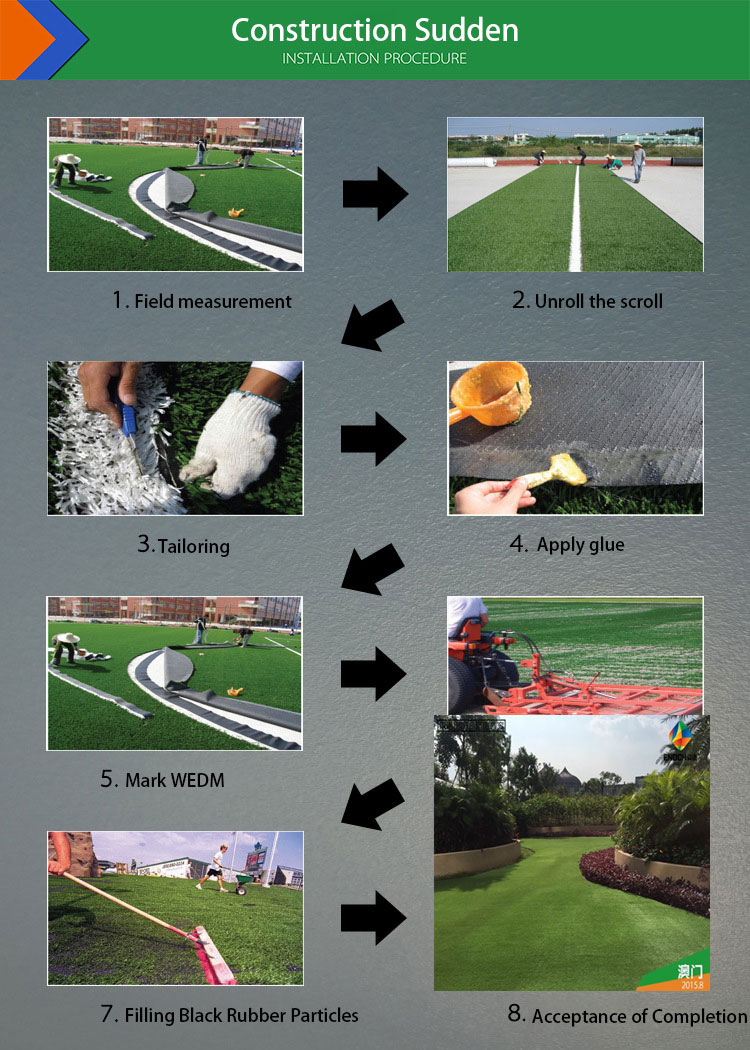

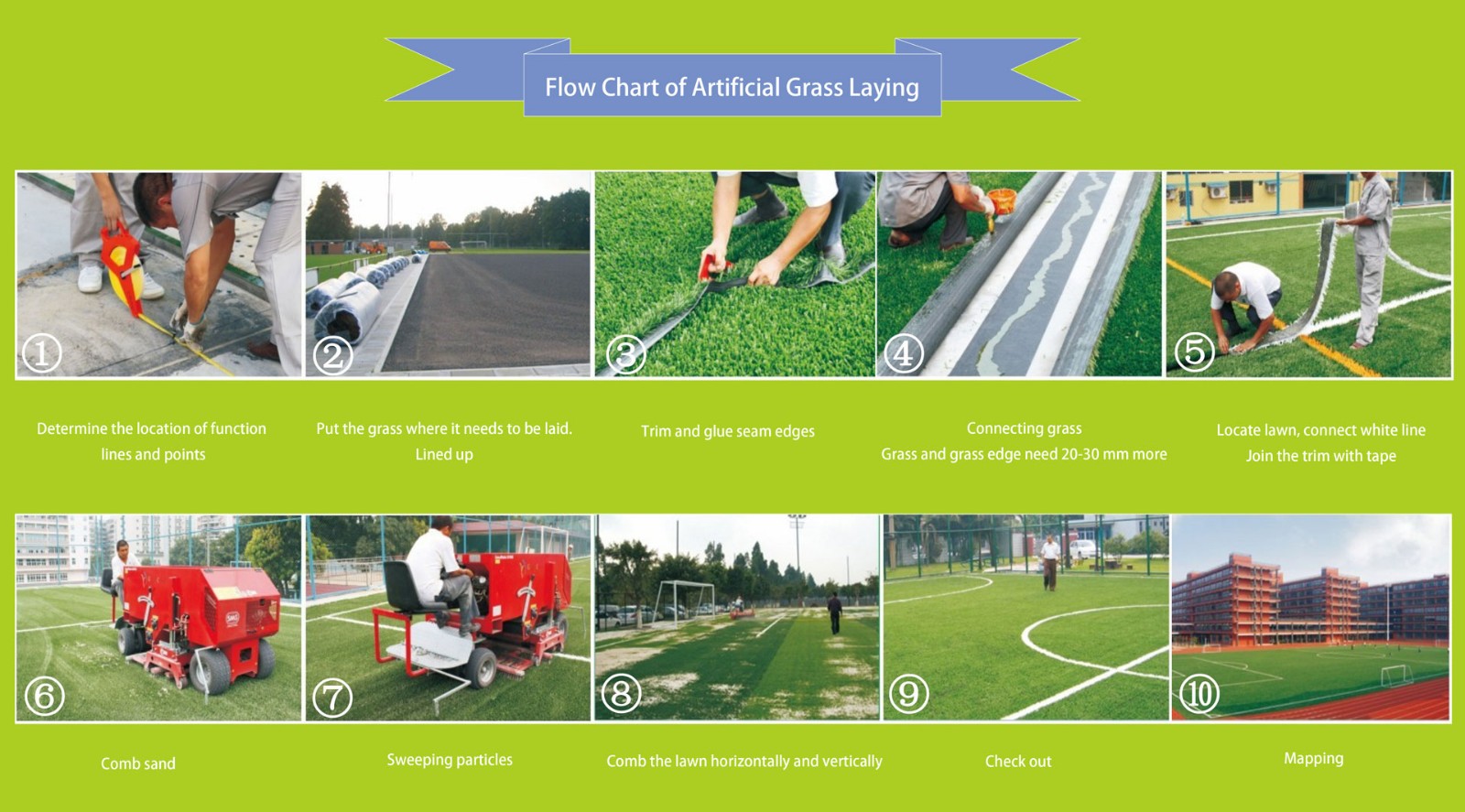

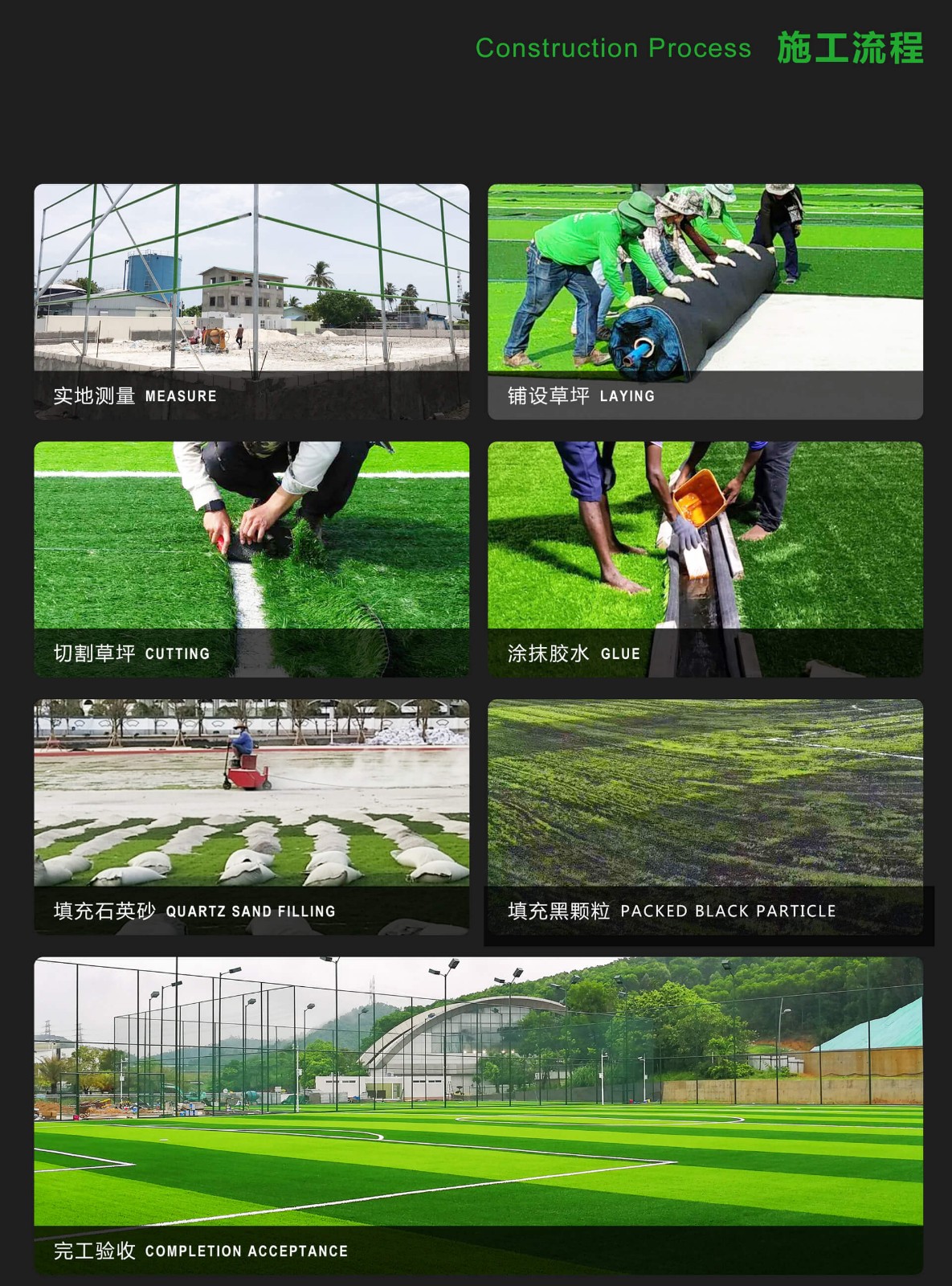

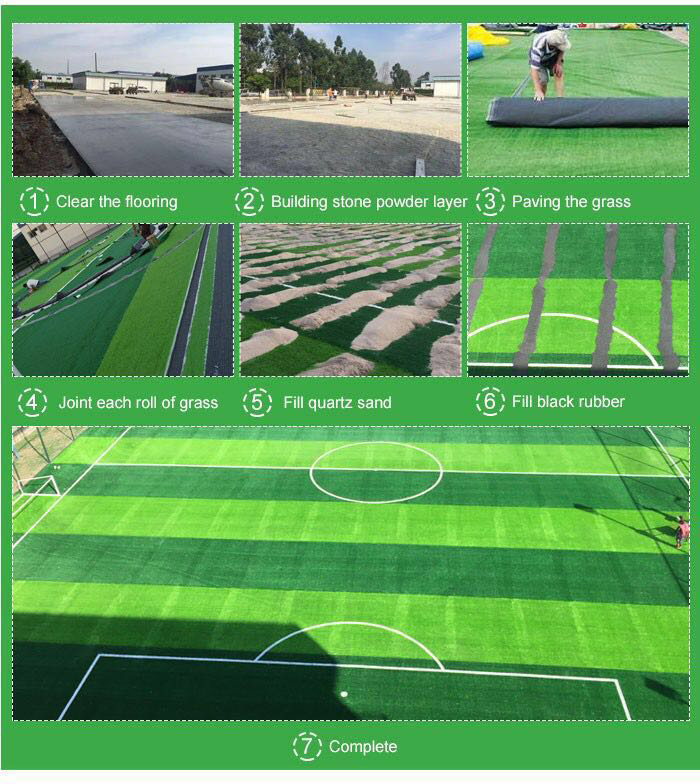

Construction Process:
Measure → Clean the site → Pave the grass → Cutting the grass →Connect joint tape → Brush the glue →Combine the grass → Quartz Sand Filling → Packed Black Particle→Trim grass edge →Finished.

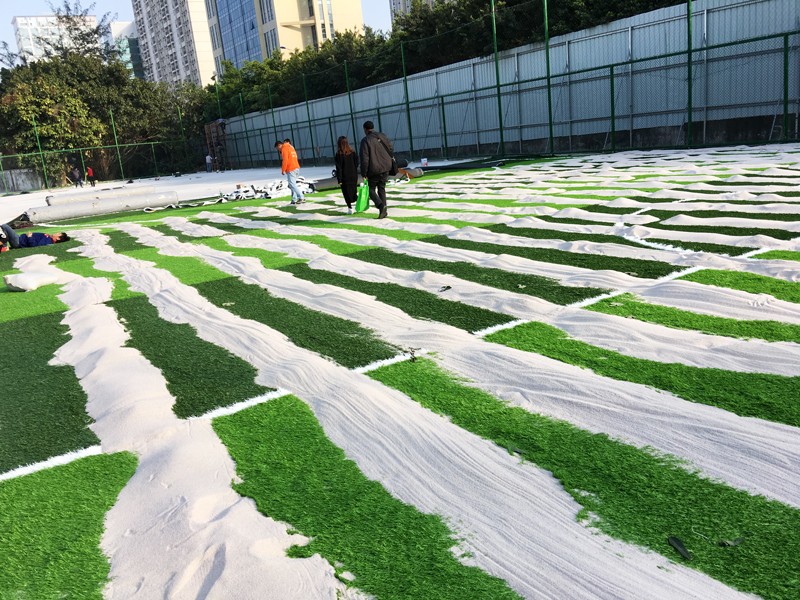

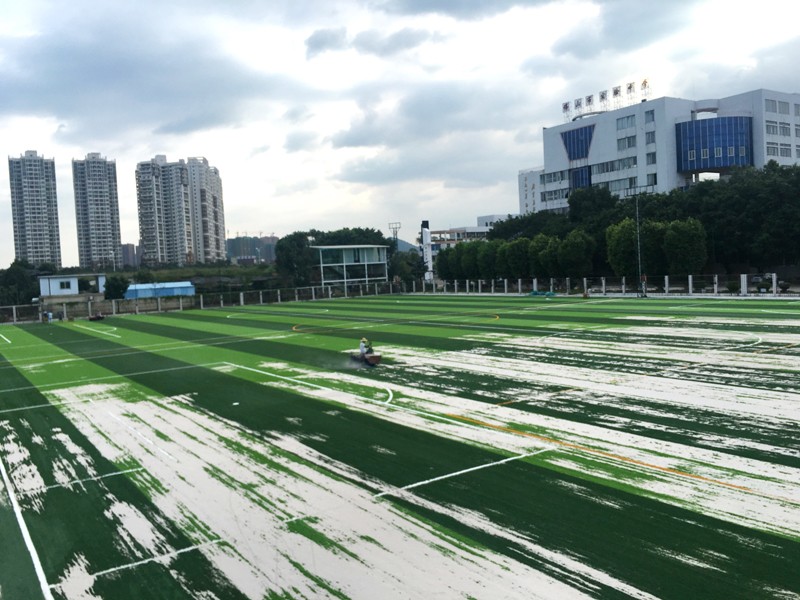

The dosage of court filling.
First putting the Quartz sand, Second putting the Rubber.

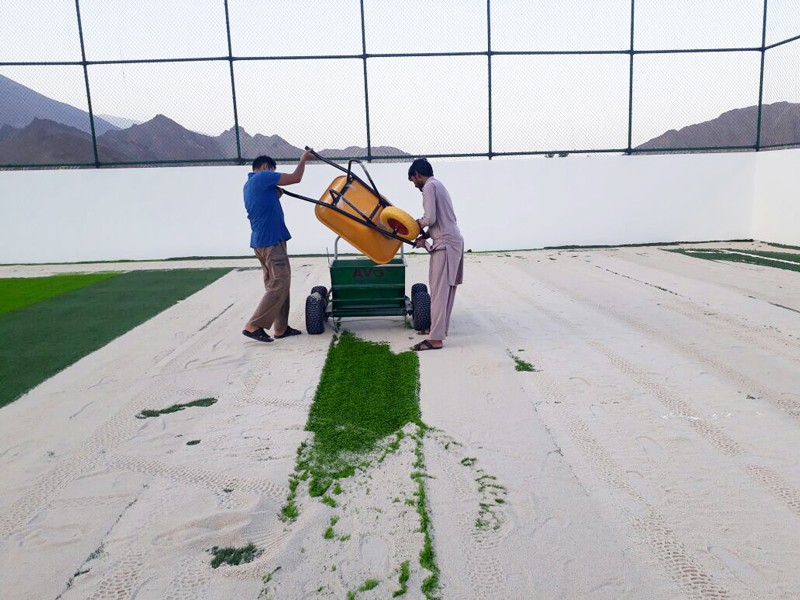

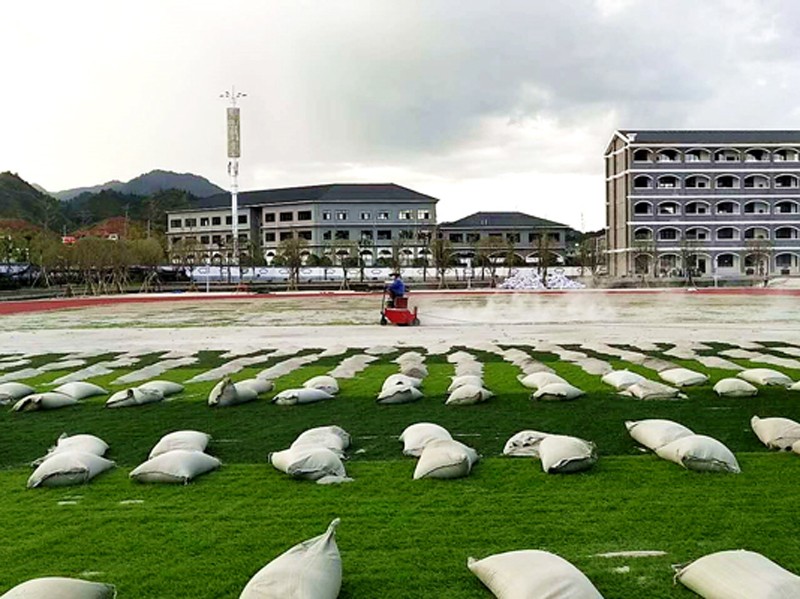

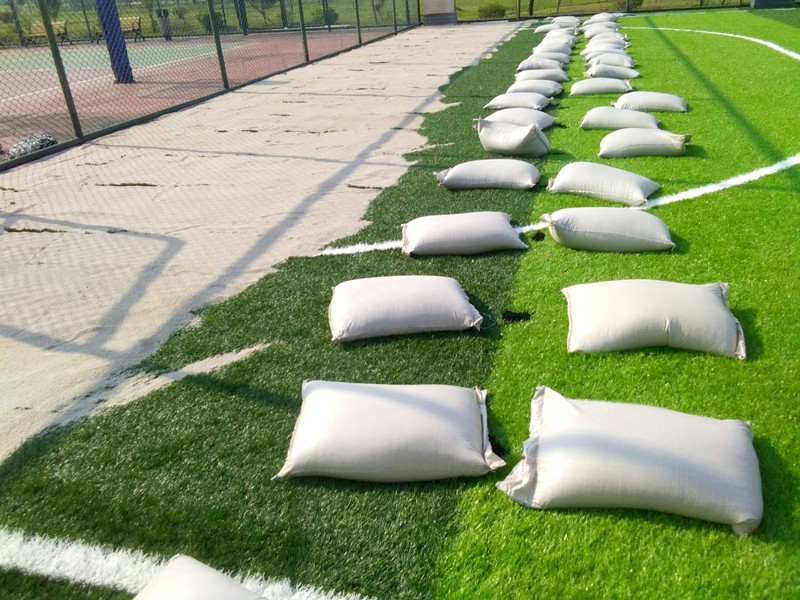

（1）Quartz sand:25Kg/sqm :Quartz sand have strong water discharge capacity, Moderate Quartz sand can prevent Artificial Turf from moving . Fill 25kg of Quartz sand into every square meter to straight each of the yarn,protect suitable hardness for the Court,Together with Shock pad and Rubber can provide Better movenent performance.

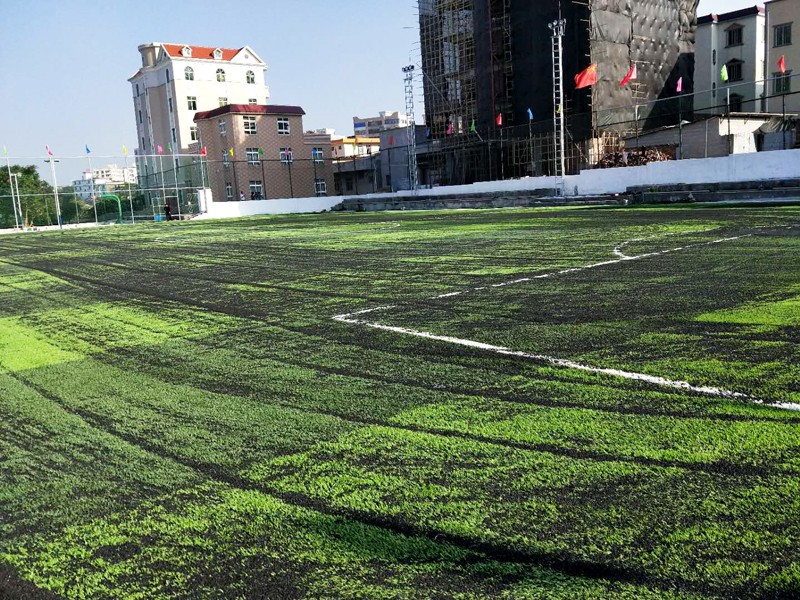

（2）Rubber:5Kg/sqm:Rubber can provide a good bounce and shock resistance for Artificial grass court system.It can reduce the damage from the process of Excising and Provide road holding for the Players. Fill 5kg of Rubber into every square meter to get a better protection for sport.

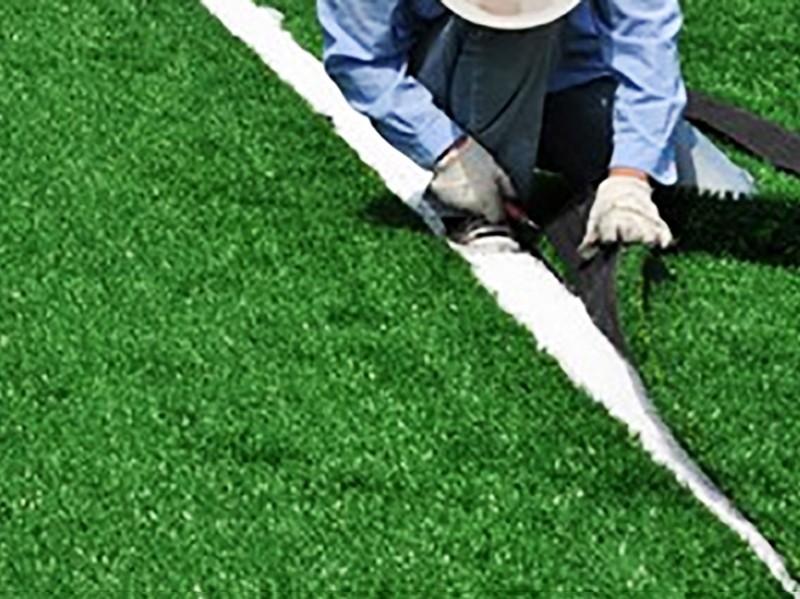

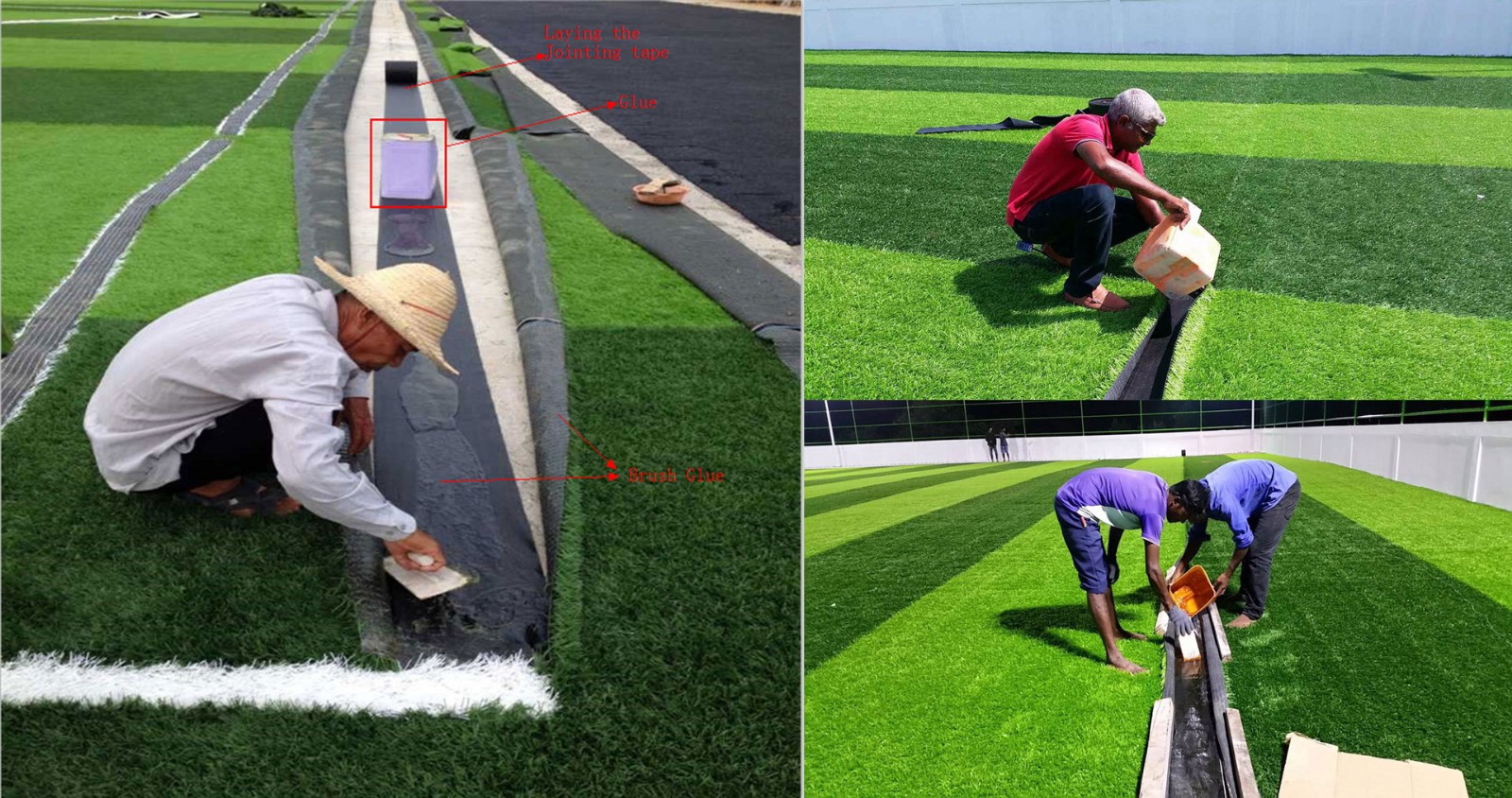

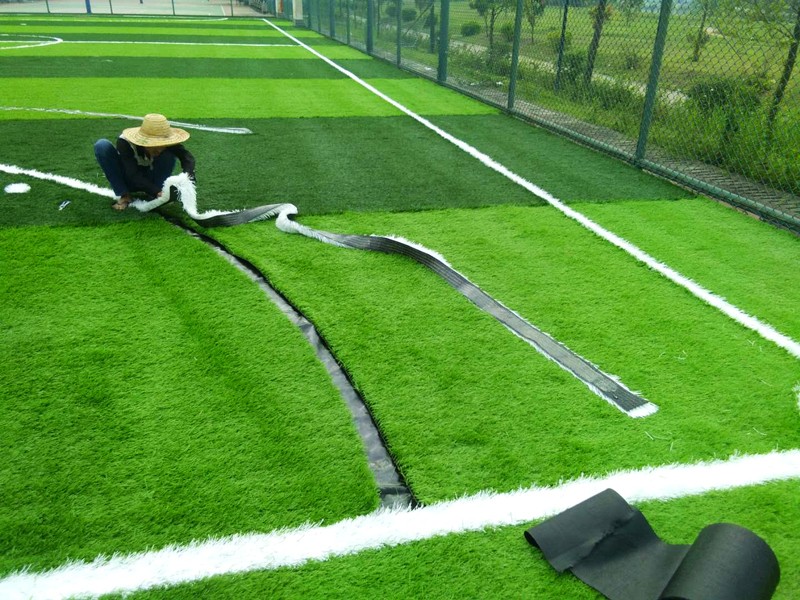

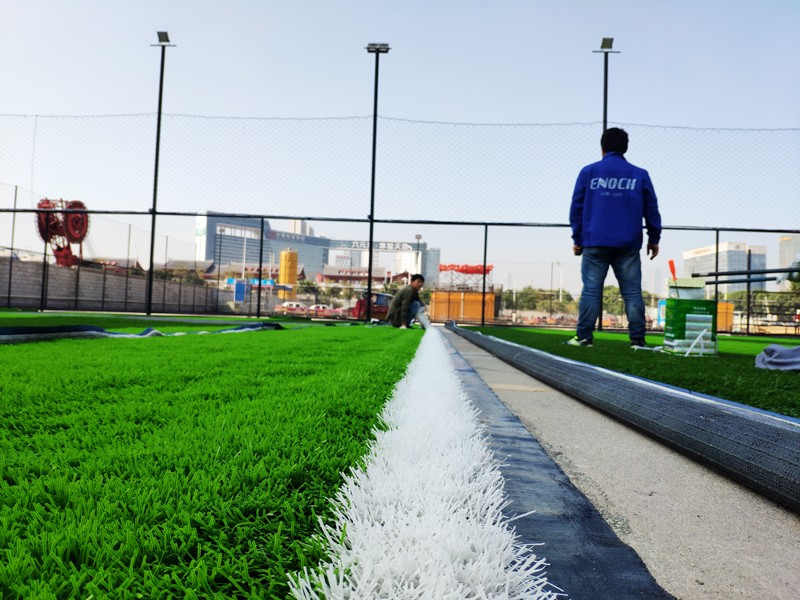

Cutting the function lines
（1）Adhere the joint tape the underlying fabric along the line marking.
（2）Adhere the artificial grass line on the joint tape along the line marking to ensure its
smoothness and firmness.
（3）Trim and splice the artificial turf with special tools, and the joint spacing should less
than 2mm.

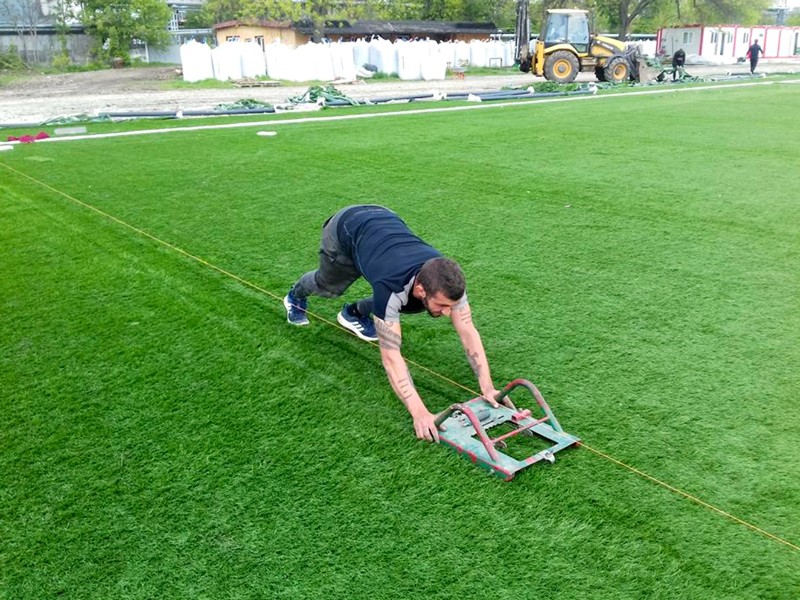

（4）Use joint tape to bond between grass gaps.
（5）Compact grass overlap to ensure that the seams are flat and firm.
（6）Fill the accessories with special equipment, ensure that it is uniform, flat.
（7）Comb the grass with special equipment to make accessories is fully settled.
Measuring
（1）Measuring the court:
Before building a court , should be carefully measured the size of the court and send the size to us ,we can help to calculate how many square meters will the court cost ,and make you a site design drawings,
（2）Mark the location of each sideline and line according to the site design drawings. The mark
should be clear.

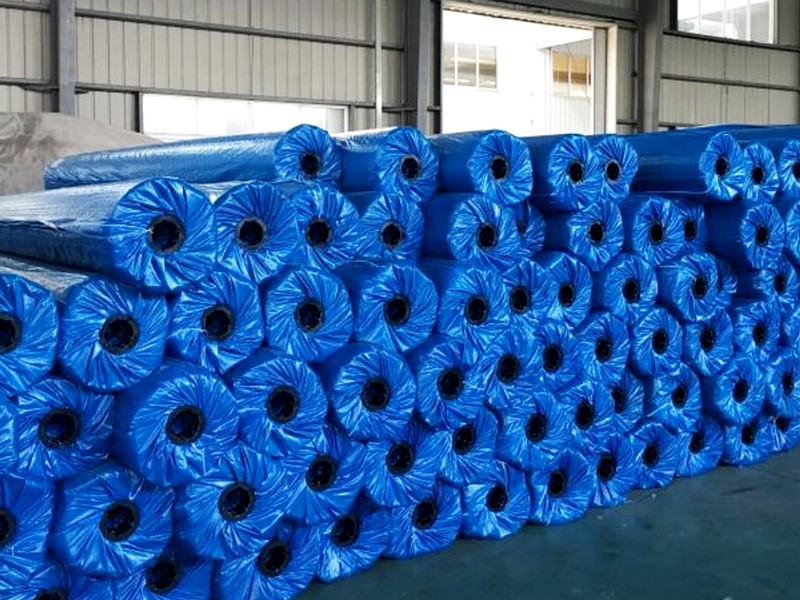

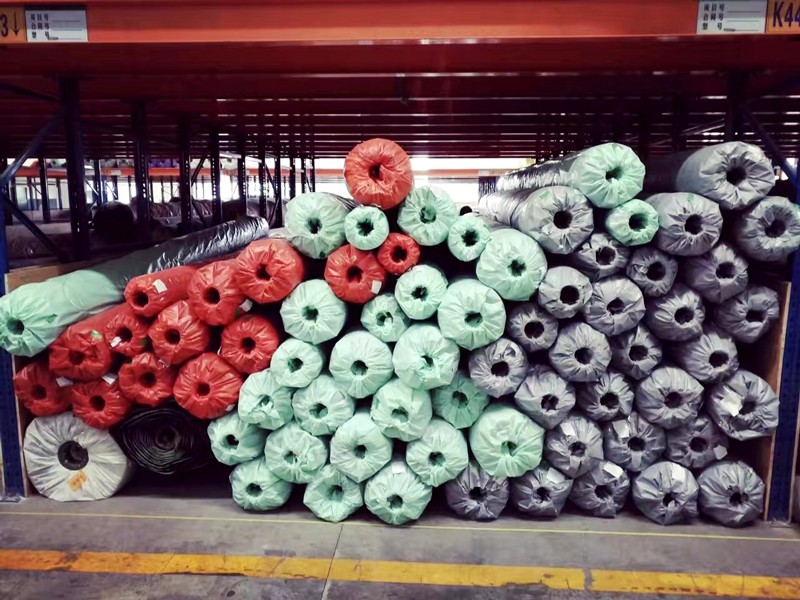

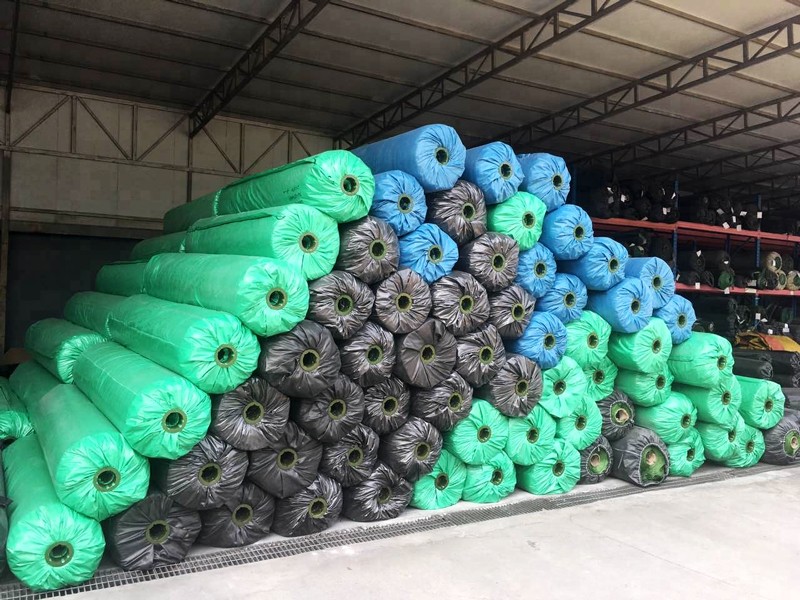

Package:
PP Woven Bag
1Roll=4*25 / 2*25
1Roll=100Sqm =260Kg
1Roll=50sqm=130kg

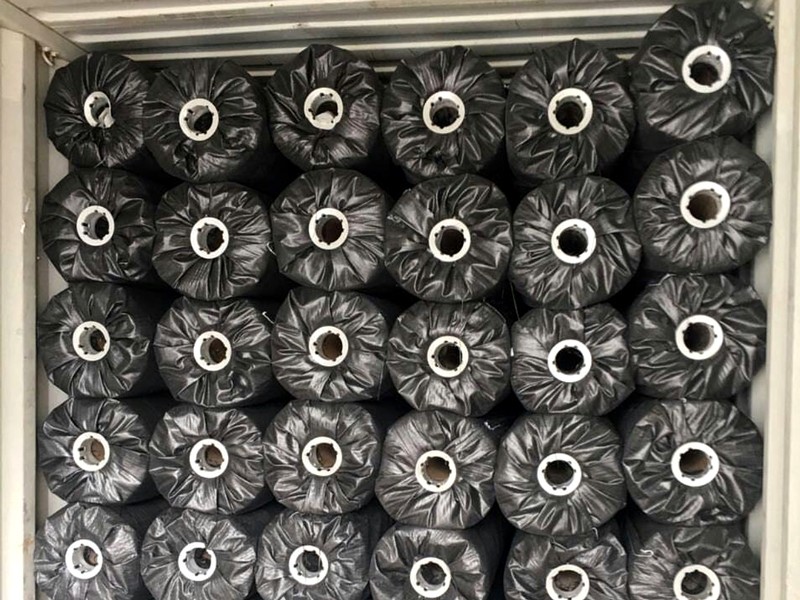

Shipment terms:Sea/Land/Air
20GP=3000-3500Sqm
40GP=6000-7000Sqm

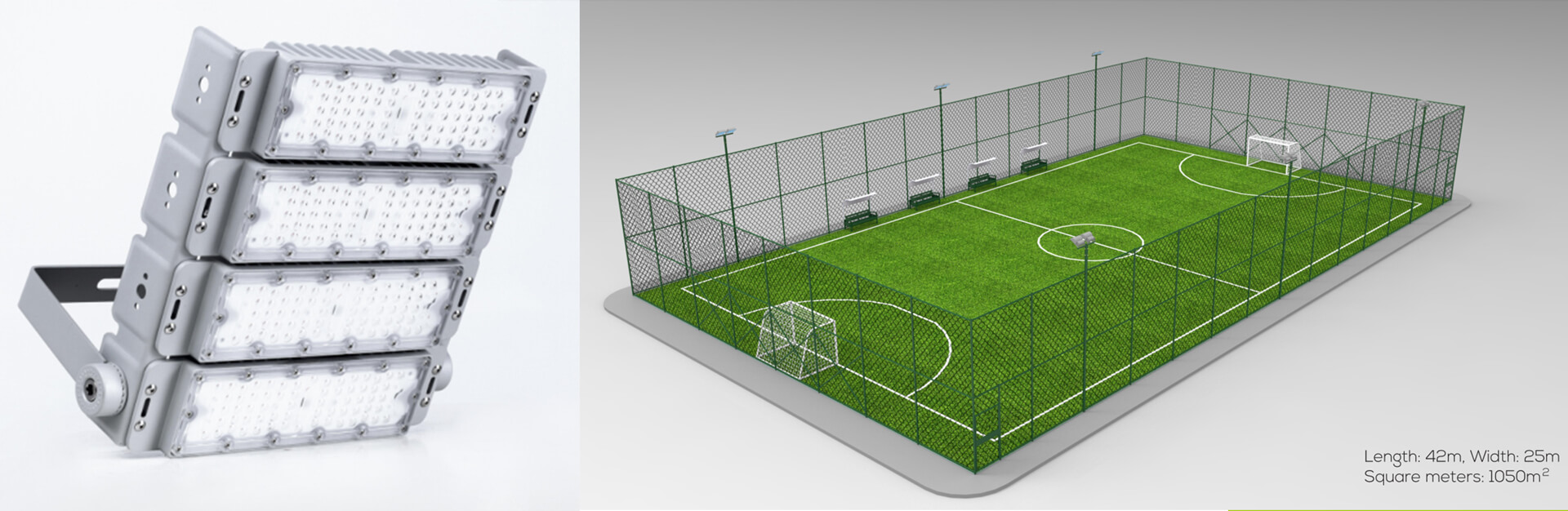

Soccer court Lighting scheme:
5V5 Football Court:
The height of the pole:8 meters
Number of the light pole: 4 poles
The number of lamps and lanterns: 2 lamps / Role
Specifications of the lamps and lanterns :
Items:SD-B200
Wattage: 300W
Color: silver gray
Voltage range: AC100-305V
Photoelectric characteristics: bipolar no stroboscopic
Color rendering index: RA≥80
Color temperature wavelength: 2700-6500k
Operating temperature: -40 ° C to +50 ° C
Lamp brightness: 28065LM ± 3%
Beam angle: 60°/90°

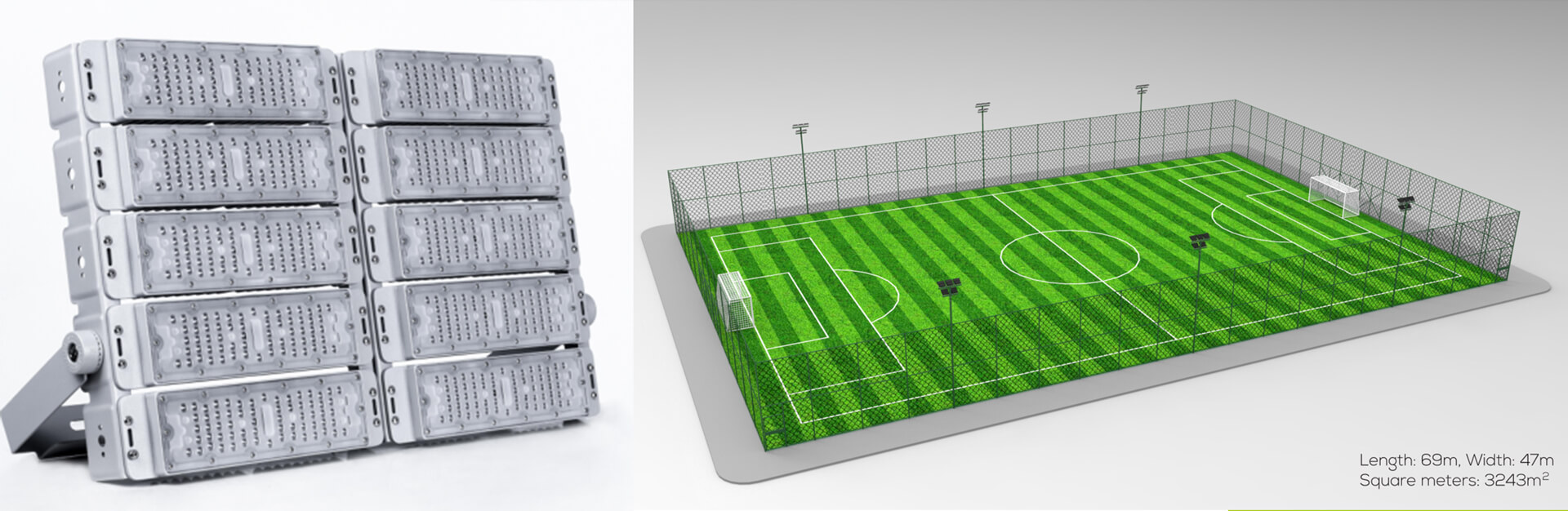

7V7 Football Court:
The height of the pole:15-18meters
Number of the light pole: 8 poles
The number of lamps and lanterns: 4 lamps / Role
Specifications of the lamps and lanterns :
Items:SD-B500
Wattage: 300W
Color: silver gray
Voltage range: AC100-305V
Photoelectric characteristics: bipolar no stroboscopic
Color rendering index: RA≥80
Color temperature wavelength: 2700-6500k
Operating temperature: -40 ° C to +50 ° C
Lamp brightness: 68050LM ± 3%
Beam angle: 60°/90°

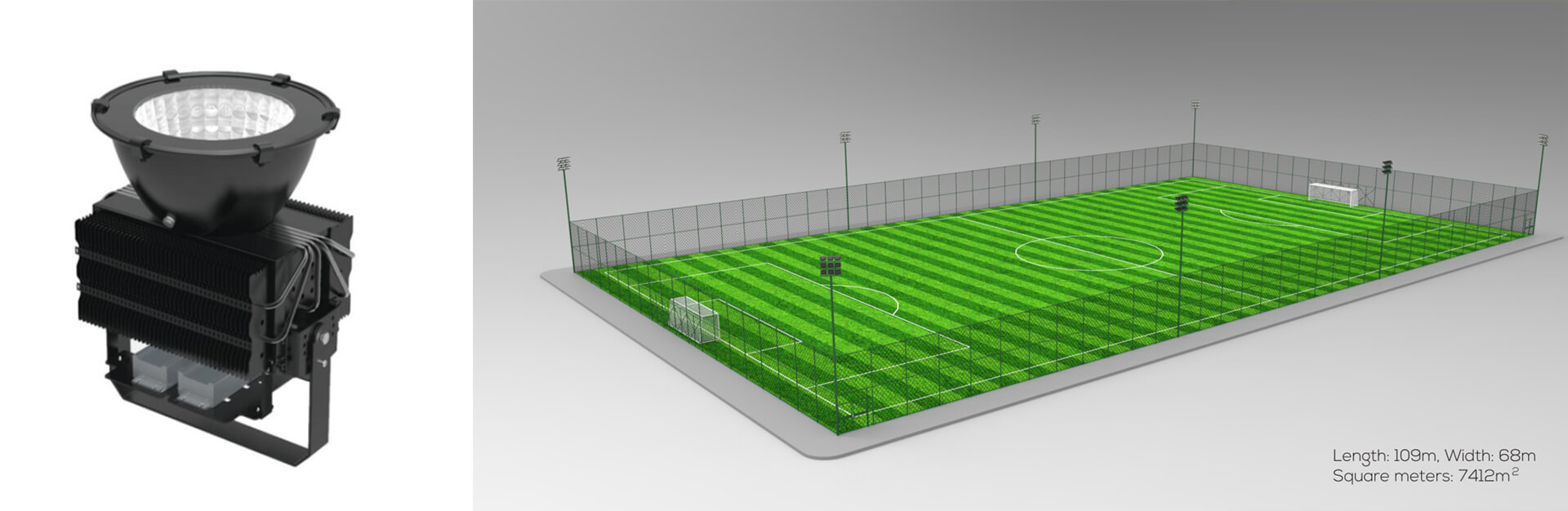

11V11 Football Court:
The height of the pole:18-25meters
Number of the light pole: 8 poles for 18 meters / 4 poles for 25 meters
The number of lamps and lanterns: 8 lamps / Role for 8 Roles ;12 lamps / Role for 4 Roles ;
Specifications of the lamps and lanterns :
Items:SA-G500
Wattage: 500W
Colour: Black
Voltage range: AC100-305V
Photoelectric characteristics: bipolar no stroboscopic
Color rendering index: RA≥80
Color temperature wavelength: 2700-6500k
Operating temperature: -40 ° C to +50 ° C
Lamp brightness: 73500LM ± 3%
Beam angle: 25°/60°/90°
