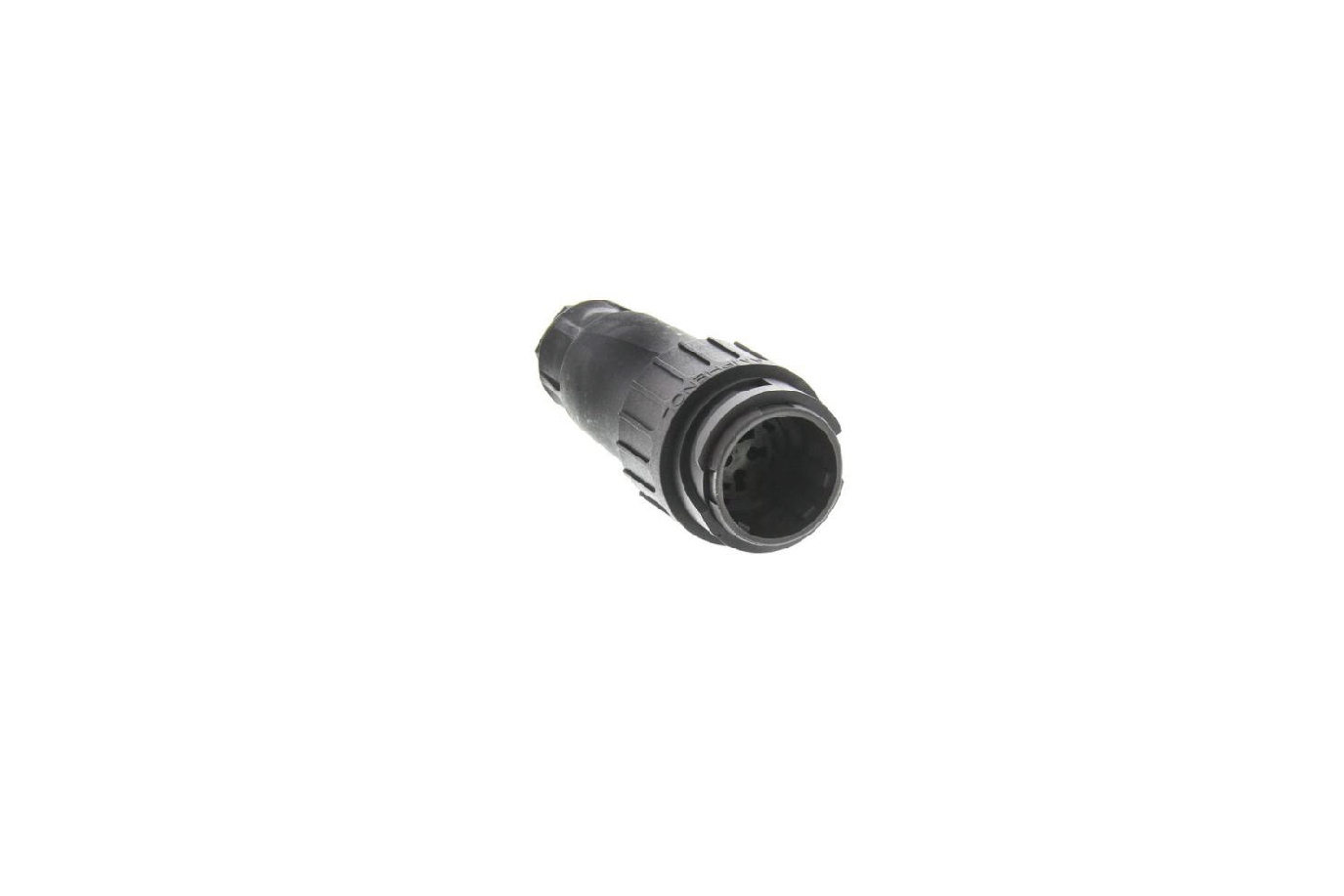

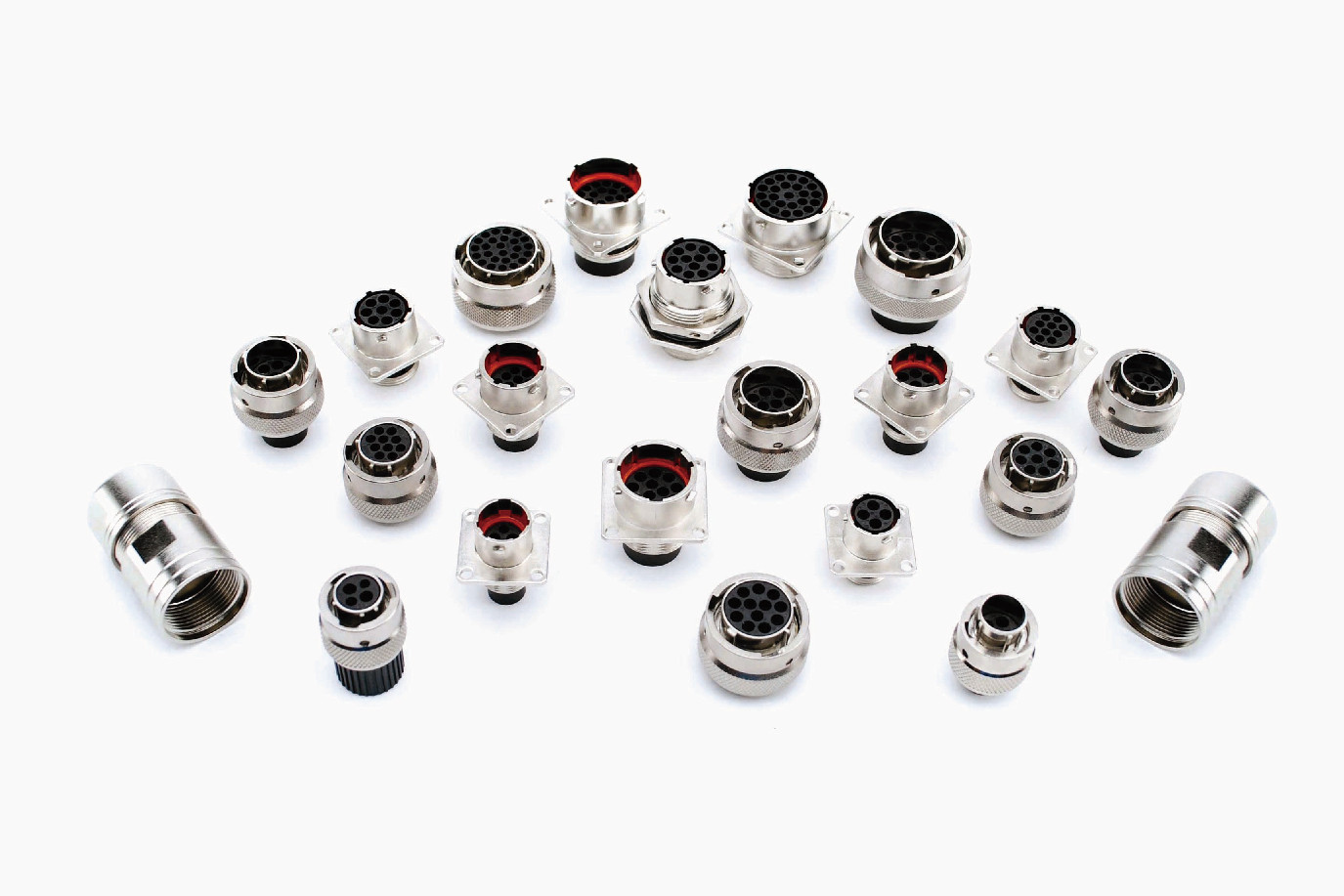

A circular connector is a type of connector with a basic cylindrical structure and a circular mating surface. In the interconnection classification, it belongs to category 5 and is used for interconnection between devices. Broadly speaking, including low-frequency circular connectors, RF coaxial connectors and audio connectors from it. The cylindrical structure of the circular connector is naturally strong and has higher strength than any other shape.
Circular connector features

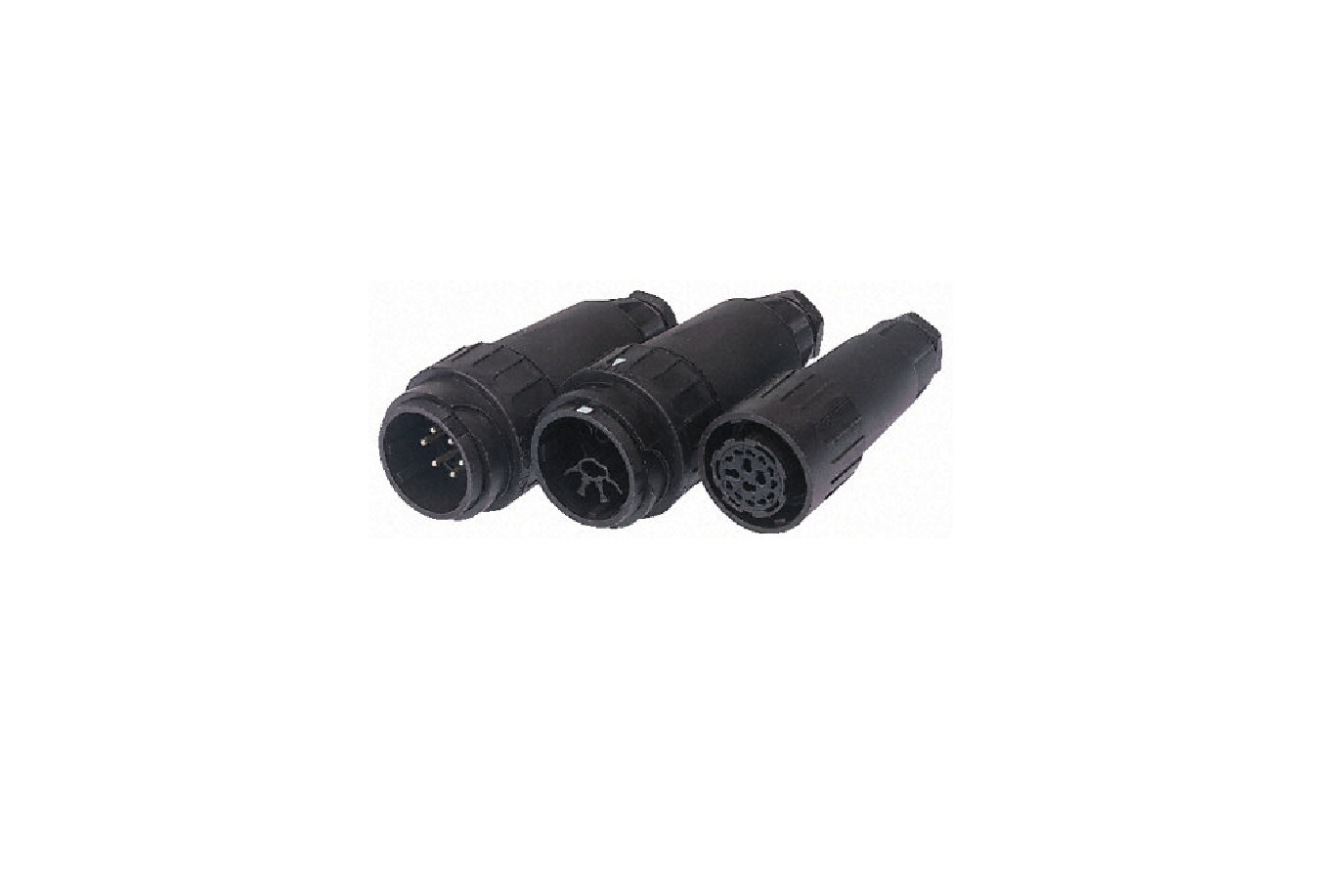

The plugs and sockets of circular connectors are mostly threaded. The terminals can range from two to hundreds. They have the characteristics of small size and high reliability, which can meet the needs of cable connection between electronic devices.
Basic structure of circular connector
1. Contact part
The contact piece is the core piece of the circular connector to complete the electrical connection function. Generally, a contact pair is composed of a female contact and a male contact, and the electrical connection is completed by the insertion of female and male contacts.
2. Accessories
The accessories are divided into structural accessories and installation accessories. Structural accessories such as positioning pins, snap rings, coupling rings, sealing rings, guide pins, positioning keys, cable clamps, gaskets, etc. Install accessories such as spring coils, nails, levers, mothers, etc. Most accessories have common parts and standard parts.
3. Insulator
Insulators are also often called pedestals or mounting plates. Their function is to arrange the contacts in the required position and spacing, and to ensure the insulation between the contacts and between the contacts and the housing.
4. Shell
The shell is also called the shell, which is the outer cover of the circular connector. It provides mechanical protection for the built-in insulating mounting plate and pins, and provides alignment when the plug and socket are mated, and then fixes the connector to the device.
Advantages and disadvantages of circular connectors
Advantages: Circular connectors are ideal for applications requiring electrical connectors with stronger terminals. Their cylindrical shape makes them particularly resistant to mechanical turbulence and impact damage.
Disadvantages: The circular surface area limits the arrangement of the pins and sockets on the surface of the circular connector; connectors with rectangular faces can install more contacts on a smaller surface area at larger and even intervals .
Circular connector application
The cylindrical structure of the circular connector has natural rigidity and has a higher strength-to-weight ratio than any other shape. It is easy to process with standard machine tools. It is easy to seal, easy to insert and remove. Simple and firm locking mechanism. Ten years of technological development make it have a complete and reasonable process and high reliability. Therefore, it is required to use the multi-contact connector to realize the interconnection between components and cables, and cables and cables. Circular connectors are the first choice.

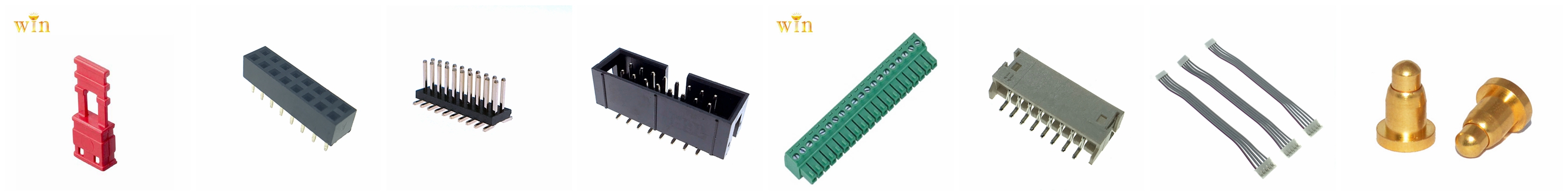

WIN-WIN Electronics has not yet involved in the field of circular connectors, but we have many years of experience in making various rectangular connectors,pin header,wafer connector,box header,terminal block connector and so on. WIN-WIN accept customize order.No matter what shape or size you in our production line, we will try our best to make it.
