Integrated Auxiliary Controller

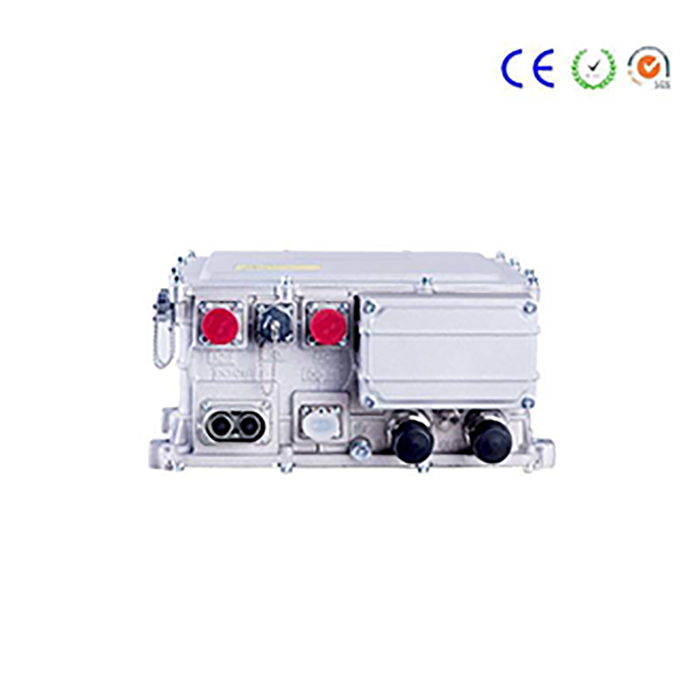

3-in-1 Integrated Auxiliary Controller (Oil pump + gas pump +DC/DC) V6-H-4D5.5G & V6-H-4D5.5G
Item | Specification |
Adaptable motor type | Permanent magnet synchronous motor、Three phase asynchronous motor |
Applicable vehicle type | Medium Bus、Large Bus、Logistics Vehicle |
Product type | V6-H-4D5.5G & V6-H-4D5.5G |
Rated input voltage | DC 540V |
Rated power | 5.5kW & 5.5kW & 3kW |
Input voltage range | DC 350V~750V |
Rated output current | 13A & 13A , DC 27.5V |
Maximum output current | 19.5A & 19.5A , DC 130A |
Output frequency range | 0～300Hz |
Protection level | IP67 |
Cooling type | Water cooling |
Outline dimension | 333*308*159（mm） |
Weight | 568*406*166（mm） |
