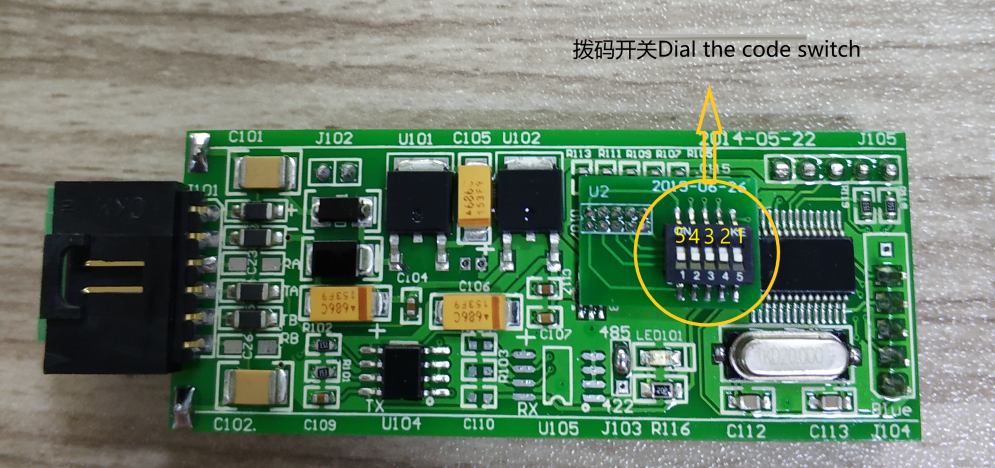

In order to exchange the AD modular card easily and quickly, all AD modular cards are adopted heading switch to code, connect the load cell wiring with dedicated APS Compressor.

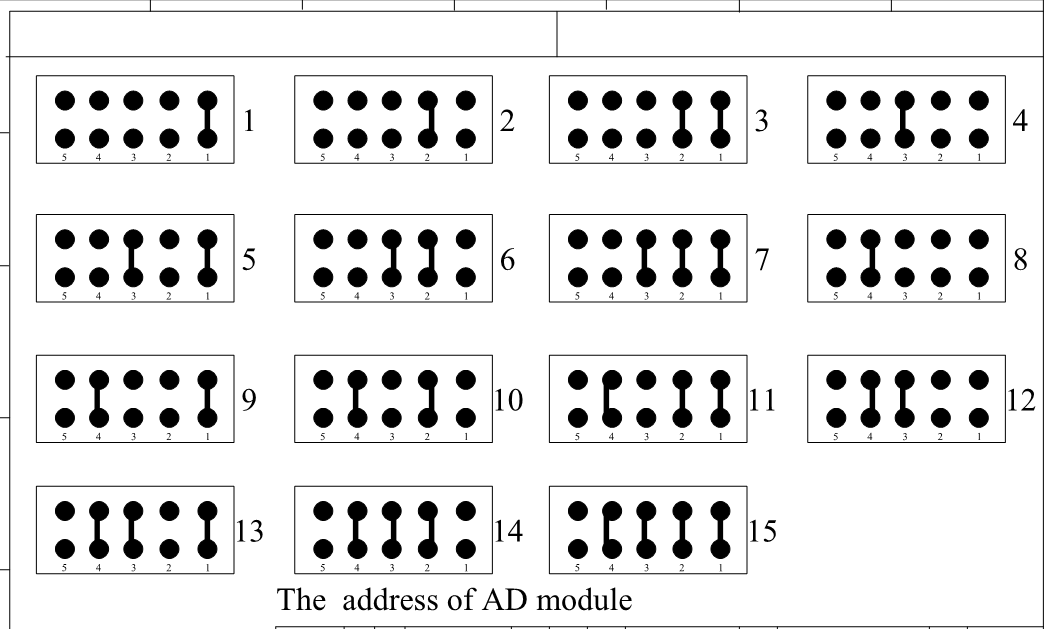

AD modular card to be coded instruction:

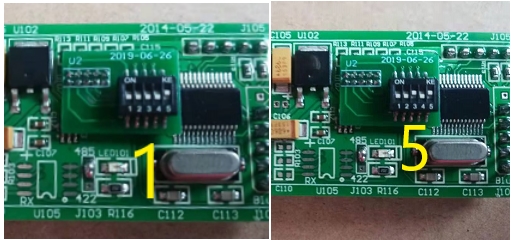

No. 1 modular card and no. 5 card as below:

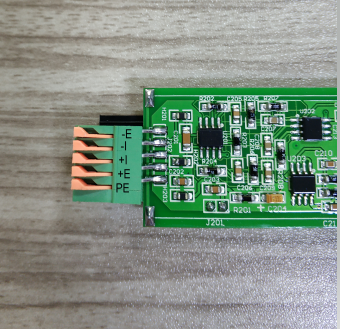

Load cell wiring as below:
Different brand load cell wiring:
HBM load cell:

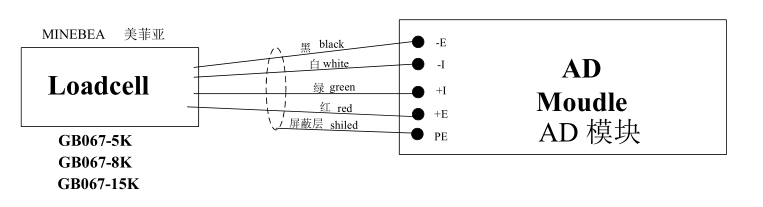

Minebea load cell wiring:

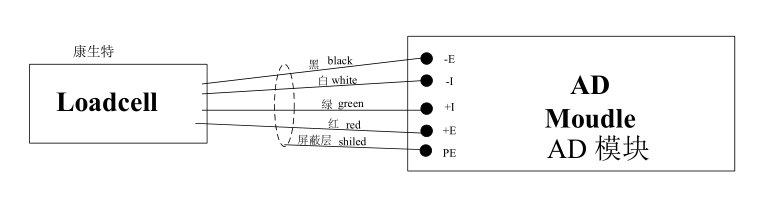

Kangsente load cell wiring:
