Fluorescent inspection; Disinfection; Curing and bonding.

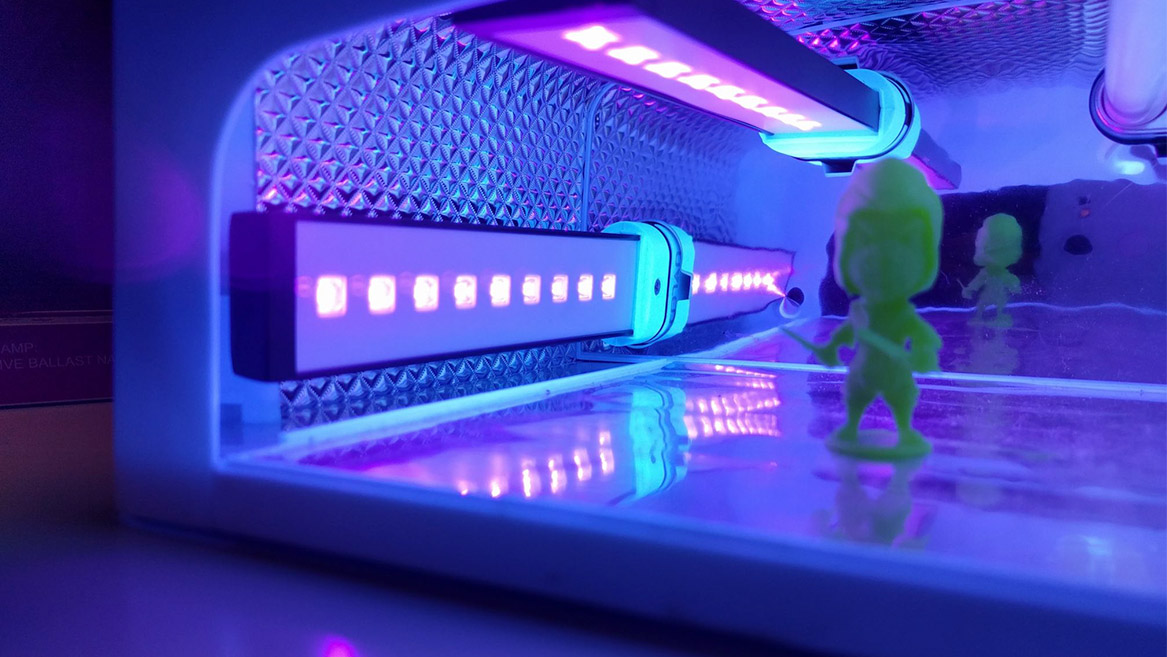

Our wide range of UV LED products, from different LED packages and with 1-100 W of UV power, enable modular and scalable designs for spot, line and array curing applications.

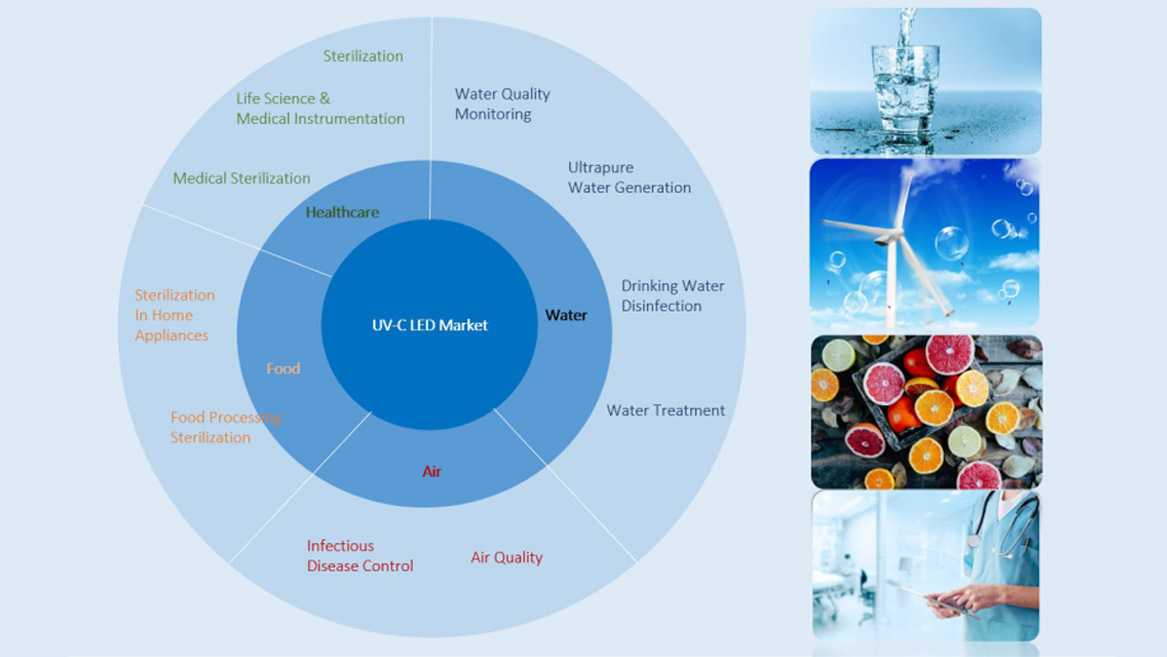

GTLED UV-C LEDs enable applications such as healthcare disinfection, water and air purification, and surface disinfection of baby products and consumer appliances.
| Product Image | Product Type | Color | WL (nm) | Radiation Intensity (mW) | Power (W) | VF (V) | IF (mA) |

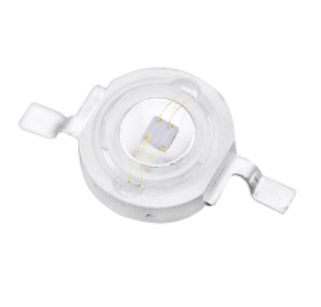

 | GT-PDT | UV / Purple | 360-370 | 100-200 | 1 | 2.8-3.4 | 350 |
| 370-380 | 200-300 | ||||||
| 380-390 | 300-500 | ||||||
| 390-420 | 400-600 | ||||||
| 420-430 | 400-600 |
| Product Type | Product Type | Dimension | WL (nm) | Radiation Intensity (mW) | Viewing Angle (°) | VF (V) | IF (mA) |

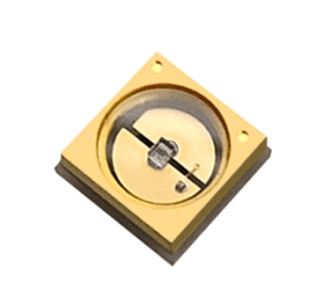

 | GT-DUVTK3535-275-GA0 | 3.7*3.7 | 275±5 | 2-4mW | 120 | 5-7 | 40 |
| GT-DUVTK3535-275-GB0 | 3.7*3.7 | 275±5 | 2-4mW | 120 | 5-7 | 40 | |
| GT-DUVTK3535-275-GB6 | 3.7*3.7 | 275±5 | 2-4mW | 60 | 5-7 | 40 | |
| GT-DUVTK3535-275-GC0 | 3.5*3.5 | 275±5 | 2-4mW | 120 | 5-7 | 40 | |
| GT-DUVST3535-275-GS0 | 3.45*3.45 | 275±5 | 2-4mW | 120 | 4-6.5 | 20 | |
| GT-DUVST3535-275-GS0 | 3.45*3.45 | 310±5 | 2-3mW | 120 | 5-8 | 40 |
