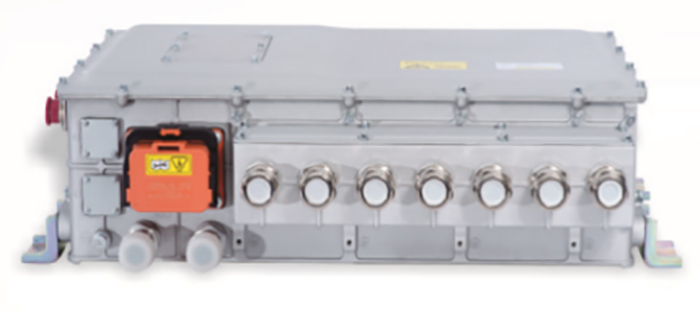

Five-in-one integrated motor controller (Motor Controller Unit+ gas pump+ oil pump +DC/DC+ Power distribution unit PDU)
V6-H-4D120G/V6-H-2D60G
Item | Specification | |
Adaptable motor type | Three phase asynchronous motor; Permanent magnet synchronous motor | |
Applicable vehicle types | Minibus, bus,cargo van | |
Product types | V6-H-4D120G | V6-H-2D60G |
Rated input voltage | DC 540V | DC 336V |
Rated power | 120kw&5.5kw&5.5kw&3kw | 60kw&3.7kw&3.7kw&1.5kw |
Input voltage range | DC 350V-750V | DC 200V-450V |
Rated output current | 235A&13A&13A&110A | 235A&13A&13A&110A |
Maximum output current | 352A&19.5A&19.5&130A | 352A&19.5A&19.5&130A |
Output frequency range | 0～1000Hz | |
Control accuracy | 1:1000（Encoder mode） | |
Protection level | IP67 | |
Cooling type | Water cooling | |
Outline dimension | 680*458*180（mm） | |
