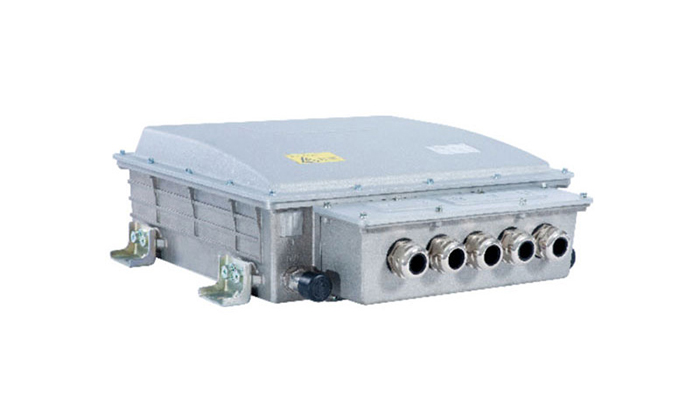

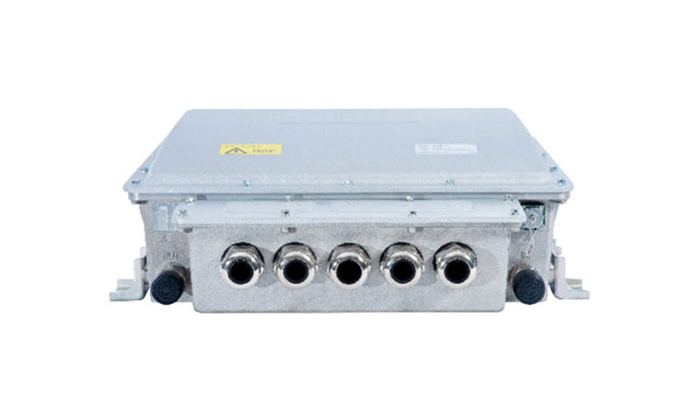

Master Drive Motor Controller
V6-H-4D250G/V6-H-4D200G/V6-H-2D90G
Item | Specification | ||
Adaptable motor type | Three phase asynchronous motor; Permanent magnet synchronous motor | ||
Applicable vehicle types | 9-18m bus,railway train,cargo van, heavy truck | ||
Product types | V6-H-4D250G | V6-H-4D200G | V6-H-2D90G |
Rated input voltage | DC 540V | DC 540V | DC 336V |
Rated power | 250kw | 200kw | 90kw |
Input voltage range | DC 350V-750V | DC 350V-750V | DC 200V-450V |
Rated output current | 470A | 380A | 350A |
Maximum output current | 705A | 570A | 525A |
Output frequency range | 0-1000HZ | ||
Control accuracy | 1:1000（Encoder mode） | ||
Protection level | IP67 | ||
Cooling type | Water cooling | ||
Outline dimension | 552*540*177（mm） | ||
