Product Details
Electric mini lifting truck crane
Applications
ELECTRIC WINCH HOIST DC12V
Compact, easy to install
Max loading and unloading capacity:1000lbs
Simple to operate
360° Free manual rotation
All shafts and pins stainless steel
Product Parameter:
Single line Lifting Capacity(maximum) | 500kg |
Double-line Lifting Capacity(maximum) | 800kg |
Lifting Height Max.Std.(base to hook) | 1940mm |

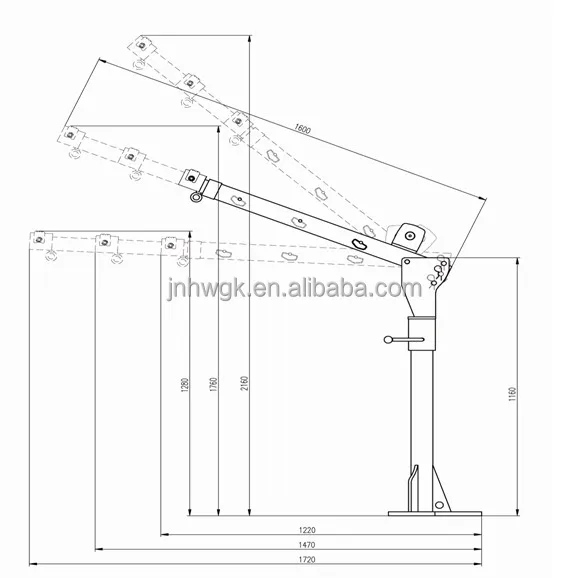

Reach Max.(from center of rotation) | 1490mm (see Figure 3) |
Rotation (continuous) with Brake | 360° Manual |
Lifting Cable | 4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m—1pc(for double-line lifting) |
Line speed with No Load | 3.6m/min single line |
Power Requirements | 12V DC 125 amps |
Switch Cable | 4.2m |
Mounting Base | 250x250x18mms |
Mounting Bolt Hole Pattern | 170x170mms |
Net Weight of Crane (LBS) | 58.5KGS |

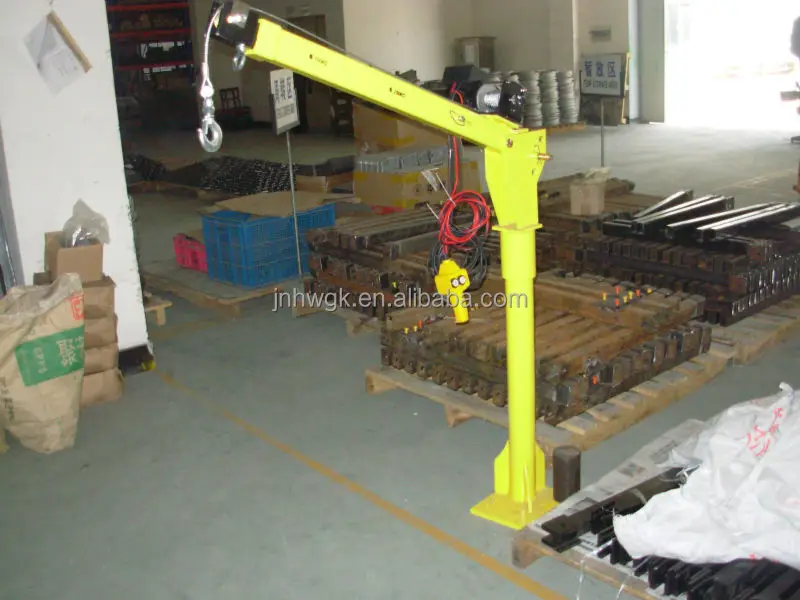

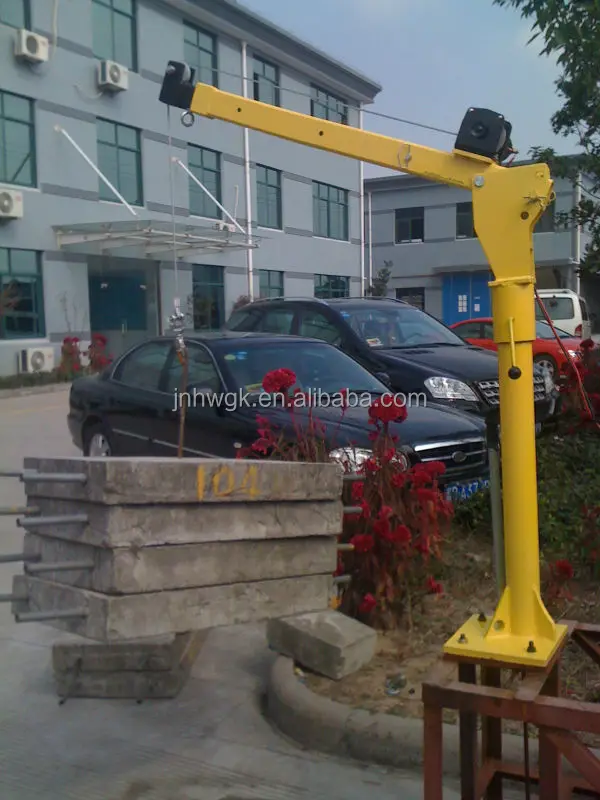

Real product show
