2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch
1. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch application:
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,changeover of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and changeover switch of machinery and welding machine.
function: Control switch of switchgear, motor, instrument, machinery and welding machine.
2. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch features:
1) 7 position (Attention:we can supply 1,2,3,4,5,6,7,8,9,10... positions )
2) operation angle: spring return,limited movement or limited movement with spring return.
3) as for numbers of layers and other needs for product ,we can also customize for you.
Certificate: CCC,CE, RoHS;
Diagram for the type of plate and handle:
 |
Introdution for the type and meaning of products:
|
3. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch technical parameter:
1. | rated voltage | below 440V |
2. | rated current | 10A |
3. | frequency | AC50HZ |
4. | No.of poles | can be customized |
5. | No.of layers | make as required with circuit diagram |
6. | panel size | 30*30mm,48*48mm,64*64mm,88*88mm |
7. | colour of handle | black,white,red,grey |
8. | Working temperature | -25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
9. | Working height | ≤2,000m |
10. | Relative humidity | ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
11. | Instalation conditions | polution class III |
12. | Mechanical life | 100000 times |
13. | Electrical life | 30000 times |
14. | Operative frequency | 120times/hour |
15. | transform angle | 30°/45°/60°/90°/120°/135°/150°/180° |
4. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch dimension and installation:
|
|

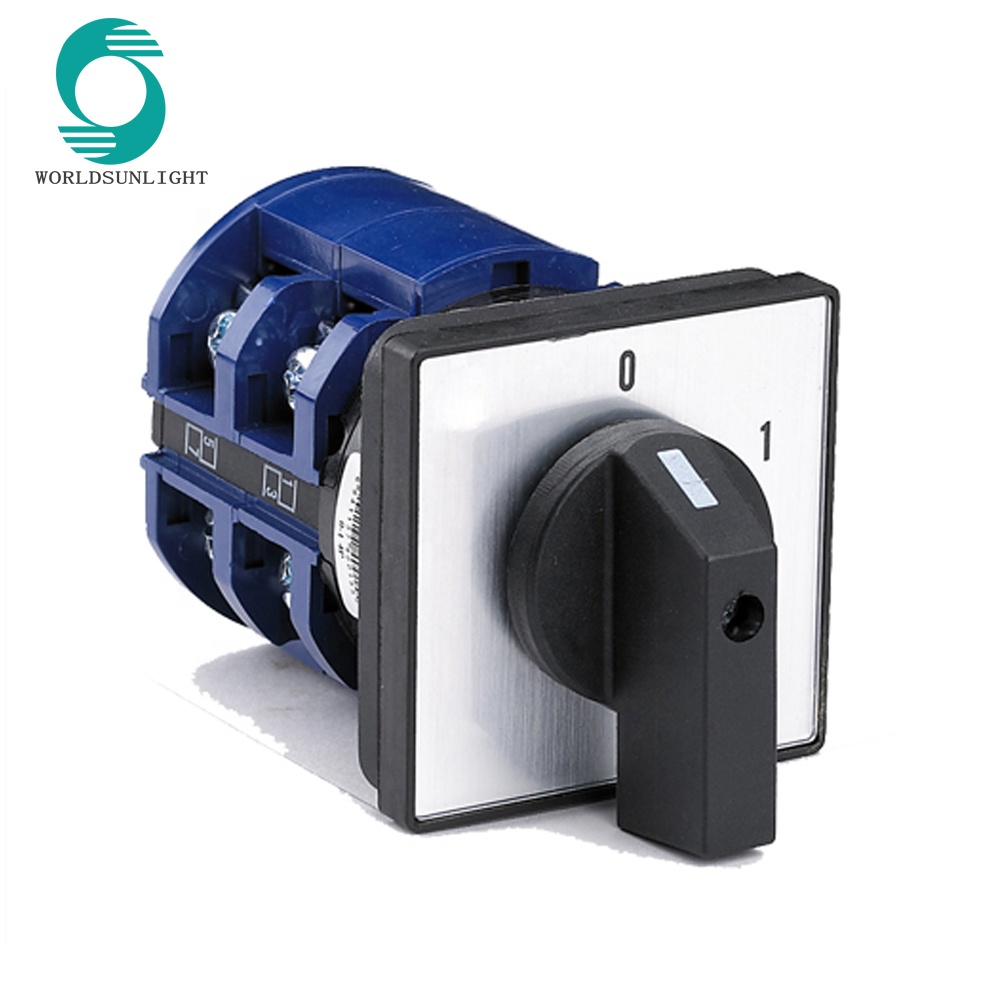

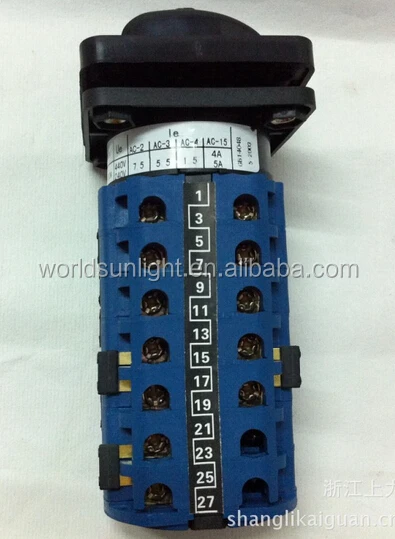

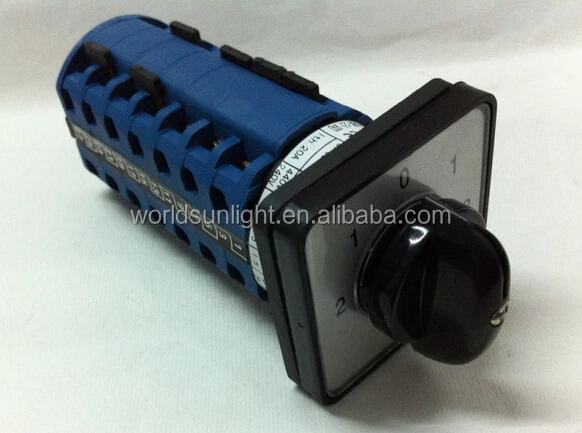

5. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch pictures:
|
|
|
|
6. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch packaging:
Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)
|
7. 2015 new IP65 control of motors LW26 series 10 amp 7 position rotary switch shipping:
TNT/EMS/UPS/DHL/FEDEX
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of rotary switch. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
