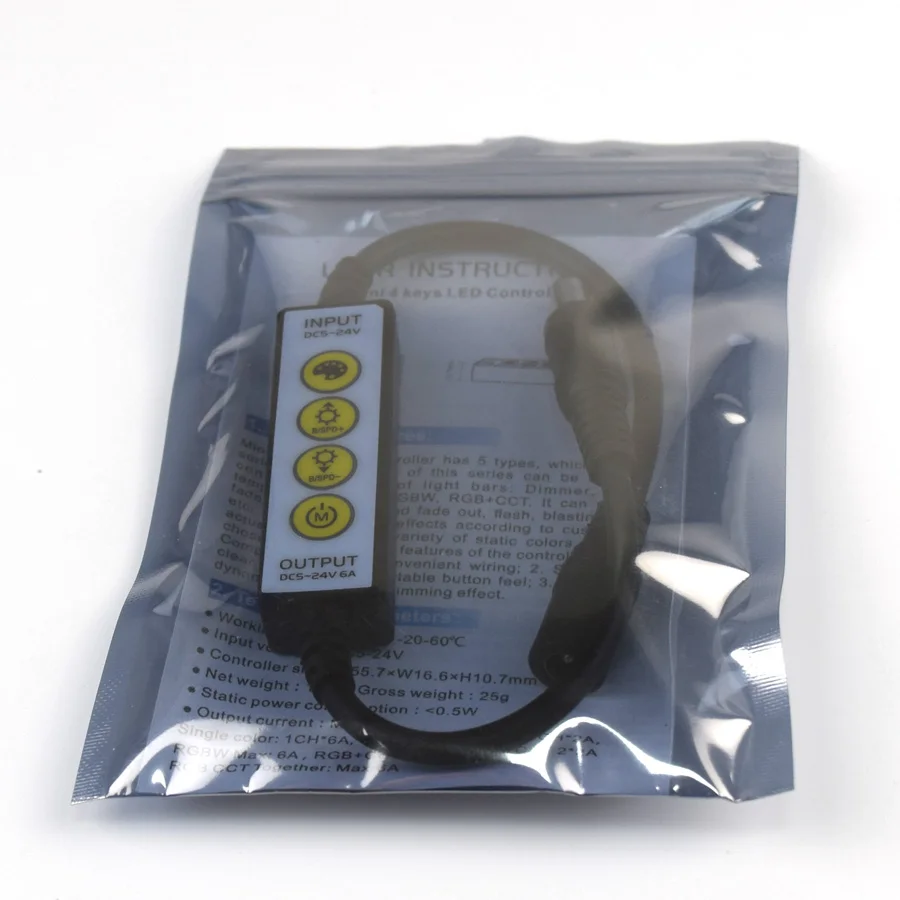

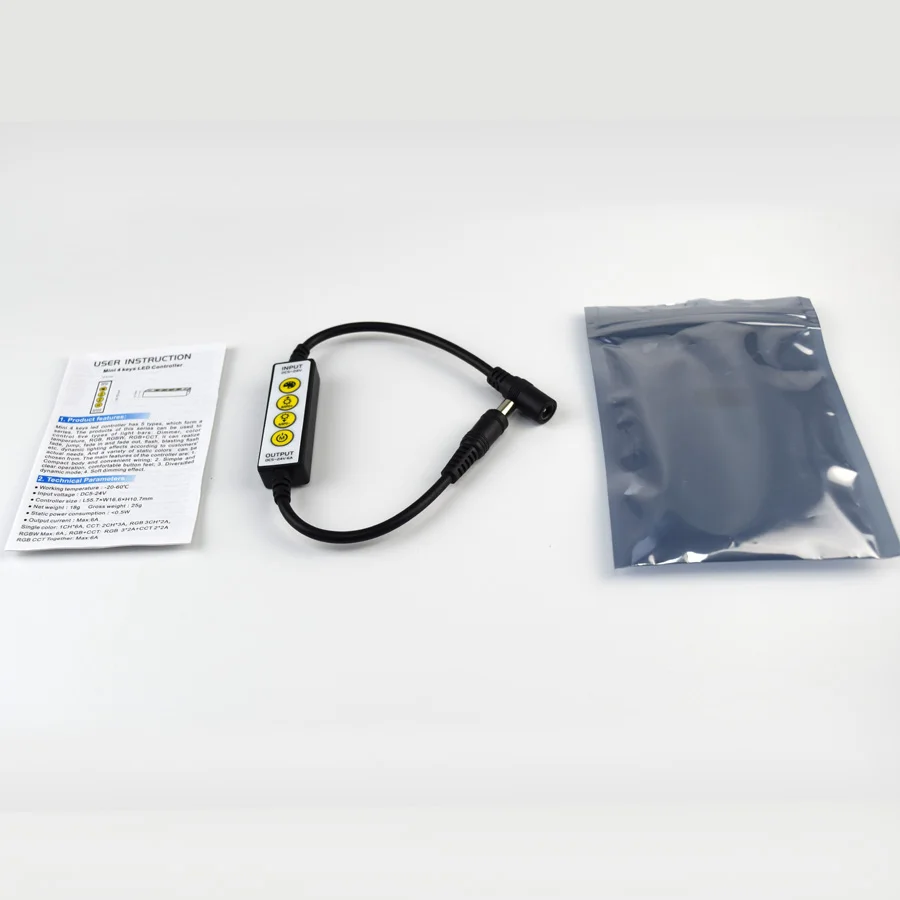

Mini 4 keys LED Controllers have 5 types: Single color, color temperature, RGB, RGBW, RGB+CCT.

Mini 4 keys LED Controllers have 5 types:  Single color, color temperature, RGB, RGBW, RGB+CCT.

It can realize fade, jump, fade in and fade out ,flash, blasting flash etc.

Dynamic lighting effects according to customers" actual needs. And a variety of static colors can be chosen from.

The main features of the controller are:

1. Compact body and convenient wiring;

2. Simple and clear operation, comfortable button feel;

3. Diversified dynamic mode;

4. Soft dimming effect.



 Technical Parameters:



Working temperature:-20-60℃
Input voltage:DC5-24V
Connection mode:Common anode
controller size:L55.7×W16.6×H10.7mm
Net weight:18g
Gross weight:25g
Static power consumption:<0.5W
Output current:Max: 6A Total

Single color : 1Channelx6A

CCT: 2 chanel 3A

RGB: 3 channel 2A

RGBW: 4 Channel  2A

RGB+CCT: RGB 3x2A+CCT 2x2A

Note: If the controller"s output wire sequence which you get are different from above , please according to the actural controller"s

wire sequence to corresponding LED Lights, just amke sure the arrows of controller and light are inserted accordingly









Green Lantern Optoelectrical Light Factory  Profile:

1) We are a large LED lighting manufacturer for 12 years

2) We founded in 2005 and already established 3 factories and 1 trading company

3) We specialize in producing LED lights, such as Smart led bulb,Milight serious,LED Rope Lights, Rope Lights, LED Panel light,LED Controller,LED tube,LED downlight..

4) We focus on Quality manufacture our lights in accordance with CE,GS, RoHS ,SAA ,TUV certification

5) We meet and exceed global quality standards

6) We now ship well over half of our output to countries and regions worldwide

1. Payment: T/T, Western Union, Paypal available.
2. Lead time: Normally 3~5 working days.
3. Samples can be delivery within 2~3 working days.
4. Shipping cost are quoted according to your requirement.

5. Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc.
6. MOQ:small order is available.

1.How could I trust you?
We are Alibaba gold supplier,registered in administration,supervised by Alibaba rule and Chinese law.
2.How about your company ability?
We have 2 professional production line,4 sets Yamaha chip mounter,50-100 workers,
We can offer 50,000 pcs tubes,100,000pcs bulbs per month at least.
3.How about payment?
We accept payment as below:
T/T:Bank transfer,30% deposit,70% balance before shipping for order >20,000USD
West Union:Fast,low charge
L/C:Only for order >50,000USD
Alibaba Escrow:Protected by Alibaba
Paypal:Good way for sample order
