Business lighting decoration
A variety of color choise, automatic coloring, manual coloring, increase the ambient atmophere. Suitable for office space, hotels, tourist attractions, shopping malls, concerts, KTV, etc.
Brand： |
none |
Address： |
Guangdong Shenzhen |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
❈ Product description
Product Features

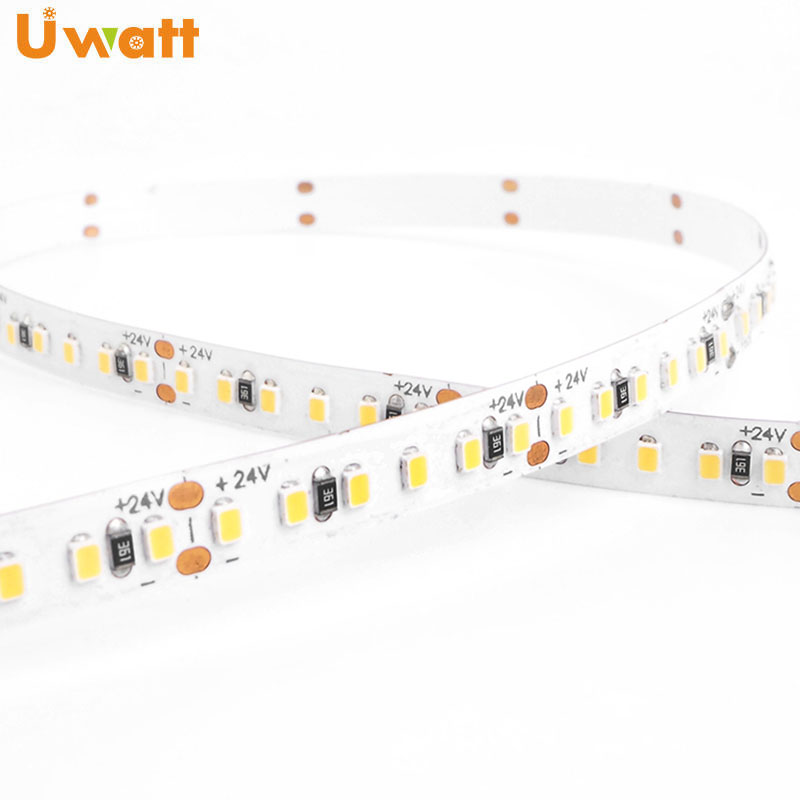

• 2216 SMD is a very smaller slim package, much more suitable for very low profile, without LED dot, delivering smooth light beam
• standard CRI90-95, CRI95-97 is also available
• standard CRI90-95, CRI95-97 is also available
❈ Product parameters
| Part Number | UN-FPC-E2216x-xxD-12/24V |
| IP Rating | IP20 IP65 IP67 IP68 |
| Colour | Warm White, Nautral White, Cool White |
| Voltage | DC12V 24V |
| Light beads | 2216 or 2110 |
| Power rating | 8-40W difference power for choice |
| CRI (Ra>) | ＞90, 95, 97 |
| LED Qty(LEDs/m) | 120, 240, 300, 420 |
| Beam Angle(degree) | 120 |
| CCT/nm | 3000k, 4000k, 6000k |

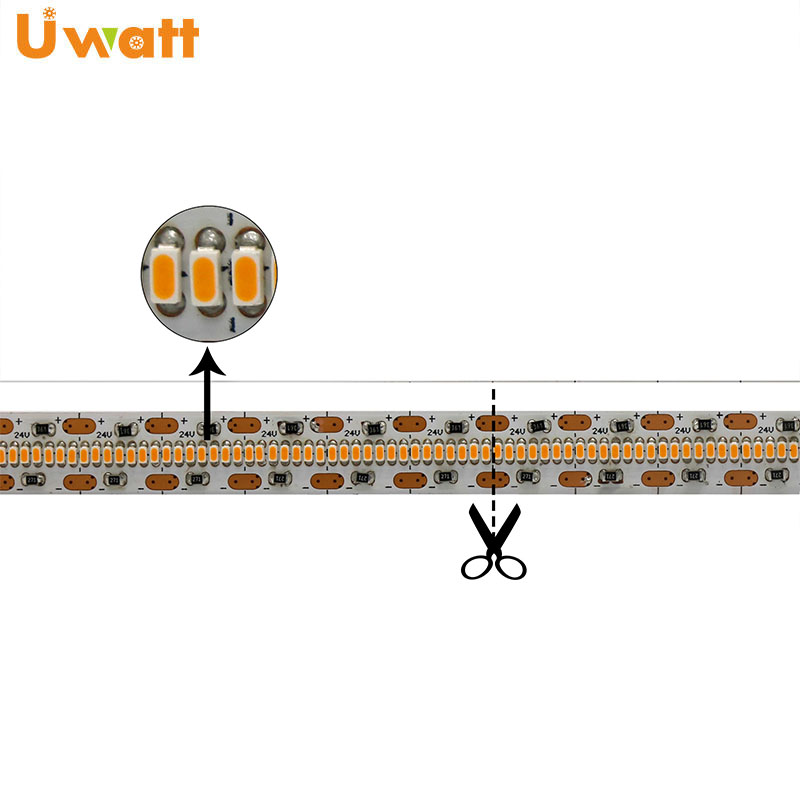

| Min. Cutting | 5cm/6LEDs, 2.5cm/3LEDs(120leds/m) |
| Max. Length | 5m |
| Operating Temperature | -20-50℃ |
| Storage temperature | 0-60℃ |
| Environment humidity | 40%-70%RH |
| Lamp Luminous Flux(lm): | 7-8lm/led |
| PCB Width | 10mm or Customization |
| Certification: | CE, RoHS |
| PCB Color: | White PCB |
| Working Lifetime(Hour): | 50000 |
| Packeting: | 5 Meters/Roll |
| Warranty: | 3 Years |
| Service | OEM, ODM , Customization |

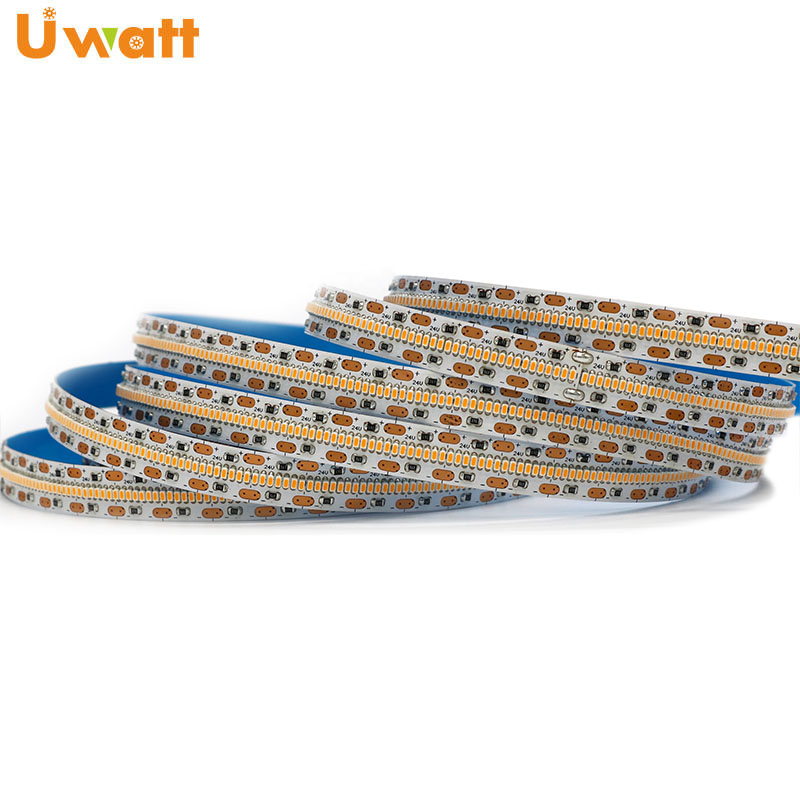

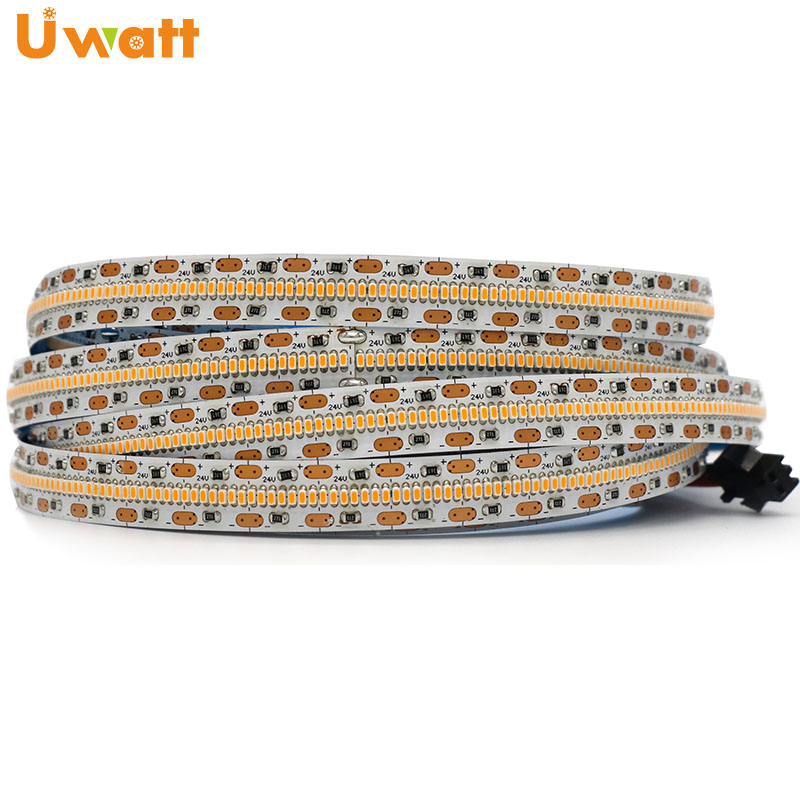

2216 LED strip is high density line array, it has execellent performance in luminous uniformity. And it could achieve low height linear lighting. Designed for 300 leds/m, 10mm per cuttable, cutting is more flexible. The heat dissipation is also very good.
❈ product Applications

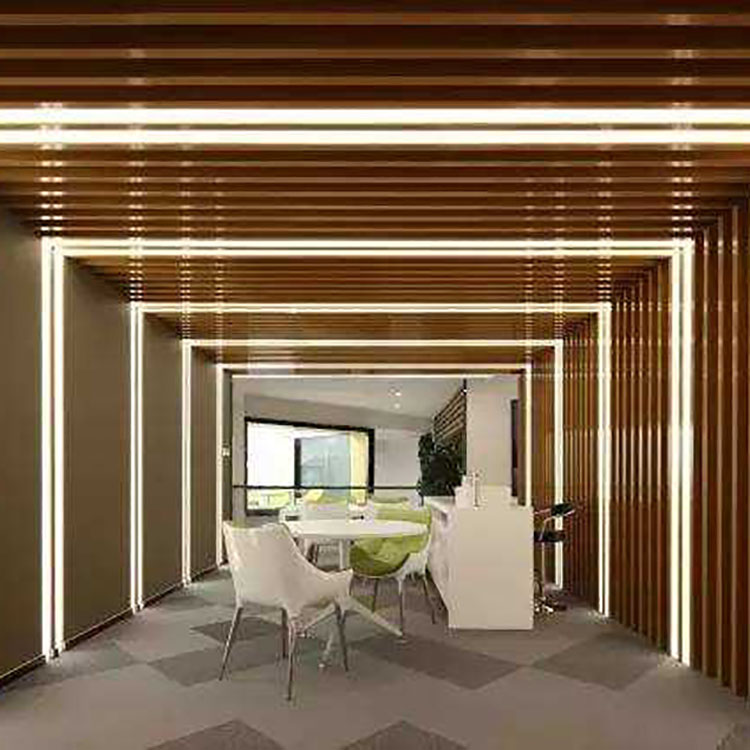

Household decoration
Best choice for decoration: decorate any place and have fun with strip lights 300LEDs with dimming and brightness controls, suitable for indoor lighting and decor. Such as kitchen, under cabinet, dining room, bedroom, etc.

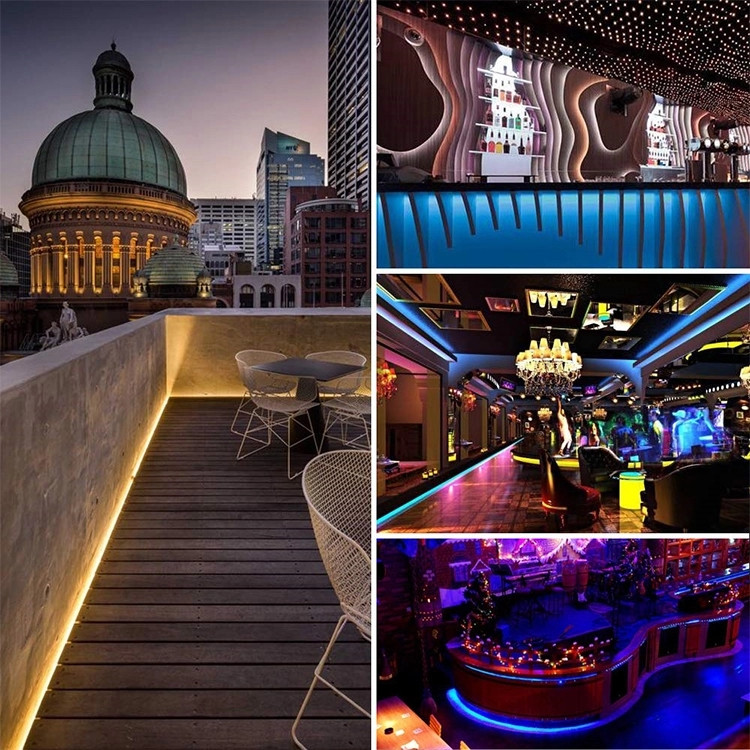

Outdoor decoration
Suitable for outdoor LED Lighting and decoration, assemble these LED strips in a simple and easy way and install them where you need them. Such as garden, patio, balcony, Can be custom the size and waterproofing grade to fit your need.
