Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: HW-30

Model Number:: HW-30

Usage:: Coal

Voltage:: gasoline engine

Power(W):: 5.8kw

Dimension(L*W*H):: 30.48*28.02*30.48cm(engine)

Weight:: 25KGS

Certification:: ISO

Application:: portable geological backpack diamond core sample drilling rig

rock core drilling diameter:: 40mm

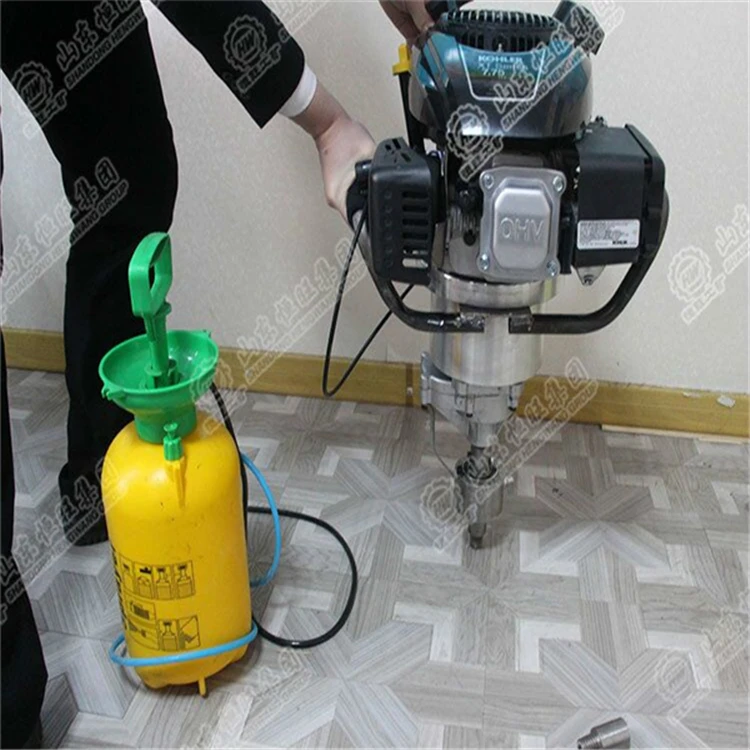

Product name:: portable geological backpack diamond core sample drilling rig

Water consumption:: 14.4L/hr

Oil consumption:: 0.3L / min

drilling core diameter:: 32-108mm

Drilling rig power:: 7.75hp

Maximum drilling depth:: 30m

Gasoline/Petrol engine:: KOHLER

Rated Power:: 7.75hp

After-sales Service Provided:: Overseas third-party support available

Warranty:: 1Year

Supply Ability

Supply Ability:: 2500 Set/Sets per Month portable geological backpack diamond core sample drilling rig

Packaging & Delivery

Packaging Details: regular packaging

Port: qingdao/dalian/ningbo/tianjing

Lead Time:: with 3 day

Product Description

Mineral Exploration---Geochemical exploration to shallow sampling probe veins

Geoscience Research

Geotechnical Enginerring

Engineering Investigation and Detection

Exploration of Oil Field

Model： HW-B30

Drilling diameter ： φ32-108mm

Drilling depth ：30m

Adaptation Geological：soil, loose cover, all kinds of rock

Consumption： about 0.3L / min

Drill diameter ： φ32mm

Drill length ：750mm (with joints)

Drill pipe material： titanium

Drill pipe weight：about 1.1kg

Gasoline brand ： KOHLER

Gasoline models： XT Series 775

Gasoline engine power ：7.75HP

Rated speed ： 2800rpm

Machine weight ：about 25kg
