60w 80w 100w 120w 150w 180w led shoebox retrofit kit, led parking lot lighting retrofit

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Street Lights
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 21:39

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-277V 50/60Hz
Lamp Luminous Flux(lm):
7200
CRI (Ra>):
80
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, RoHS
Warranty(Year):
5
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
RT-060-AW-W-01
Color Temperature(CCT):
Pure White
Lamp Body Material:
Aluminum
LED Light Source:
Seoul 3030 LED
Lamp Luminous Efficiency(lm/w):
120
Beam Angle (degrees):
120
Color:
W/NW/WW
Driver:
Sosen driver
CCT:
5500-6500K
LED Qty:
80pcs
Item:
led parking lot lighting retrofit
Item Type:
Street Lights
Supply Ability
Supply Ability:
8000000 Piece/Pieces per Month simple is available for the led retrofit kit
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Yantian

60w 80w 100w 120w 150w 180w Led Shoebox Retrofit kit, Led Parking Lot Lighting Retrofit

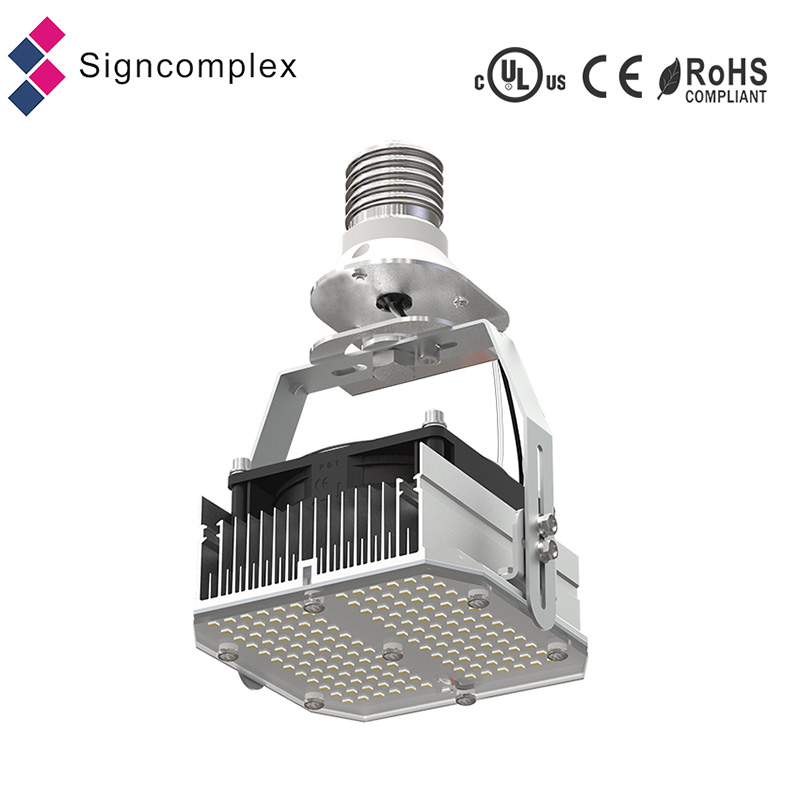

LED Retrofit

RT-60/80/100-AW

RT-120/150/180-AW



Discription:

LED Retrofit is designed as economic replacement for HPS.Its adjustable U bracket suit to horizontal and vertical mogul(E40) holder.It’s more efficient than LED corn light no matter in high bay,shoe box,street light or wall pack for its one face emitting.





Feature:

1.An extreme economic retrofit,50% cost down compared to changing whole luminairs;

2.Retrofit is able to work in a sealed fixture and thermal detector could protect the LED while fan fail to work;

3.Standard E40/(Mogul)base,great compatibility;

4.Up to 120lm/w;

5.Using small drive current,LED package will have a longer lifespan;

6.Sosen driver ,Seoul 3030 LED,Taiwan Sunon fan.



Specifications:

ModelCCTColorLumen(lm)
(±10%)
Beam angle
(°)
LED TypeLED Qty.Power
(±10%)
Voltage,
Frequency
CRIPF
RT-060-AW-W-015500-6500KWhite7200120°SMD303080pcs60AC100-277V
50/60Hz
>80≥90
RT-060-AW-NW-014000-4500KNeutral white7200
RT-060-AW-WW-012700-3200KWarm white6600
RT-080-AW-W-015500-6500KWhite9600120°SMD3030100pcs80AC100-277V
50/60Hz
>80≥90
RT-080-AW-NW-014000-4500KNeutral white9600
RT-080-AW-WW-012700-3200KWarm white8800
RT-100-AW-W-015500-6500KWhite12000120°SMD3030130pcs100AC100-277V
50/60Hz
>80≥90
RT-100-AW-NW-014000-4500KNeutral white12000
RT-100-AW-WW-012700-3200KWarm white10500
RT-120-AW-W-015500-6500KWhite14400120°SMD3030150pcs120AC100-277V
50/60Hz
>80≥90
RT-120-AW-NW-014000-4500KNeutral white14400
RT-120-AW-WW-012700-3200KWarm white13000
RT-150-AW-W-015500-6500KWhite18000120°SMD3030184pcs150AC100-277V
50/60Hz
>80≥90
RT-150-AW-NW-014000-4500KNeutral white18000
RT-150-AW-WW-012700-3200KWarm white16500
RT-180-AW-W-015500-6500KWhite21600120°SMD3030248pcs180AC100-277V
50/60Hz
>80≥90
RT-180-AW-NW-014000-4500KNeutral white21600
RT-180-AW-WW-012700-3200KWarm white19800













Application:

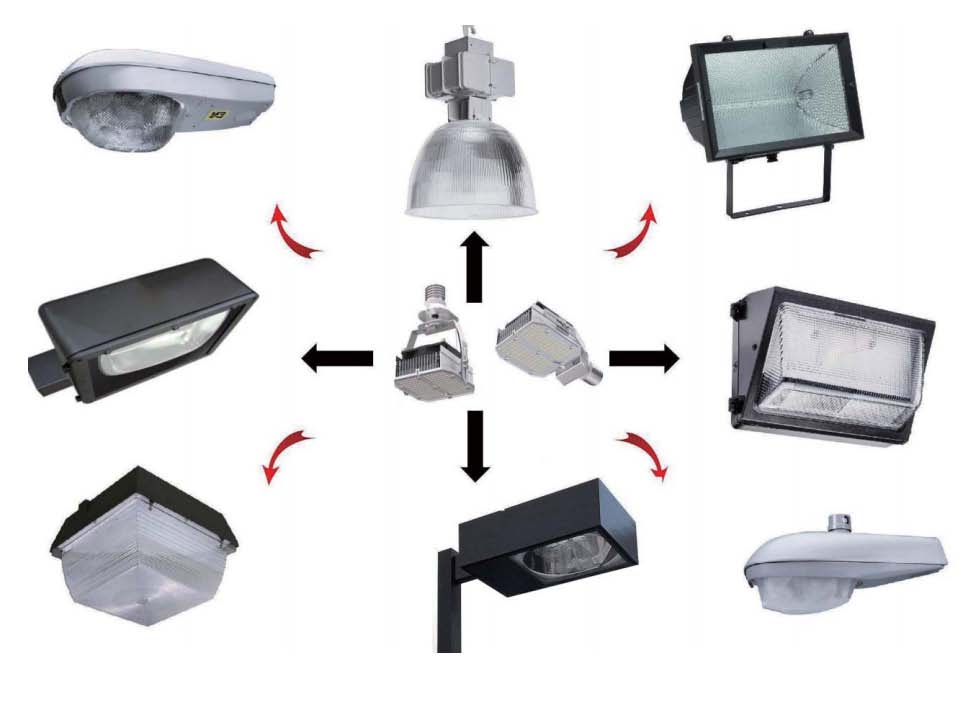

Replacement of traditional HPS and MH LEDs in gas station lamp,highbay light,wall pack,street lamp,project lamp,shoebox,etc.





Main products
Certifications



Company Image











Sales Team



Production line



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- panel lights
- linear light
- high bay
- corn bulb

- tube

-LED controller

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
