Product Details
2- We aren’t kidding around, that’s 256 individually addressable LEDs on a 160mm x 160mm flexible panel.
3- You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,
thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.
4- These panels require a 5V low voltage input for power which needs to be able to source a good amount of current– up to 5A in most uses (5A if all LEDs are set to bright white, which is NOT recommended).
5- Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input /output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.
6- Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
7- Needless to say, do NOT fold this matrix in half!
LED Chip SMD5050 RGB LED chip
IC Chip WS2812B(WS2811 IC built-in 5050 RGB LED chip)

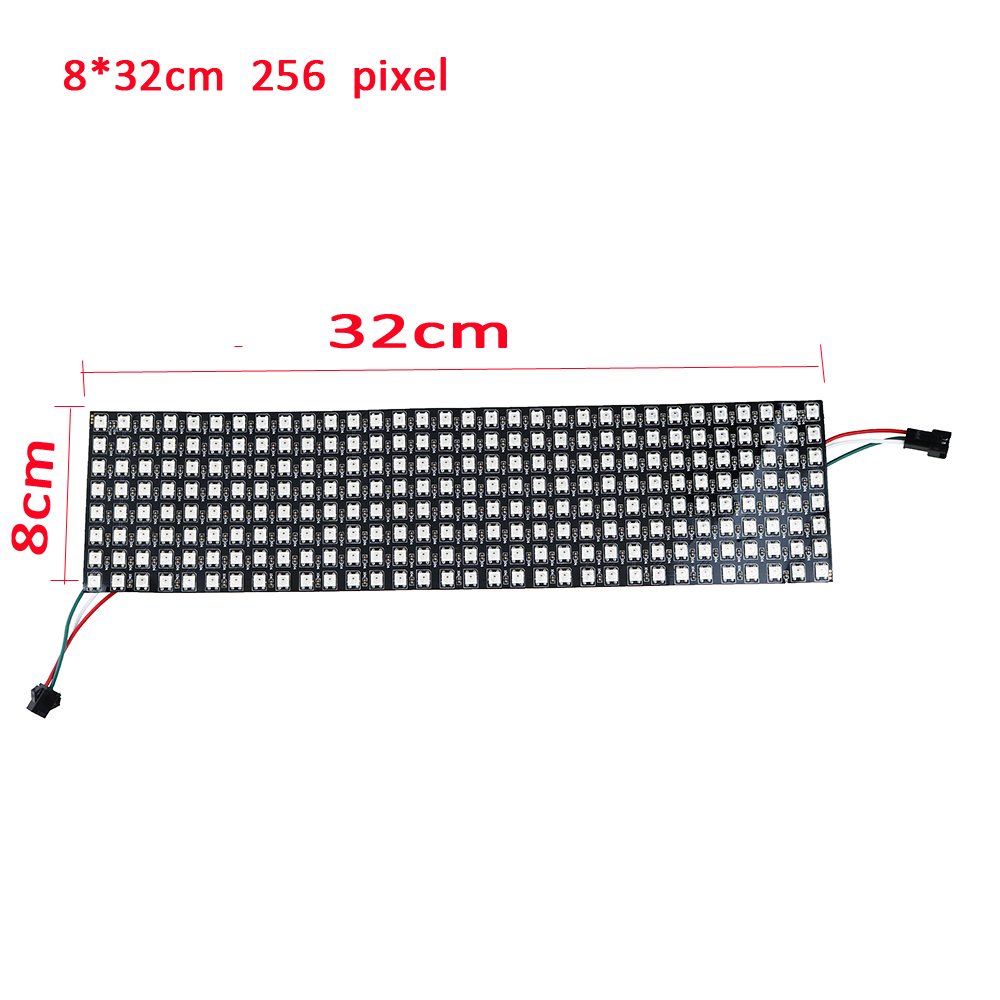

LED Quantity 256LEDs/pcs, (8x32 Pixels)
Input Voltage DC5V
Watts 77W/Max
IP Rate IP20(non-waterproof)
PCB Color Black PCB
View Angle 140°
Color Addressable full color
PCB Pitch 10mm
PCB Size 80mmx320mm
Warranty 3 years
Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting
we can manufacture different design for you as below
| Model | LED Quantity | Pixel Quantity | IC Type | Watt | Volt | Light Color | PCB Width | PCB |
| 8*8 | 64pcs SMD5050 | 64Pixel | WS2812B | 19.2W | DC5V | Full Colour | 90*90MM | Flexible |
| 16*16 | 64pcs SMD5050 | 64Pixel | WS2812B | 19.2W | DC5V | Full Colour | 160*160MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 160*160MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 170*170MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 160*160MM | Rigid |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 240*240MM | Flexible |
| 8*32 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 80*320MM | Flexible |
| 33*90 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 330*90MM | Flexible |
| 50*20 | 1000pcs SMD5050 | 256Pixel | WS2812B | 300W | DC5V | Full Colour | 500*200MM | Flexible |
| 30*32 | 660pcs SMD5050 | 660Pixel | APA102 | 132W | DC5V | Full Colour | 300*320MM | Flexible |
| 30*21 | 280pcs SMD5050 | 280Pixel | APA102 | 56W | DC5V | Full Colour | 300*210MM | Flexible |
| 30*21.5 | 150pcs SMD5050 | 150Pixel | APA102 | 30W | DC5V | Full Colour | 300*215MM | Flexible |
| 30*21.5 | 70pcs SMD5050 | 70Pixel | APA102 | 14W | DC5V | Full Colour | 300*215MM | Flexible |
| 23*23 | 64pcs SMD5050 | 64Pixel | APA102 | 13W | DC5V | Full Colour | 230*230MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | APA104 | 77W | DC5V | Full Colour | 160*160MM |
