Product Details
|
|
|
|
| |
Item NO | 0400A08-01 | 0400B12-01 | 0400C20-01 | 0400D40-01 | 0400E60-01 |
Power | 8W | 12W or 15W | 20W or 25W | 30W or 40W | 50W or 60W |
LED Lamp | 8W LED 6000K-6500K | 12W /15W LED 6000K-6500K | 20W /25W LED 6000K-6500K | 30W/40W LED 6000K-6500K | 50W/60W LED 6000K-6500K |
Lamp Size | 465*325*70mm | 630*325*140mm | 875*325*140mm | 1120*325*140mm | 1120*450*145mm |
Solar Panel | 16V 16W, Mono-Crystalline | 16V 20W, Mono-Crystalline | 16V 33W, Mono-Crystalline | 16V 45W, Mono-Crystalline | 16V 75W, Mono-Crystalline |
Battert Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
Charging time | 6-8 hours | ||||
Discharging time | 20-24 hours | 30-36 hours | 30-36 hours | 30-36 hours | 30-36 hours |
Lumen | 100lm/w | ||||
Material | Aluminum Alloy | ||||
Install Height | 2-4m | 3-5m | 5-7m | 5-7m | 6-8m |
product description

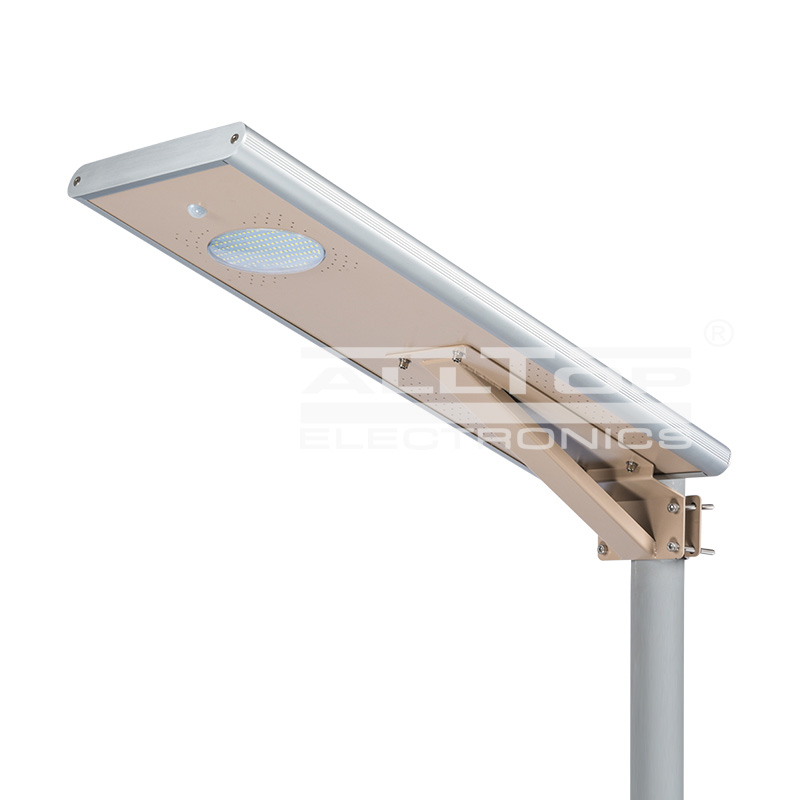

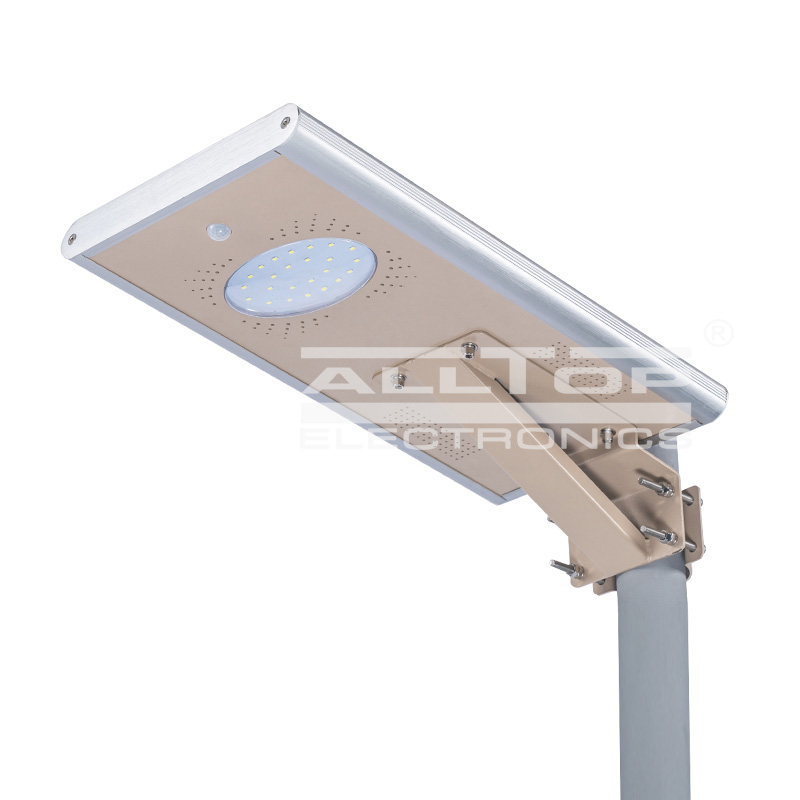

solar street light
All-in-one design and charged by solar, so the lighting kits are completely wireless and easy to be mounted.
The applications for solar powered outdoor lighting systems are endless. These units can be used for: Security and safety lighting, rural area lighting, Dock lights, Park lighting, Parking lot lighting, Parkway lighting, Walkway lighting, Street lighting, Transit Lighting, Outdoor area lighting, Military and civil security and so on. The costs of trenching and installing underground wiring often make a solar street lighting system an economically feasible lower cost option.
The applications for solar powered outdoor lighting systems are endless. These units can be used for: Security and safety lighting, rural area lighting, Dock lights, Park lighting, Parking lot lighting, Parkway lighting, Walkway lighting, Street lighting, Transit Lighting, Outdoor area lighting, Military and civil security and so on. The costs of trenching and installing underground wiring often make a solar street lighting system an economically feasible lower cost option.
LED Source
The LED chip is a semiconductor chip that emits light and is not easily broken, so that its service life can reach 50,000 hours, while the ordinary incandescent lamp has a service life of only one thousand hours;
PIR Sensor
light sensor(solar panel)：turns ON automatically at dusk and OFF at dawn Motion(PIR) Sensor：Stay on dim light,and becomes 100% brightness only when motion detected(when people passes by).When people passes away, it will be 30% brightness.
High-Efficiency Heat Dissipation
Offers high-efficiency heat dissipation
Airon exchange in the body
Reduce the LED and drive operating temperature
Airon exchange in the body
Reduce the LED and drive operating temperature
Solar panel
High conversion solar panels
Large area light plate, super conversion, charging faster
Adopt polycrystalline silicon volt plate, cut and cut the whole piece, high photoelectric conversion efficiency, automatic charging, can also store electricity well in cloudy and rainy days
Large area light plate, super conversion, charging faster
Adopt polycrystalline silicon volt plate, cut and cut the whole piece, high photoelectric conversion efficiency, automatic charging, can also store electricity well in cloudy and rainy days
Lithium battery
Lithium battery advantages:
1. Green and environmental protection: no toxic heavy metal substances such as lead, mercury and cadmium are produced.
2, lithium-ion battery can be charged and discharged at any time, unlike nickel-metal hydride, nickel-tin
battery, must wait until the power is exhausted.
3, the environmental temperature difference changes adaptability: can be used in the environment of -20 ° C ~ 60 ° C,
4, the service life is relatively long: the service life can reach more than 6 years
1. Green and environmental protection: no toxic heavy metal substances such as lead, mercury and cadmium are produced.
2, lithium-ion battery can be charged and discharged at any time, unlike nickel-metal hydride, nickel-tin
battery, must wait until the power is exhausted.
3, the environmental temperature difference changes adaptability: can be used in the environment of -20 ° C ~ 60 ° C,
4, the service life is relatively long: the service life can reach more than 6 years
Adiustable interface & Four fixing screws
Made of Aluminum Allouy material, this solar light is IP65 waterproof so it can withstand rain and other extreme weather conditions
Packing Adventages
Using package color inner boxes
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Applications
