Aluminum IP67 waterproof machine work lights for cnc machine lighting

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-11-19 21:41

Other Products
ONN M4 Tri-color Led Warning Light for CNC Machine
¥Negotiable 33Views

ONN M4 Tri-color Led Warning

Recommend
Gooseneck Lamp Magnetic Base ONN-M3M 24VAC/DC 100V-240VAC Flexible Goose Neck
¥Negotiable 32Views

Gooseneck Lamp Magnetic Base

Recommend
LED tower light M4S Warning Light Tri-color CE Certificate Lamp Tube diameter 50mm
¥Negotiable 30Views

LED tower light M4S Warning

Recommend
ONN M4 Alarm Lighting with Flash buzzer LED Single layer Tri colors 60mm/70mm Lamp Tube Diameter
¥Negotiable 29Views

ONN M4 Alarm Lighting with F

Recommend
ONN-M3S  24V Gooseneck Led Light for cnc Machine CE FCC
¥Negotiable 35Views

ONN-M3S 24V Gooseneck Led L

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Warranty(Years):
1.5
Input Voltage(V):
220
Lamp Power(W):
24
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Working Temperature(℃):
-40 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65, IP65
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
ONN-M9
Light Source:
LED
Item type:
led cold storage fixtures
Anlge:
120 degrees
Work temperature:
-40 to 45 degrees
Dimension:
53*50mm
Installation type:
Lamp clip/fixed by pin
Lamp driver:
Isotated
Power factor:
>0.9
Light efficiency:
100Lm/w,super brightness
Certificate:
CE,IP65
Item Type:
Tube Lights
LED Light Source:
SMD2835
Lamp Luminous Flux(lm):
1800
Color Temperature(CCT):
PW,CW
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
12pcs/CTN,Export packing.
Port
shenzhen

-40 Degrees IP67 LED Cold Storage Fixtures 100-250V Energy Saving CE Hotselling 2015 ONN-M9





Application:

Cold storage,cold room,freezer,beverage,food factory,some place with higher waterproof and moisture-proof requirement,etc.









Product feature



1). Work temperature can get -40° resistant very lower temperature -40deg;

2). Suitable for all kinds of refrigetatory intenior lighting,

3). Once turn on the light, Instant start, no flicker, no frosting;

4). High energy saving, save electricity from the moment when you turn on the fixture;

5). During the lifespan of the lights, they can save more electricity and save your money;

6). No hazardous substances,environment protection;

7). Long lifespan, our lamp get 50000 hours;

8). Imported 3014 beads, thin, small size, low htermal resistance, low light decay, high brightness;

9). Patent protection of fastening structure, no otiose parts, simple and generous, 360 degree adjustment, make install easy;

10). More capaility design, imported capacitance greatly improve the drive"s lifespan; Modular design, once the driving end of life, convenient replacement.

11). Die casting structure, the waterproof adhesive, waterproof silicone, glass and other components fo organic union, make high dissipation, low decay, good themal conducivity;

12). T-shape clip to install, singple and fast.

13). IP65, better waterproof,what we do the IP rating get IP67.

14).Appearance very fashion,installation firm,adopt isolated driver,Power factor(PF) >0.90;

15).we promise 18 months warranty,the lights can used 3-5 years work well;Once if some failured,we solve your problems within 48 hours.





Technical parameter:



Model NO.

ONN-M9-8W-300

ONN-M9-12W-400

ONN-M9-18W-600

ONN-M9-24W-800

LED Quantity

60pcs

108pcs

156/160pcs

192pcs

Power

8W

12W

18W

24W

Luminuous flux

>800lm

>1200lm

>1800lm

>2000lm

LED Modle

SMD3014

SMD3014

SMD3014

SMD3014

Input Voltage

AC100-250V/DC24V;50-60Hz

AC100-250V/DC24V;50-60Hz

AC100-250V/DC24V;50-60Hz

AC100-250V/DC24V;50-60Hz

Color Rendering Index

Ra>80

Ra>80

Ra>80

Ra>80

Color Temperature

4000~6000K

4000~6000K

4000~6000K

4000~6000K

Material

Aluminum profile+glass cover

Aluminum profile+glass cover

Aluminum profile+glass cover

Aluminum profile+glass cover

Protection Grade

IP65

IP65

IP65

IP65

working temperature

-20°C~+45°C

-20°C~+45°C

-20°C~+45°C

-20°C~+45°C

Working Humidity

10-90%

10-90%

10-90%

10-90%

Installation

Lamp clip/fixed by pin

Lamp clip/fixed by pin

Lamp clip/fixed by pin

Lamp clip/fixed by pin

Size

300*53*50mm

400*53*50mm

600*53*50mm

800*53*50mm

LED life time

>50000H

>50000H

>50000H

>50000H

Power factor

>0.9

>0.9

>0.9

>0.9

Lamp driver

Isolated

Isolated

Isolated

Isolated

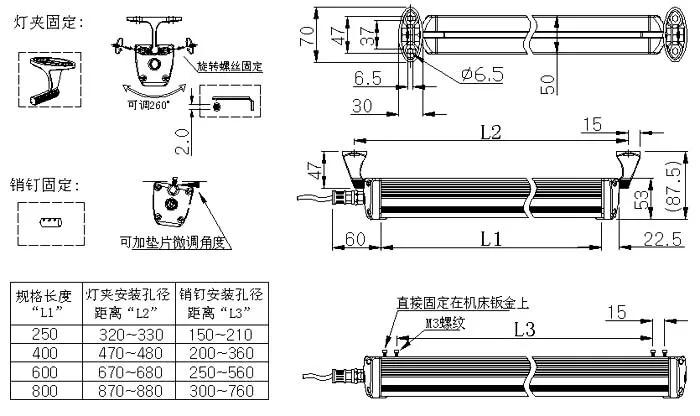

 Product size drawing:

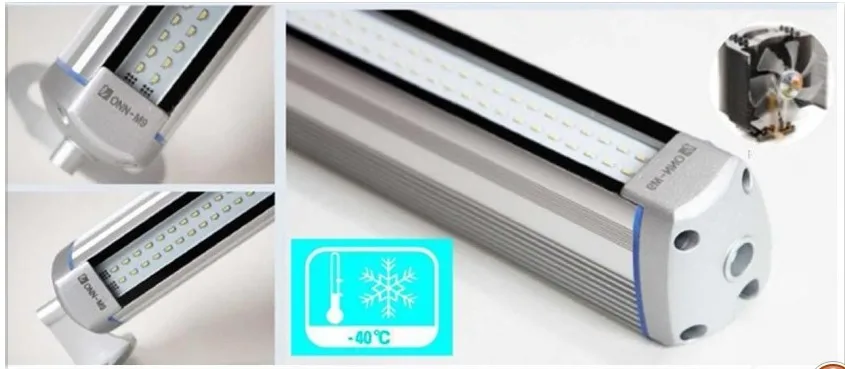

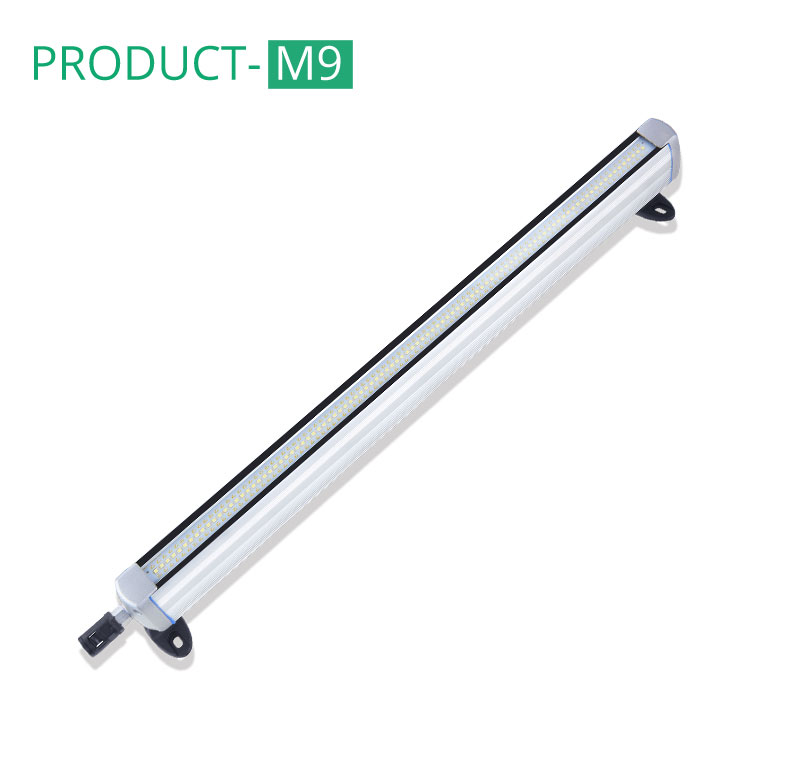

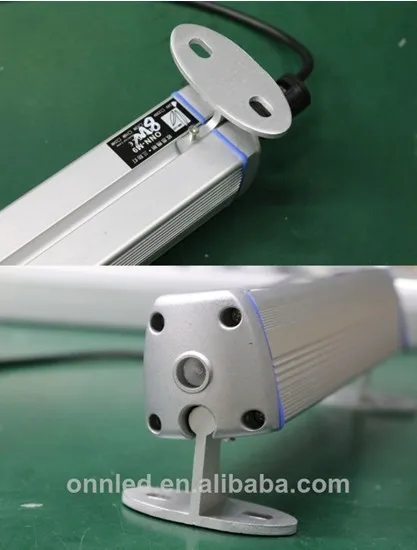

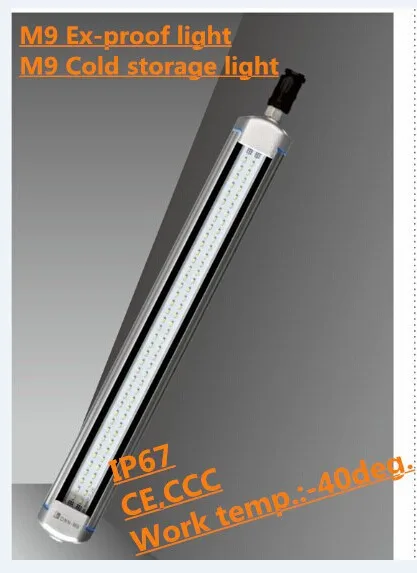

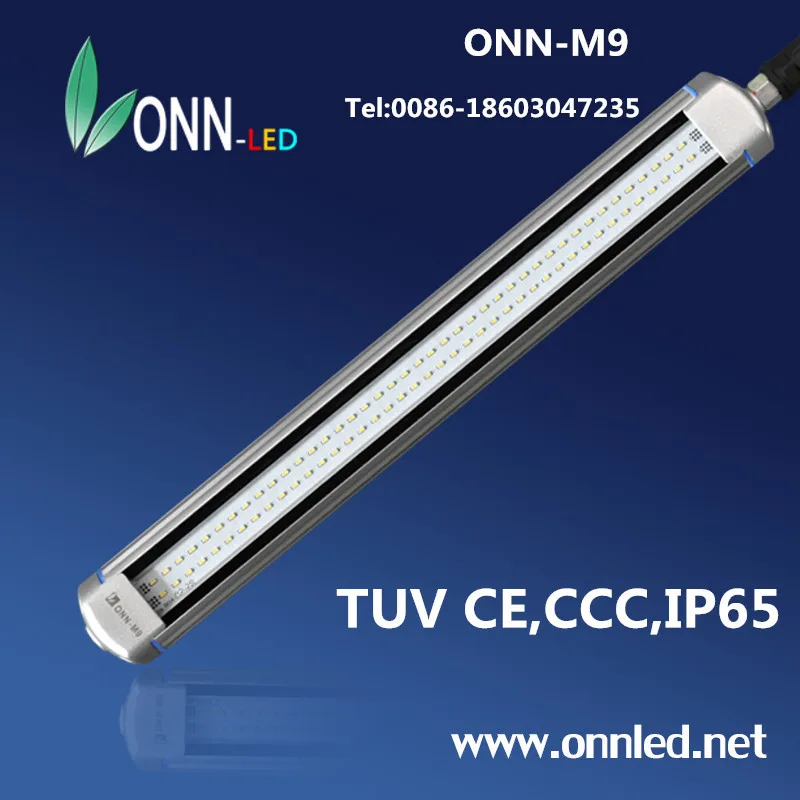

Product display:

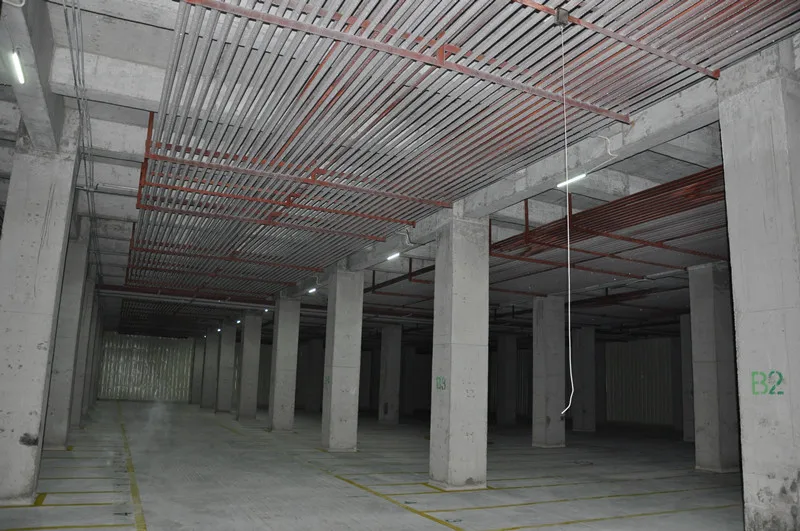

Application in cold room:

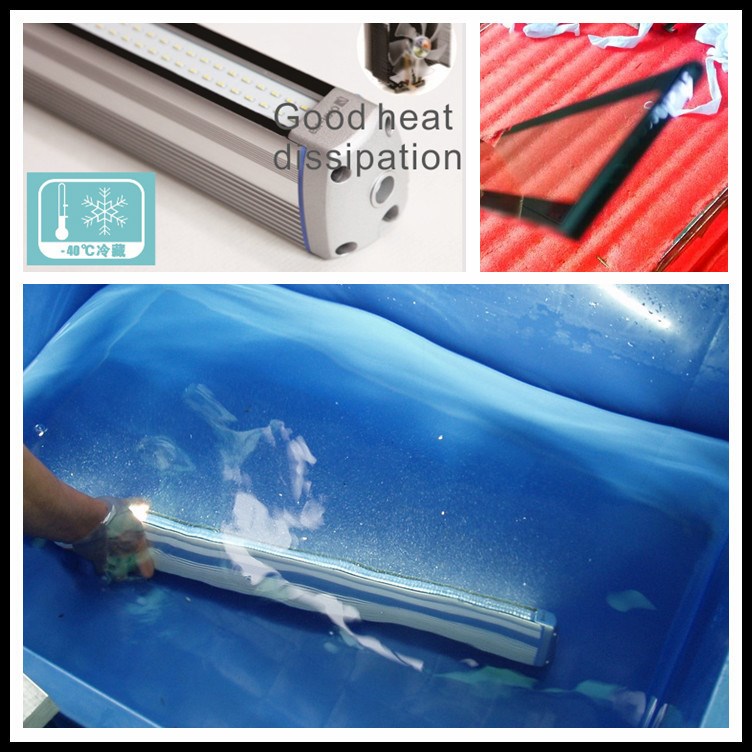

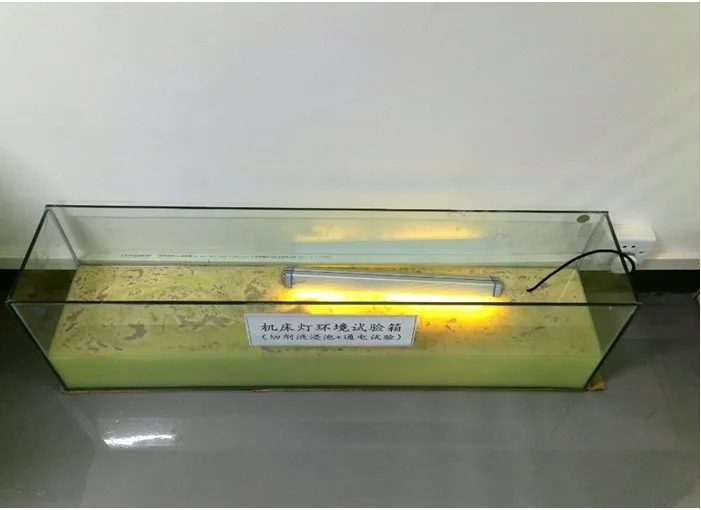

Corrosion-proof test:

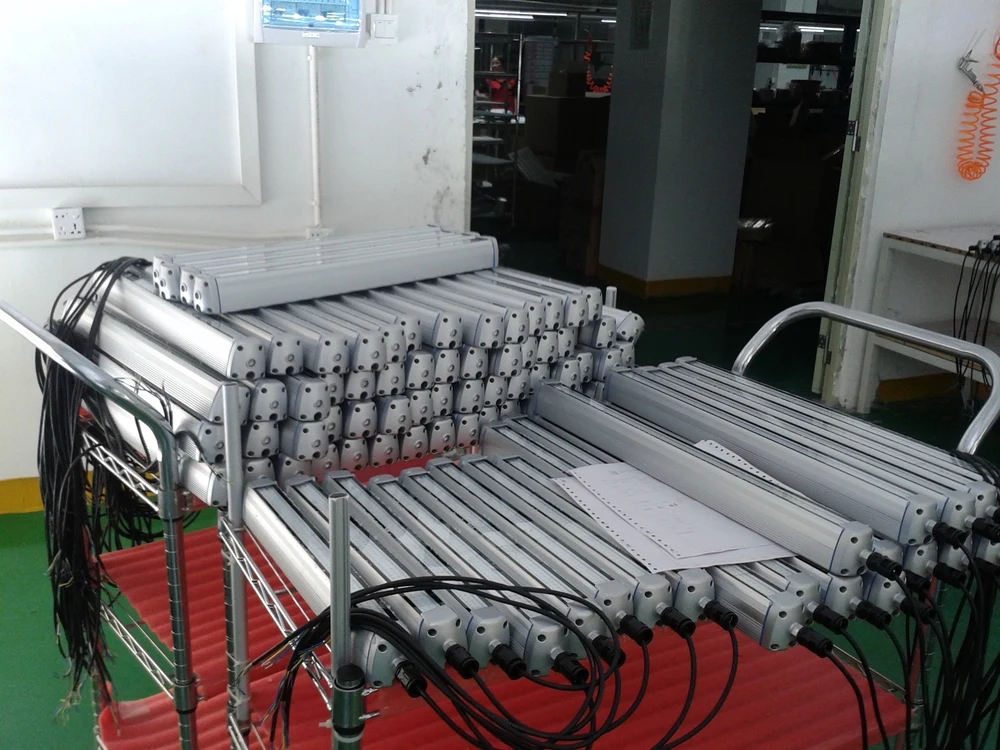

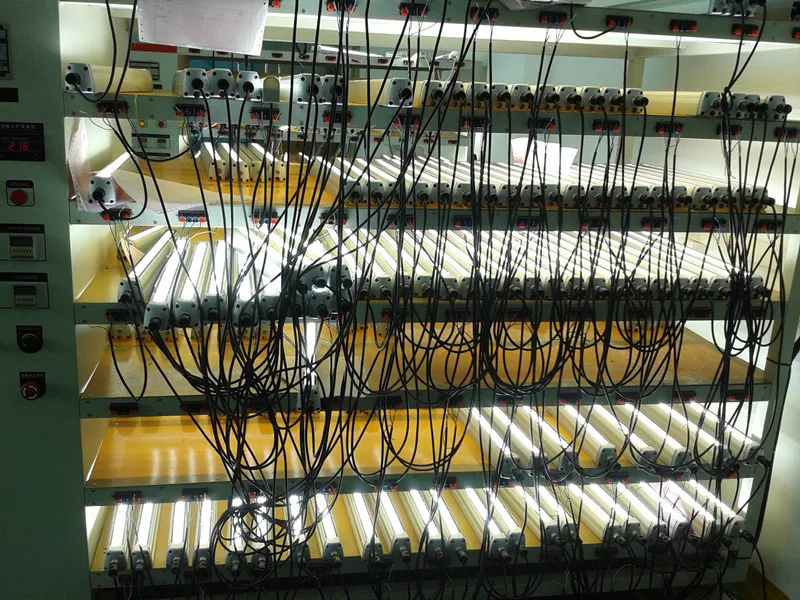

Aging room testing:

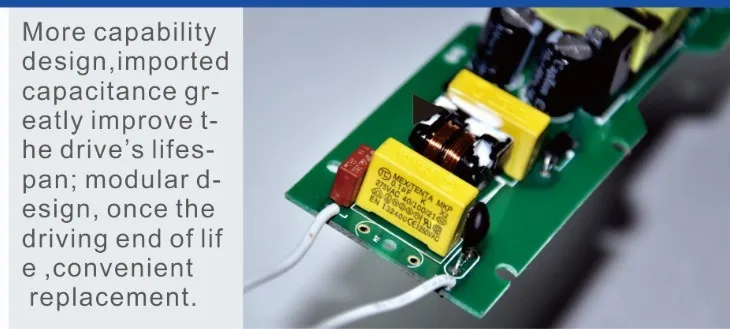

High power factor Isolated driver:

















Company Information



ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer lights.

Since the products launched market for nearly 8 years,ONN has experienced 50 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is backbone for technology and quality,was indentified as Natioinal High-tech Enterprise.



Certificate:









Our Services



1.ONN can supply LED lighting solutions of Specific projects to you;

2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.

3.18 months warranty,in the period,when light is not work or some components failed,can free to replace or send a new one;

4.OEM provide;

5. Maintenance free once broken,we"ll take steps to solve problem in 48 hours.(work time:From Monday-Saturday 8:30am-18:00pm)





Packaging & Shipping



1. Our Standard Export Packing. Customized packing is avaible for MOQ order.

2. Delivery time: samples 7-10 days, mass order 10-15 days.

3. Shipping: by international express, by air or by ship.









ONN Product Range:



1.LED Machine Light;



2.LED Warning Light;



3.LED Clean room tube Light;



4.LED Freezer Light



5.LED Cabinet Light.





More similar product









If have any needs pls consult me in any time:



Attn:Amy Liu

Tel:+86-755-36631969

Email:onn019(at)onnled.net

Skype:laura.lu67

Web:www.onnled.net





Before lights dispatched from our factory,we will arrange strict test of waterproof test,aging test and some relative test.
