Product Details

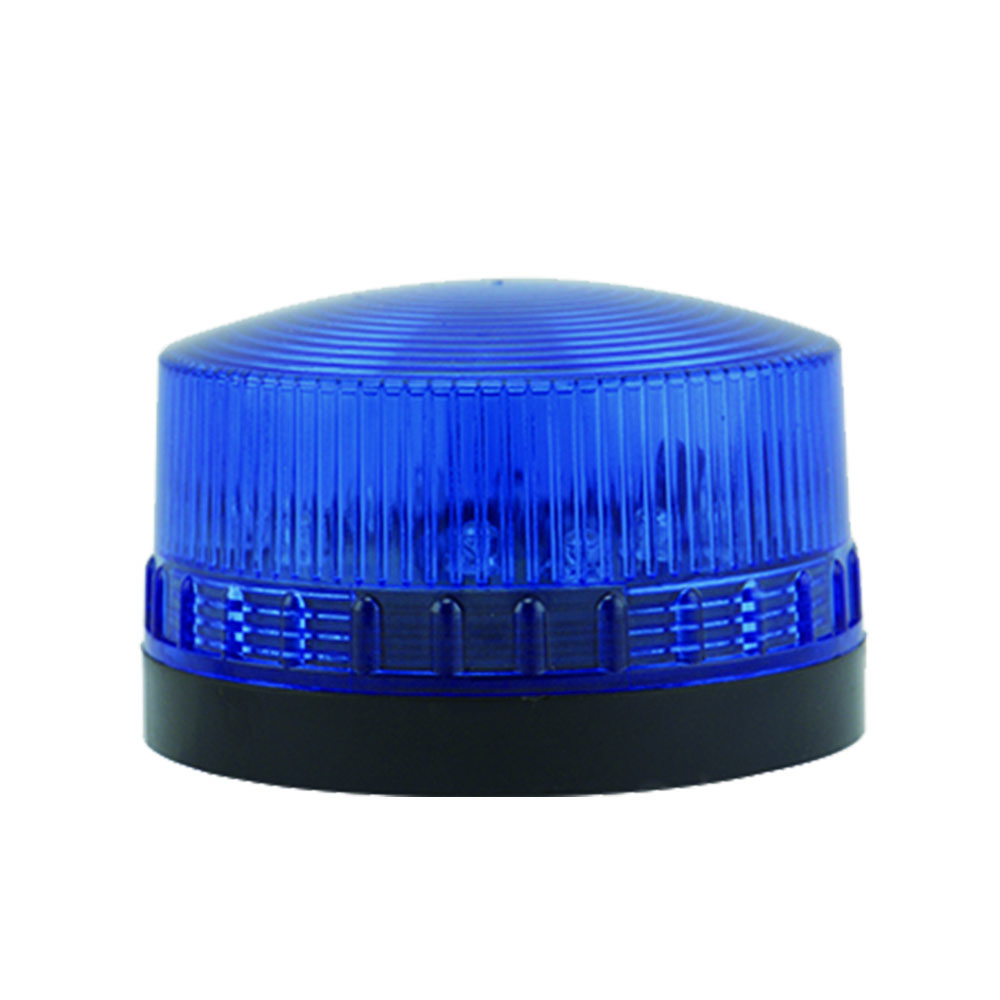

Asenware AW-CFL2166 conventional high frequency flash light
1. The technical parameters of high frequency flash light :
Asenware AW-CFL2166 conventional high frequency flash light Asenware AW-CFL2166 conventional high frequency flash light
| Name | Conventional Flash Light |
| Model No. | AW-CFL2166 |
| LED Color | red ( default ) |
| green, yellow,blue ( available ) | |
| Operating Voltage | DC 24V |
| Flash Period | ≤ 3s |
| Temperature Range | -10℃ to +50℃ |
| Humidity Range | 0%~95%RH |
| Size | 72mm*45mm |
| Weight | 0.06kg |
Asenware AW-CFL2166 conventional high frequency flash light Asenware AW-CFL2166 conventional high frequency flash light
2. General description :
The product is fire flashing lights, a fire alarm device, generally used for more staff in public areas. In the event of an emergency situation is controlled by the alarm controller to trigger flashes,warning people to fire.
3. Working Principle :
Flash fire inside a 24V DC LED lights, 24V DC triggered by flashing LED lights set to issue an alarm signal, current, long life, high reliability.
4. Features of high frequency flash light :
Merit:
a) Compact, easy to install;
b) With low power consumption, high brightness of the flash, continuous work extremely long life characteristics;
c) Perfectly configured in a variety of alarm systems.
Defect:
a) The blind can"t see the flash and can not cause a fire during evacuation.
5. Connecting :
| RedWire | Control Input + (DC 24V +) |
| Black Wire | Control Input - (DC 24V -) |
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst: fire alarm panel , smoke detector , wireless smoke detector , heat detector , bells etc .
3. Have an experienced R&D team to design special electric product for test and control usage.
Asenware AW-CFL2166 conventional high frequency flash light Asenware AW-CFL2166 conventional high frequency flash light
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Asenware AW-CFL2166 conventional high frequency flash light Asenware AW-CFL2166 conventional high frequency flash light
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
6. Shipping Packing: Paper carton or wood carton at option.
7. Modes of transportation: DHL,TNT,EMS,FedExpress,UPS,etc
Asenware AW-CFL2166 conventional high frequency flash light Asenware AW-CFL2166 conventional high frequency flash light
