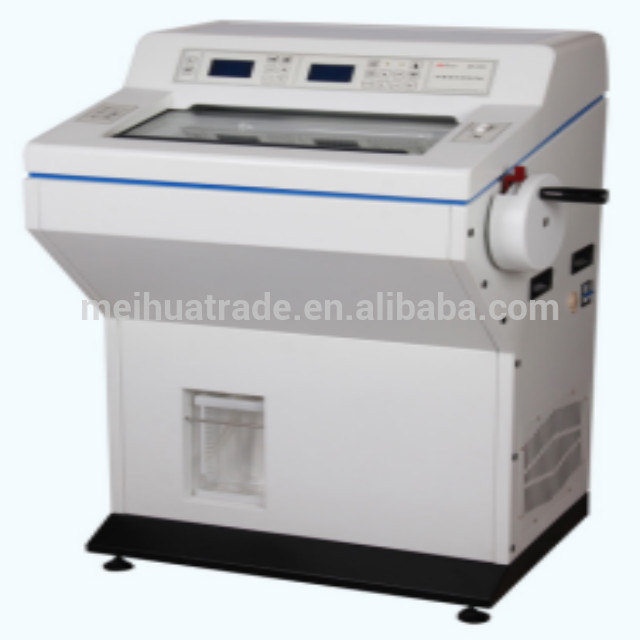

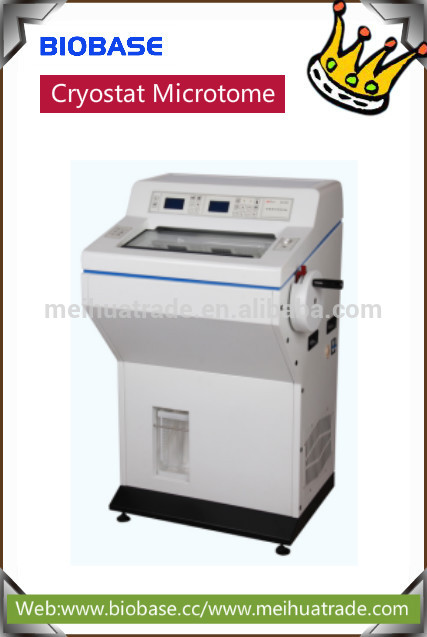

BIOBASE BK-2950 /2850 Cryostat Microtome

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-12-03 18:45

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Classification:
Other
Brand Name:
BIOBASE
Model Number:
BK-2950
Place of Origin:
Shandong, China
Chamber Temperature:
-10℃ ~ -40℃
Specimen Head Temperature:
-10℃ ~ -40℃
Time to reach -40℃:
60 minutes
Running time of the Peltier Element:
15minutes
Maximum Specimen Size:
35mm*35mm
Specimen Vertical Stroke:
60mm
Specimen Horizontal Stroke:
20mm
Display:
LCD display
Supply Ability
Supply Ability:
1000 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
wooden package /carton package
Port
Qingdao/Shanghai/Dalian/Guangzhou
Lead Time:
one week

 BIOBASE  BK-2950 /2850 Cryostat Microtome

Product Description

Features:



*A specimen retraction function protects the specimen from blade damage

*A trim button allows easy switching between trim and section mode;

*Counting function for the number of sections and the total thickness;

*The desirable section temperature achieves within 20 minutes unser fast cooling mode

*Low-voltage DC shadowless lamp;

*Semiconductor cooling function can be turned on and off;

*Hearable and removable glass door;

*Two defrosting modes: time defrosting and manual defrosting;

*Microtome is outside of the refrigeration chamber to avoid the effect of heat-expansion and cold-contraction, thus minimizing the need for maintenance;

*User-friendly intelligent operational interface is easy to learn and operate;

*Auto sleep function results in longer compressor life

*Keyboard locking function to avoid accident misoperation;

*A mechanical hand-wheel lock ensure safe chamber access, 16 position for locking;

*The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade;

*A large-size quick-freezing shelf allows for the preparation of 17 specimens at the same time;

*Two holes for semiconductor refrigeration;

*Cleaning device can help customer to clean the unit easy;

*Self-detection function for the temperature senor, can help to warn the failure on temperature senor.



Technical Parameters:

Model

BK-2950

BK-2850

Chamber Temperature

-10℃ ~ -40℃

-10℃ ~ -40℃

Specimen Head Temperature

-10℃ ~ -40℃

-10℃ ~ -40℃

Time to reach -40℃ of the quick-freeze shelf

60 minutes

60 minutes

Lowest possible temperature of the Peltier element

-45℃

-45℃

Lowest possible temperature of the Peltier element together with quick-freeze shelf

≤ -60℃

≤ -60℃

Refrigeration Type

Forced cryogenic refrigeration system

Forced cryogenic refrigeration system

Refrigerant

R134a

CFC-Free

Specimen Orientation

 XY – 8°

XY – 8°

Specimen Clamp Rotation

At any angle within 360°

At any angle within 360°

Running time of the Peltier Element

15minutes

15minutes

Maximum Specimen Size

35mm*35mm

35mm×35mm

Specimen Vertical Stroke

60mm

60mm

Specimen Horizontal Stroke

20mm

20mm

Electric Coarse Feed

Rapid 0.7mm/s; Slow 0.35mm/s

Display

LCD display

Section Thickness Range

1~100μm

1μm - 20μm   increments 1μm

20μm -40μm   increments 2μm

40μm - 100μm  increments 5μm

1~100μm

1μm - 20μm   increments 1μm

20μm -40μm   increments 2μm

40μm - 100μm  increments 5μm

Section Thickness Feed

10~400μm

10μm - 50μm   increments 5μm

50μm - 100μm  increments 10μm

100μm - 400μm  increments 50μm

10~400μm

10μm - 50μmincrements 5μm

50μm - 100μmincrements 10μm

100μm - 400μm increments 50μm

Compressor

Double Compressor

Single Compressor

Specimen Retraction Distance

0 ~ 100μm,in 5μm increments

0 ~ 100μm,in 5μm increments

Consumption

850W

650W

Power supply

AC220V±10%50Hz (standard model);     AC110V±10%60Hz

AC220V±10%50Hz (standard model);     AC110V±10%60Hz

External Size(W*D*H)

660*640*1130mm

660×640×1130mm

Packing Size

790*790*1370mm

790*790*1370mm

Gross Weight

170kg

158kg
