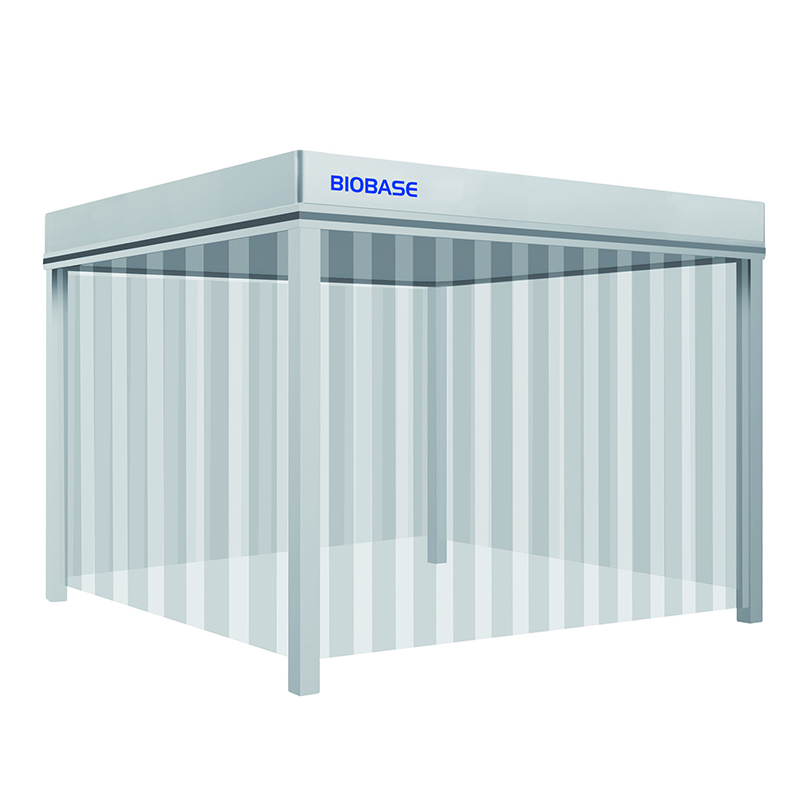

BIOBASE China Laboratory Class 100 PVC curtain clean booth/soft wall clean room with laminar flow

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-12-03 18:43

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
BIOBASE
External Size(W*D*H):
1500*2000*2500mm
HEPA Filters:
99.999% efficiency at 0.3 um
Clean Level:
ISO 5 (Class 100), Class A
Control System:
Microprocessor control system
Wall Material:
Anti-static dustproof curtain
Consumption:
500W
Blower:
Built-in centrifugal blower; speed adjustable
Air Velocity:
0.1~0.6m/s, average 0.45m/s
Name:
Fume Hood
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
7 to 25 days after payment received.
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)45To be negotiated

BIOBASE China Laboratory Class 100 PVC curtain clean booth, soft wall clean room with laminar flow

Product Description

Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.

Model

FH1000(X)

FH1200(X)

FH1500(X)

FH1800(X)

External Size (W*D*H)

1000*840*2150mm

1200*840*2150mm

1500*840*2150mm

1800*840*2150mm

Internal Size (W*D*H)

880*730*745mm

1080*730*745mm

1380*730*745mm

1680*730*745mm

Max Opening

520mm

Work Surface Height

750mm

Blower

Built-in centrifugal blowers; Speed adjustable with 9 levels

Air Velocity

0.3~0.8m/s

Noise

≤60dB

Fluorescent Lamp

18W*1

18W*1

36W*1

36W*1

UV Lamp

Emission of 253.7 nanometers for most efficient decontamination

Front Window

Motorized;5 mm toughened glass, anti-UV

Material

Exterior Body: Cold-rolled steel with anti-bacteria powder coating.

Work table: Solid chemical-resistant phenolic resin

Power Supply

220V/ 50Hz; 220V/ 60Hz; 110V/60Hz

Consumption

400W

400W

500W

500W

Standard Accessory

Water tap; Gas tap; Water sink; Base stand,UV lamp*2, Fluorescent lamp

FH1000(X) with one waterproof socket not more than 500W, the other model with two waterproof sockets not more than 500W

4 meters exhaust duct

Active carbon filter

Foot switch

Gross Weight

230kg

253kg

280kg

340kg

Package Size(W*D*H)

1230*1120*1680 mm

1350*1120*1680mm

1650*1120*1680mm

1950*1120*1680mm



BIOBASE China

Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.

BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.

With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
