Product Details

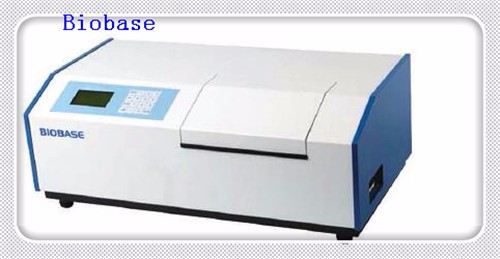

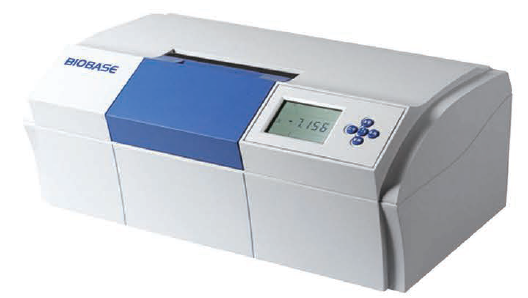

BK-P1 Precise Ophthalmoscope with High Accuracy Digital Polarimeter
FEATURES:
Automatic Polrimeter
1.LCD Display
2.Photoelectric test and microcomputer control.
3.Preheating is not needed. (Only for BK-P1 and BK-P2 Model)
4.Dark-colored sample can be measure. (Only for BK-P1 and BK-P2 Model)
5.Automatic repetition-measurement for 6 times, and calculation of average value and means square root
6.Sample chamber adopts constant temperature designing in order to reduce the temperature heating influence.
TECHNICAL PARAMETERS
| Model | BK-P1 | BK-P2 | BK-P3 |
| Light Source | LED lamp | Sodium lamp | |
| Measuring range | ±45°(optical rotation) /±120° Z(sugar) | ||
| Wavelength | 589nm | ||
| Readable Accuracy | 0.001°(optical rotation) | 0.001°(optical rotation)0.01°Z(sugar) | |
| Measuring Accuracy | ±0.01°(-15°≤optical rotation≤+15°) | ±(0.01+measurement value*0.05%)°(optical rotation) | |
| ±0.02°(optical rotation<-15°or optical rotation>+15°) | |||
| Repeatability | 0.002° (optical rotation) | ≤0.003° (optical rotation) | |
| Sample Transmittance | >1% | / | |
| Temperature control range | / | 15~30℃ | / |
| Temperature Accuracy | ±0.5℃ | / | |
| Test mode | Optical rotation, specific rotation, concentration, sugar degree | ||
| Test tube | 200mm,100mm | 200mm,100mm,100m m(Constant Temperature tube) | 200mm,100mm |
| Interface | USB&RS232 | RS232 | |
| Power supply | AC110/ 220V±10%, 50/60HZ | ||
| External size(W*D*H) | 690*370*280mm | 570*350*280mm | |
| Package size(W*D*H) | 850*500*470mm | 730*480*470mm | |
| Gross Weight | 38kg | 36kg | |
