Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: CF-H052S

Type:: Fuse Holder

Item Number:: CF-H052S

Product Type:: Panel Mounted Fuse Holder

Color:: Black

Thread Dia.:: 15mm

Fuse Size:: 6x30

Rating:: 20A 250VAC

Contact Resistance:: 35mΩ max

Insulation Resistance:: 500 VDC100MΩ

Material:: Plastic and Metal

OEM&ODM:: Available

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 28X28X15 cm

Gross weight per batch:: 1.0 kg

Package Type:: 100PCS Per Bag ofBlack AC 125V/15A 250V/10A Electrical 6X30mm Panel MountedFuse Holder Glass Fuse Tube Protector For Radio Auto Stereo

Picture Example:

Lead Time:

Quantity(Piece)	1 - 1000	>1000
Est. Time(days)	5	To be negotiated

Our adventage

Product Description

Product Name	Black 250V/20A Electrical 6X30mm Panel MountedFuse Holder Glass Fuse Tube Protector For Radio Auto Stereo
Rating	20A 250VAC
Fuse Size	6x30mm panel mount fuse holder
Material	Plastic
Thread Dia.	15mm
Operating Temperature	-55℃~+85℃
Terminal	Solder-lug Terminal
OEM or ODM	Available

Products Show

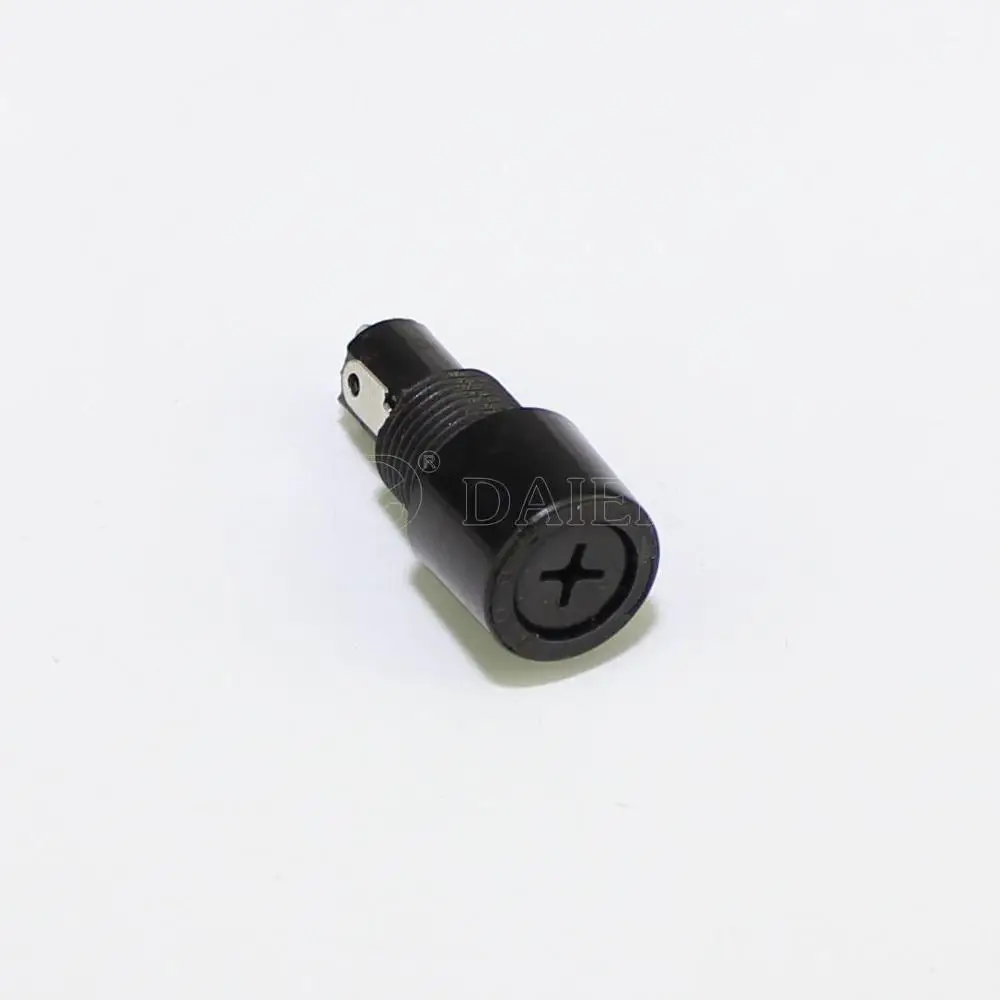

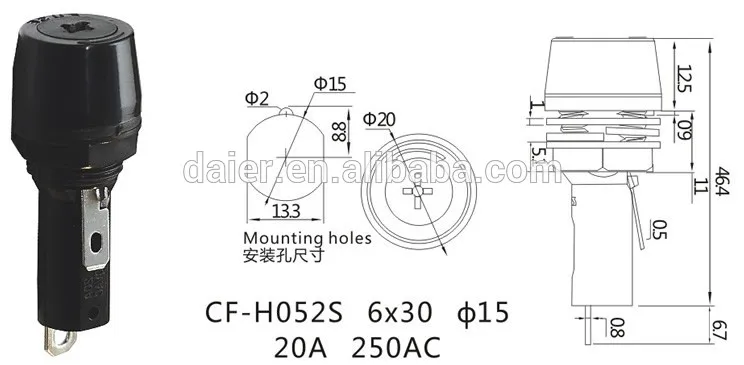

CF-H052S Fuse Holder

Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.

Fuse holders are suitable for protection against overloads and short circuits.

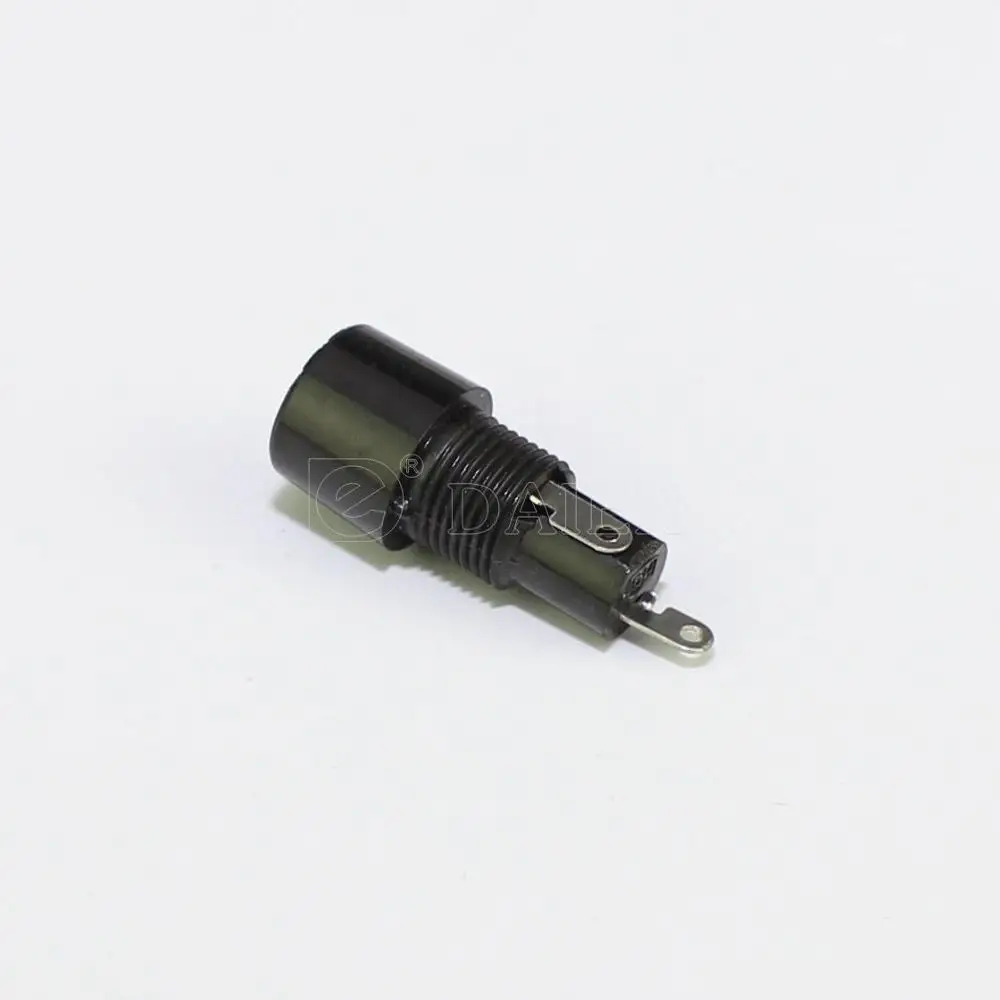

CF-H052S Fuse Holder

Daier offer fuse-holder and fuse part for 15 years.Now Daier have glass fuse holder and inline fuse holder.
Good glass fuse-holder fits 5x20mm, 6x30mm and 10x38mm grass fuse.With screw cap and solder-lug terminals.
