CCT color adjustable 4ft suspended ceiling light 40w linear led lighting fixtures

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Chandeliers & Pendant Lights
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 19:56

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Type:

Array

Product Details

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Model Number:
DP4-DM-XXT
Material:
Aluminum
Type:
Contemporary
Light Source:
LED
Lamp Luminous Flux(lm):
4000
Working Lifetime(Hour):
50000
Beam Angle(°):
360
Input Voltage(V):
100-277
CRI (Ra>):
80
Support Dimmer:
Yes
Application:
office
Warranty(Year):
5-Year
Efficacy:
100lm/w
Power:
40W
Dimmable:
0-10V
Function:
Linkable, Tunable white options
Tunable white options:
3000K, 3500K and 4000K by dip switch
Driver:
Internal Driver
UGR:
<19
Dimension:
47.24" x 7.87" x 0.94"
Product name:
suspended Led Ceiling Light
Packaging & Delivery
Packaging Details
2PCS/CTN,
143.0*28.0*14CM
Port
Shenzhen
Product Description
Product Presentation

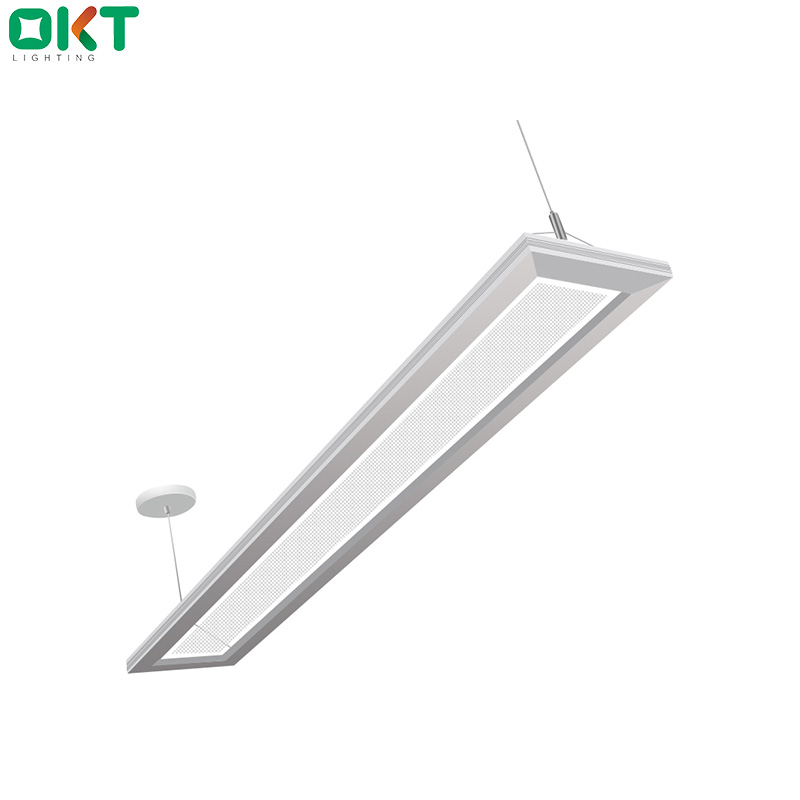

OKT 4inch x 4ft suspended Up/Down led panel light is a commercial pendant lighting fixture utilizing an advanced LED optical system to achieve superior performance. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on, reaching 55% downlighting and 45% uplighting distribution, making the illusion of the light floating in mid-air, included UL Recognized constant current driver which support 0-10V dimming, suitable for indoor lighting. It has color temperature changing optional function which is available in 3000K,3500K and 4000K.

Product Name
UP/Down Panel Light

Wattage
40Watt

Size
4ft

Voltage
100-277V

Efficacy
100lm/w

Model
DP4-DM-XXT

Function
0-10V dimming, CCT White by dip switch
Detailed Images

Up/Down distribution

55% downlight, 45% uplight
It provides 55:45 split of lighting between the direct surface below and the ambient area above the fixture, making the illusion of the light floating in the mid-aie.

Avergae beam angle: 360°


Replaceable Internal Driver, Easy To Maintain

All drivers are built-in, and can be replaced easily, which is more convenient to fix and maintain.


Seamless continuous runs, Create linear lighting atmosphere.

It's highly engineered luminaire joining design allows for simple and intuitive assemebly in the field without tools. Its junction plate ensures that luminaire rows snap into a laser straight line.

Project case

It is an architectural lighting solution for commercial and institutional environments, including office building, medical, health, educational, retail, hotel, airport, hospitality etc.
Related Products
Company Introduction

Profession

Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lightstroffersdownlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.

Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.

FAQ

Q1: Can it be cleaned and how?

A1: Yes, you could clean it lightly with a recommended cleaner to avoid leaving scratches or mark. Please contact our sales for instructions.

Q2: What’s the light distribution?

Our regular setting is 45% uplight and 55% downlight. And 20% uplight & 80% downlight can be customized as well.

Q3: Can the up/down linear light make continuous runs and how many pcs maximum?

A3: Yes, in 120V, you could connect max. 9pcs for 4ft ones and 4pcs for 8ft ones; In 277V, you could connect max. 18pcs for 4ft ones and 8pcs for 8ft ones.
