Product Details
CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch
1. CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch
application:
The KDHc electric welding machine switch applied to AC 50Hz or 60Hz,440V and below 200A and below,for control of welding machine and control of main circuits as well. |
2. CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch features:
1) rated current:20A,25A,32A,40A,63A
2) function: control of welding machine and main circuits
3) B handle
Diagram for the type of handle:
 |
Introdution for the type and meaning of products:
|
Classification:
|
3. CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch technical parameters:
|
No. | Tech Parameters | requirement |
1. | rated voltage | below 440V |
2. | rated current | 20A,25A,32A,40A,63A |
3. | frequency | AC50HZ |
4. | No.of poles | None |
5. | No.of layers | make as required with circuit diagram |
6. | panel size | 30*30mm,48*48mm,64*64mm,88*88mm |
7. | colour of handle | black,white,red,grey |
8. | Working temperature | -25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
9. | Working height | ≤2,000m |
10. | Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
11. | Instalation conditions | polution class III |
12. | Mechanical life | 0.1*106times |
13. | Electrical life | 0.03*106times |
14. | Operative frequency | 120times/hour |
15. | transform angle | 30°/45°/60°/90°/120°/135°/150° |
Selection of contact diagrams:
|
4. CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch dimension and installation:
|
|

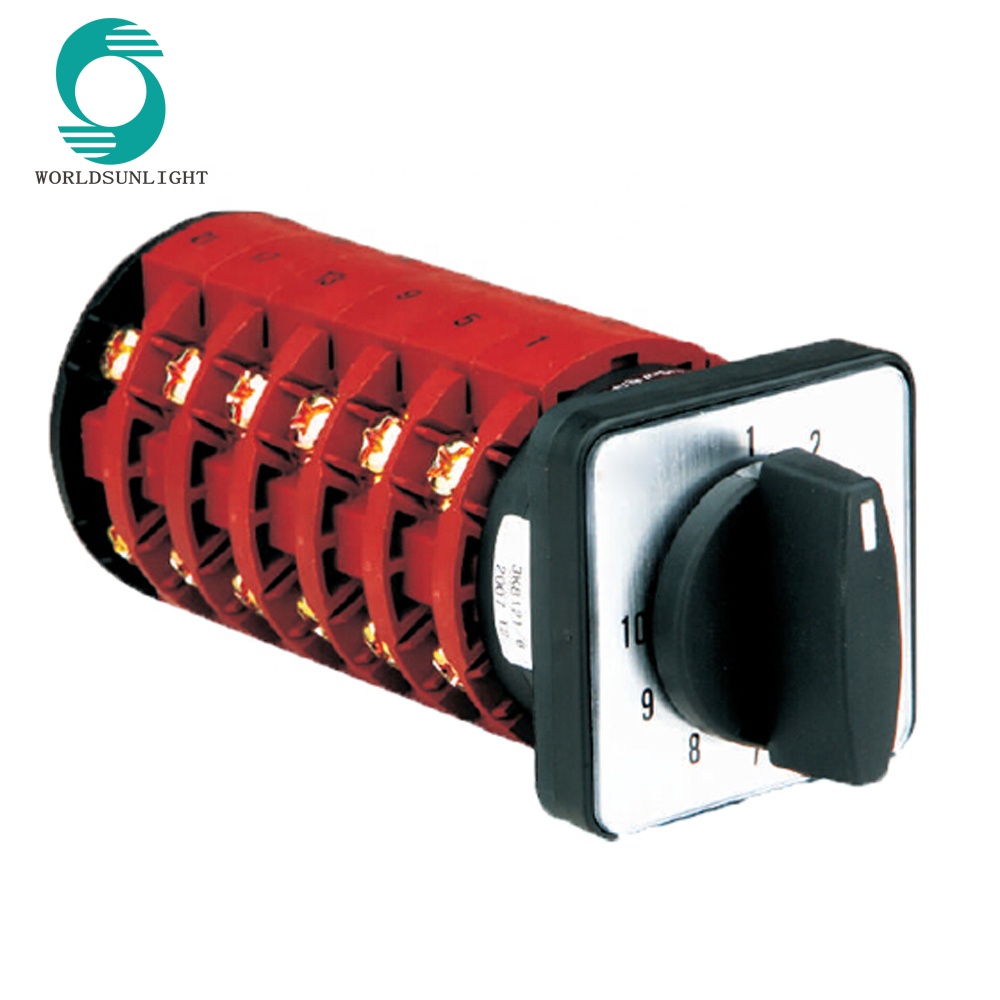

5. CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch pictures:
|
|
|
|
|
|
6. CE approval KDHc series 20A 25A 32A 40A 63A electric welding machine switch packaging:
Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of rotary switch. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
