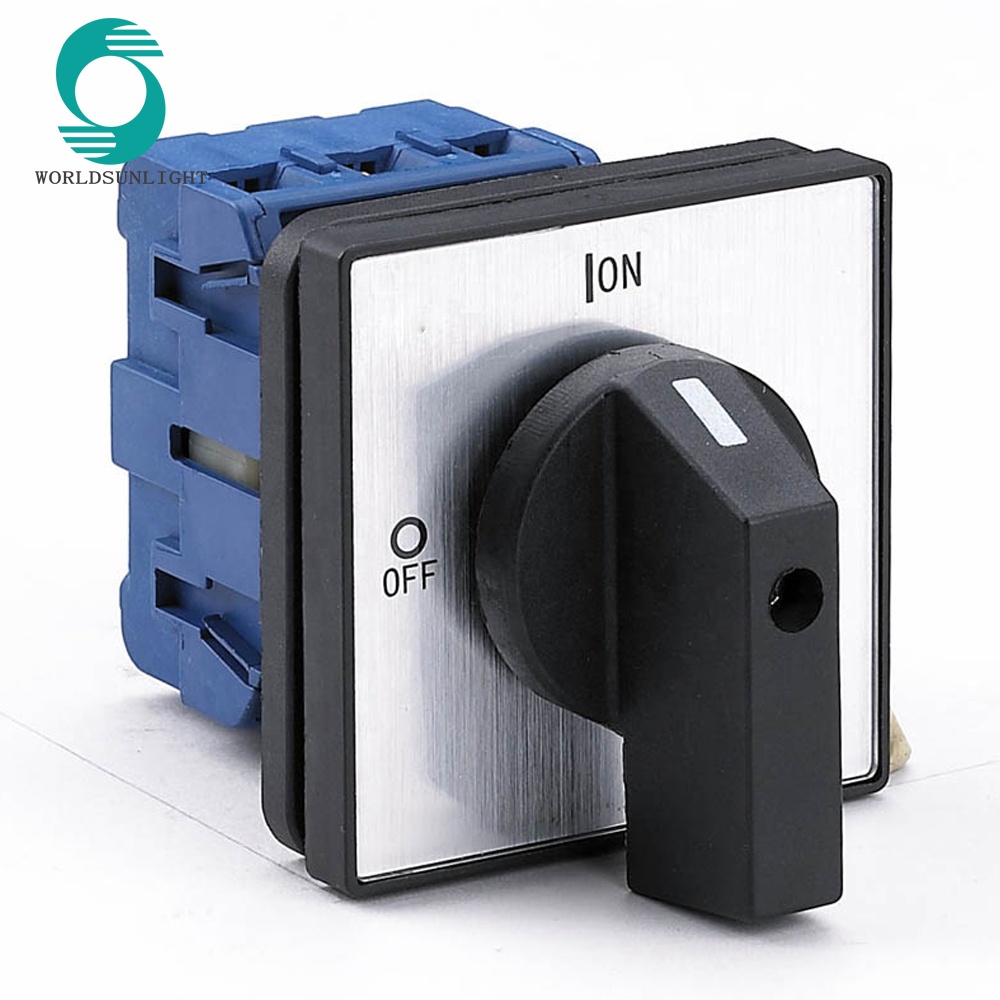

CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch
1. CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch application:
LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A. LW30 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power. LW30 series rotary switches have six current ratings:20A,25A,32A,40A,63A,80A and 100A. LW30 series has the finger protection terminals,which offers an extra advantage. LW30 series switches has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 30 has additional contact which enable us to install the contact separetely. LW30 series rotary switches switches comply with:GB/T 14048.3,and IEC 60947-3. |
2. CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch features:
1) rated current: 20A,25A,32A,40A,63A,80A and 100A
2) function: on and off
3) poles:4P
4) comply with: GB/T 14048.3, and IEC 60947-3.

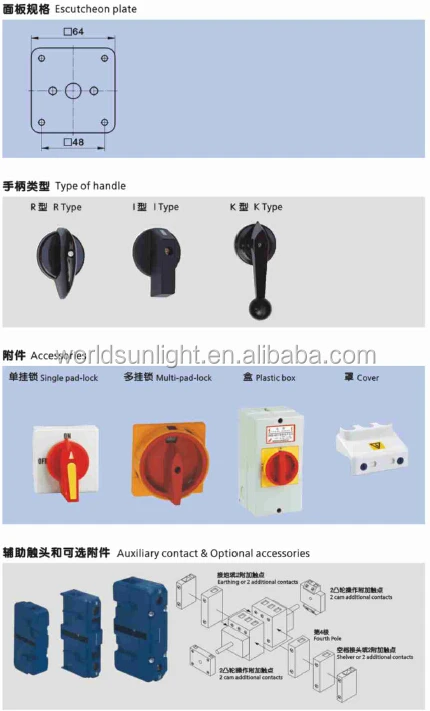

Diagram for the type of plate and handle:
 |

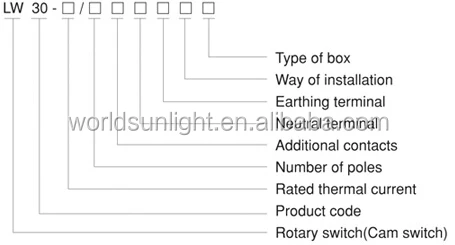

Introdution for the type and meaning of products:
|
3. CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch technical parameter:
Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | LW30-100 | |||||||
| Rated thermal current | A | 25(20) | 32 | 40 | 63 | 80 | 100 | ||||||
| Rated working voltage | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Ie/Pe | |||||||||||||
| AC-21A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- |
| AC-22A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- |
| AC-23A | A/KW | 15/4 | 15/7.5 | 22/5.5 | 22/11 | 30/7.5 | 30/15 | 43/11 | 43/22 | 57/18.5 | 57/30 | 70/22 | 70/37 |
| AC-3 | A/KW | 11.7/3 | 11.7/5.5 | 15/4 | 15/7.5 | 22/7.5 | 22/11 | 36/11 | 36/18.5 | 43/15 | 57/30 | 57/18.5 | 57/30 |
No. | Tech Parameters | requirement |
1. | rated voltage | below 440V |
2. | rated current | 20A,25A,32A,40A,63A,80A and 100A |
3. | frequency | AC50HZ |
4. | No.of poles | 4P |
5. | No.of layers | make as required with circuit diagram |
6. | panel size | 30*30mm,48*48mm,64*64mm,88*88mm |
8. | Working temperature | -25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
9. | Working height | ≤2,000m |
12. | Mechanical life | 0.1*106times |
13. | Electrical life | 0.03*106times |
14. | Operative frequency | 120times/hour |
15. | transform angle | 30°/45°/60°/90°/120°/135°/150° |

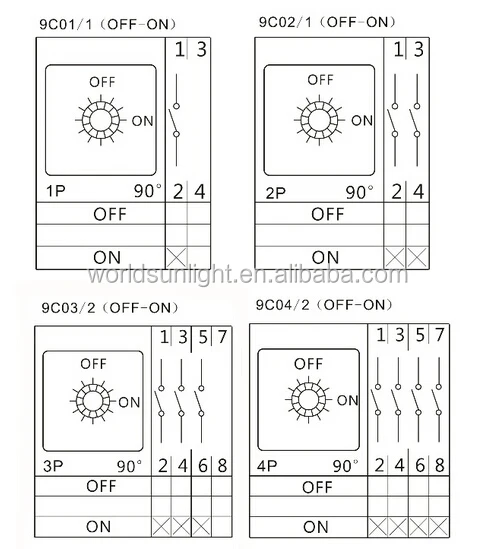

Selection of contact diagrams:
|

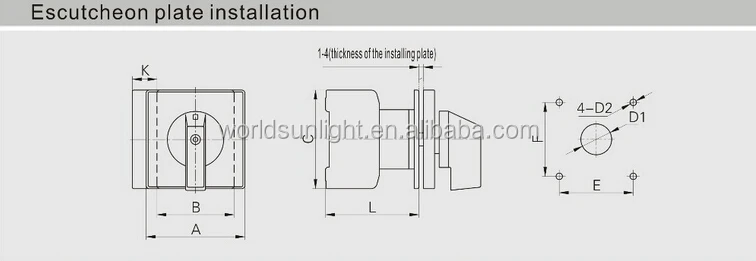

4. CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch dimension and installation:
|
Description | Dimensions(mm) | Installation(mm) | |||||||
A | B | C | K | L | E | F | D1 | D2 | |
LW30-20 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | Φ10 | Φ4.2 |
LW30-25 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | Φ10 | Φ4.2 |
LW30-32 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | Φ10 | Φ4.2 |
LW30-40 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | Φ10 | Φ4.2 |
LW30-63 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | Φ10 | Φ4.2 |
LW30-80 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | Φ10 | Φ4.2 |
LW30-100 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | Φ10 | Φ4.2 |

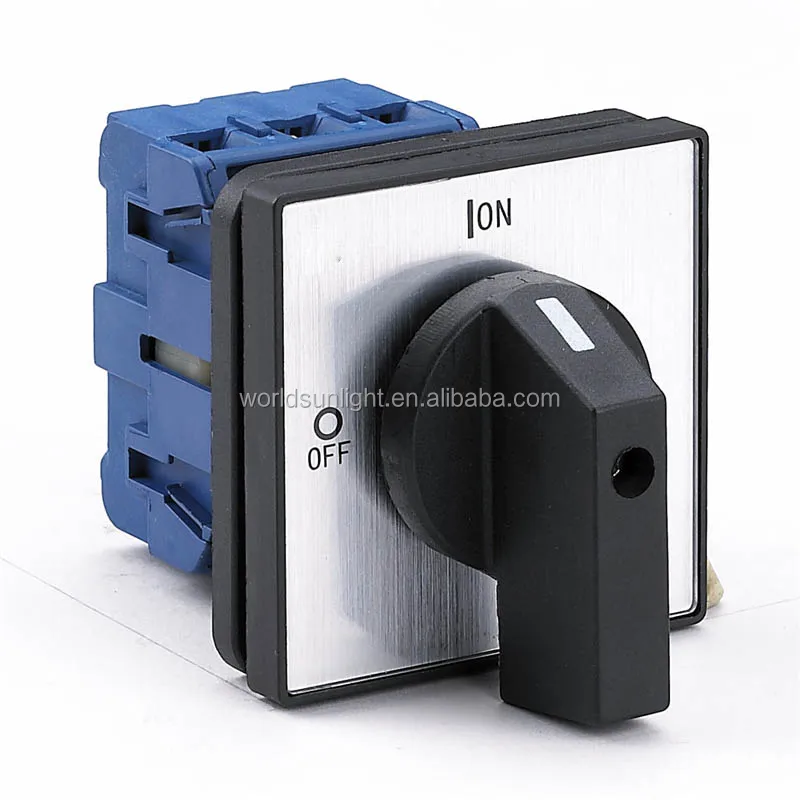

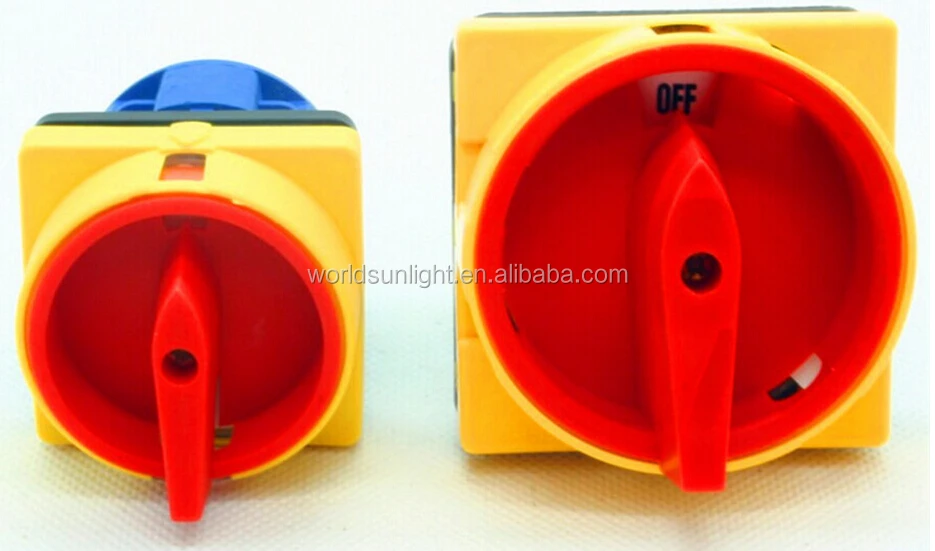

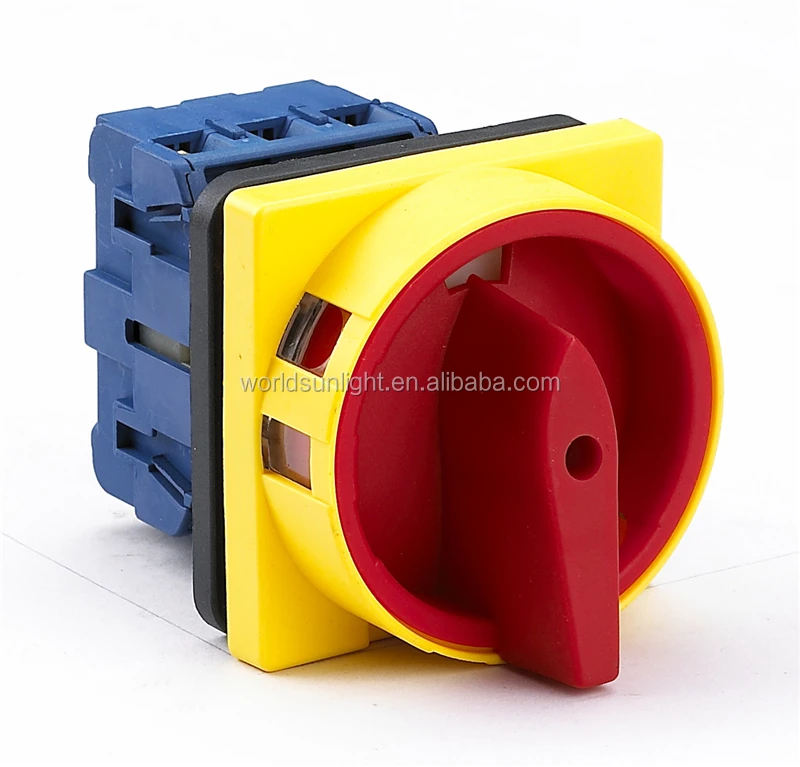

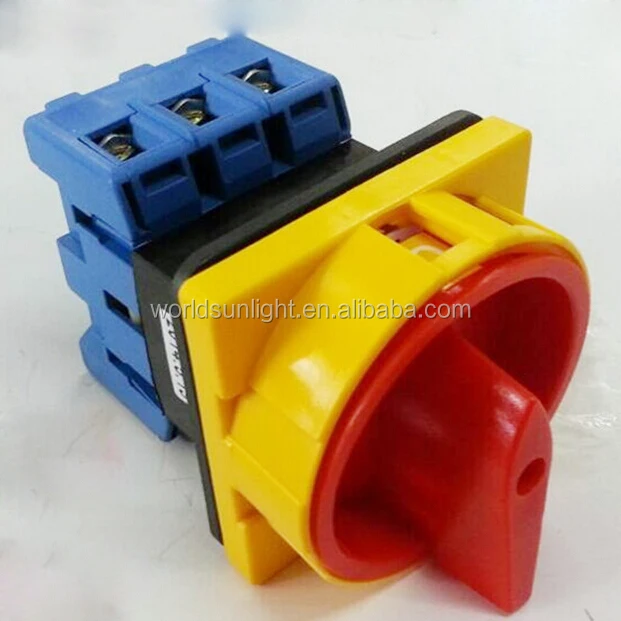

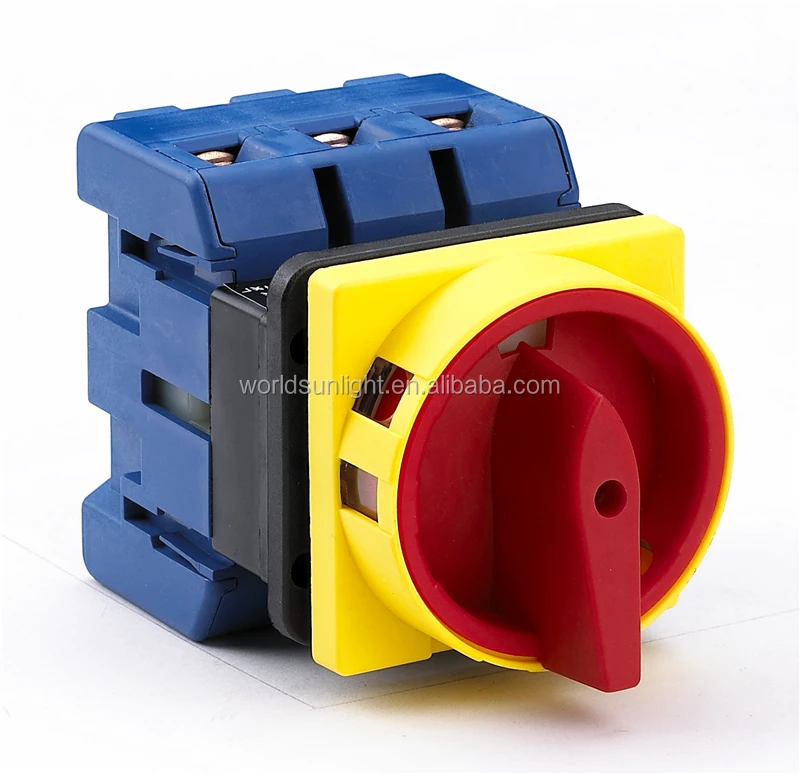

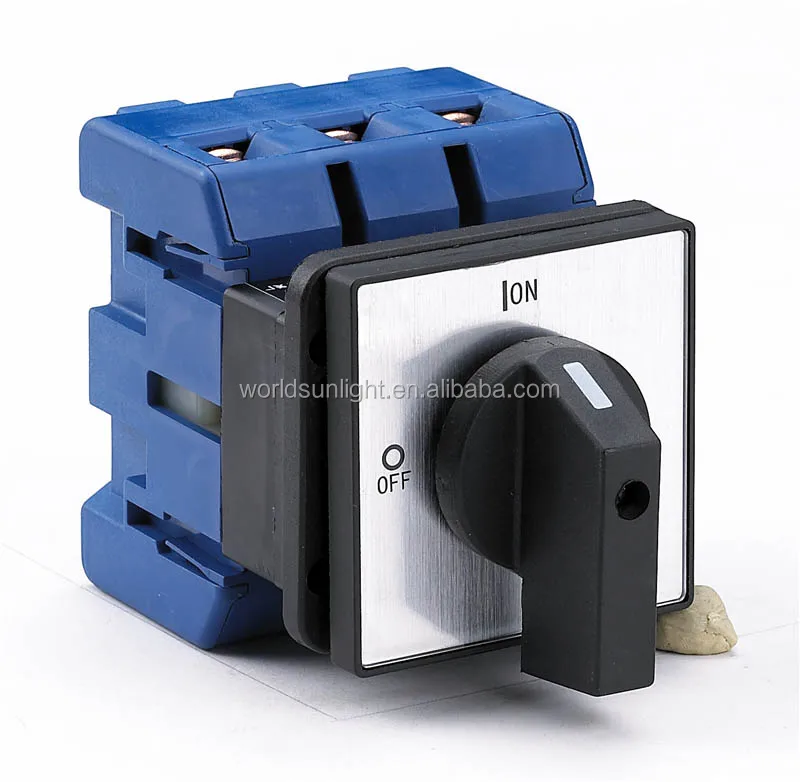

5. CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch pictures:
|
|
|
|
|
|
|
6. CE approval LW30 series 20A 25A 32A 63A 80A 100A on-off 4 position rotary switch packaging:
Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)
|
