CE approval LW5D series master control 380V 16A rotary cam switch
1. CE approval LW5D series master control 380V 16A rotary cam switch application:
LW5D apply to change over of circuits,also for control of starting and running, start and reserving and speed change of motors. |
2. CE approval LW5D series master control 380V 16A rotary cam switch features:
1) rated current:16A
2) function:control and changeover switch of motor and instrument
3) position return: spring return and limited movement

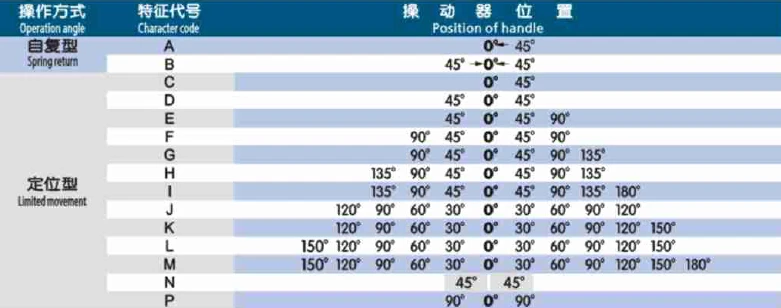

Position of handle:
|

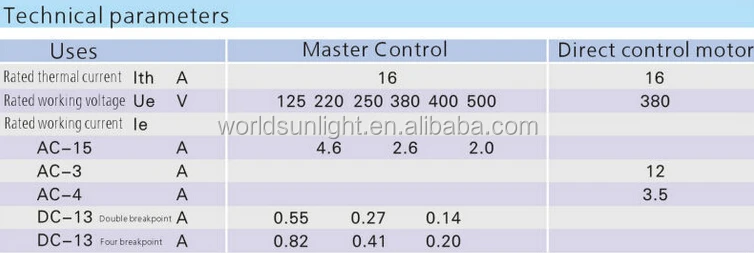

3. CE approval LW5D series master control 380V 16A rotary cam switch technical parameters:
 |
Mechnical life:
Mechanical life without load:300000 times,operation frequency is 300 times/h..
Mechanical life with load:AC-15 DC-13 to0.1000 times operation frequency is 300 times/h.
AC-3 is 1000 times operation frequency is 120 times/h.
AC-4 is 1000 times operation frequency is 120 times/h.

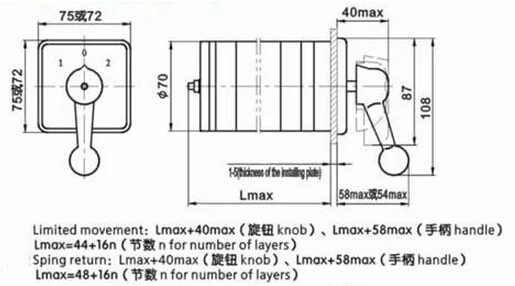

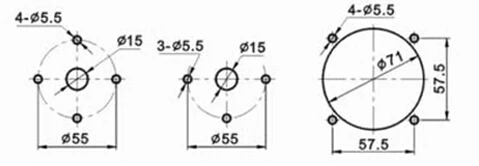

4. CE approval LW5D series master control 380V 16A rotary cam switch dimension and installation:
|
|

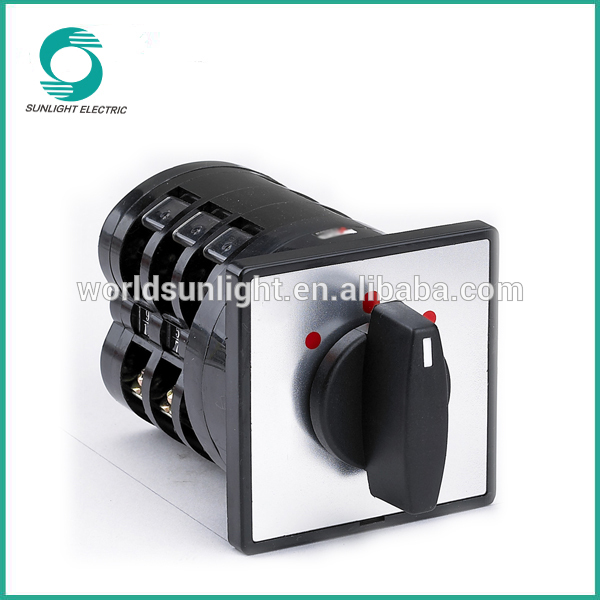

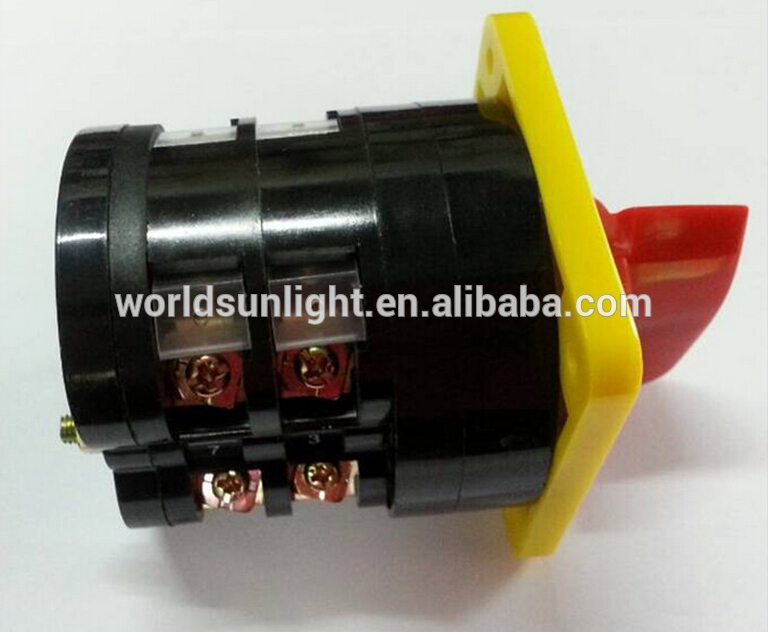

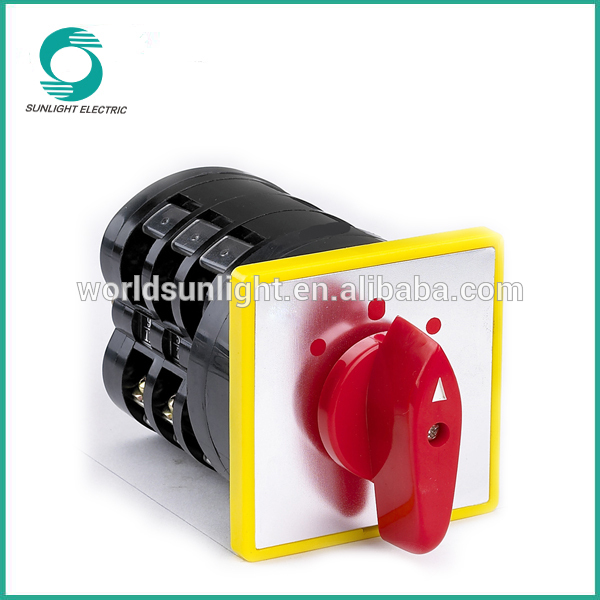

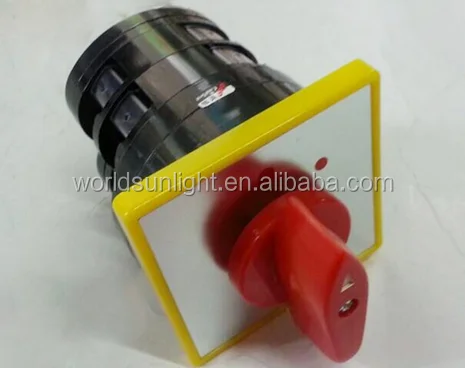

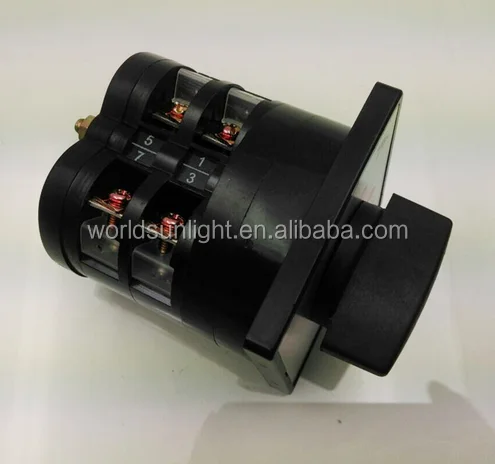

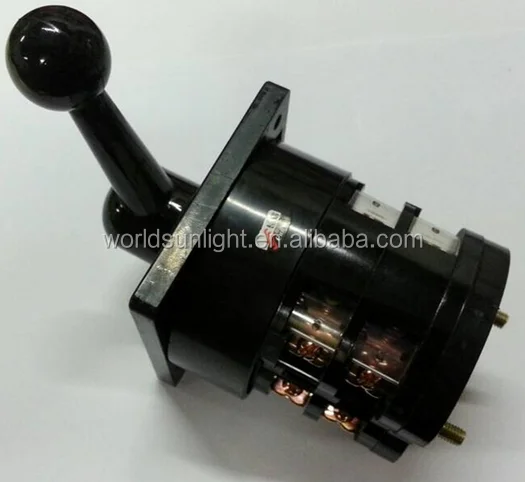

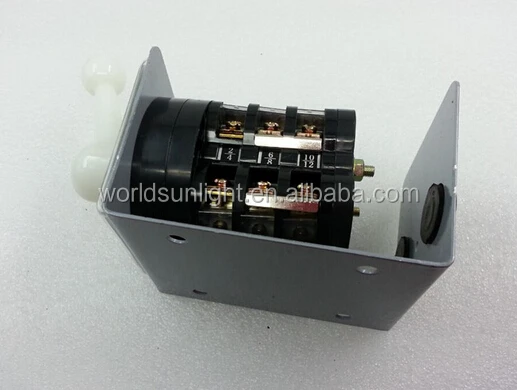

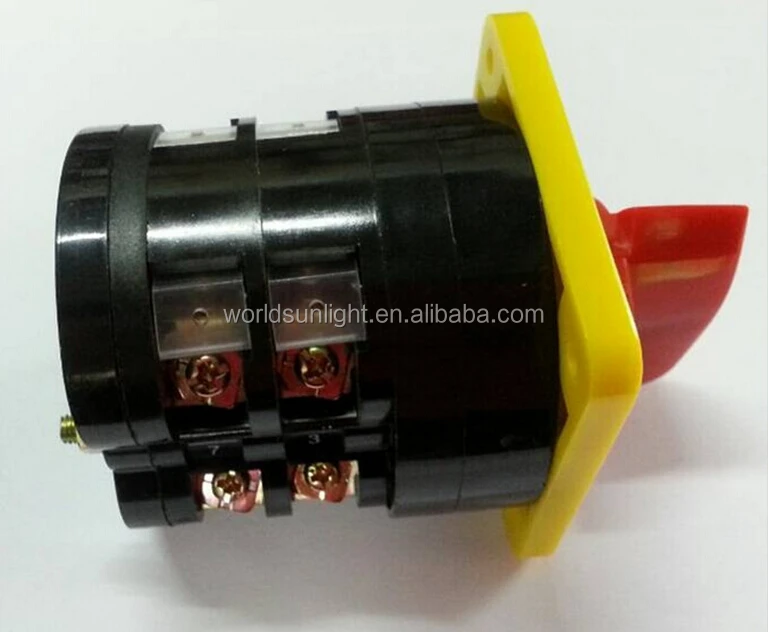

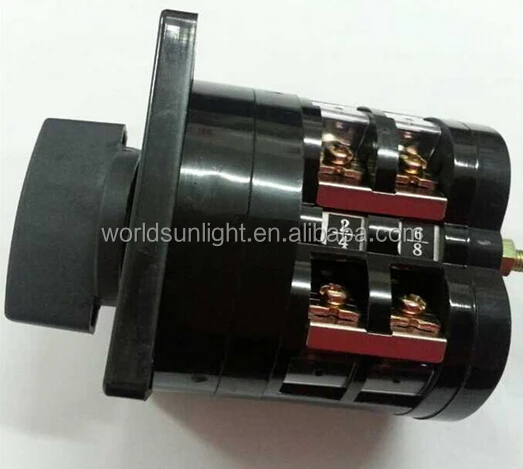

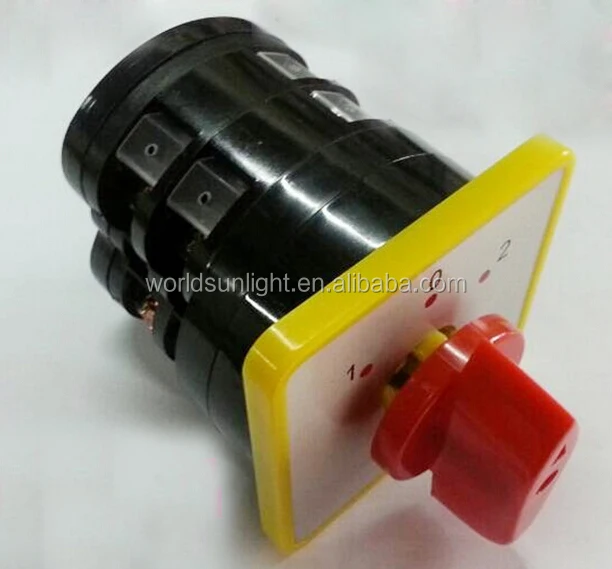

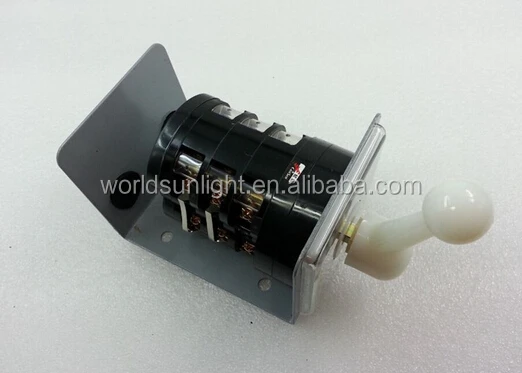

5. CE approval LW5D series master control 380V 16A rotary cam switch pictures:
|
|
|
|
|
|
|
|
|
6. CE approval LW5D series master control 380V 16A rotary cam switch packaging:
Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of rotary switch. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
