❈ Product description

Product Features

◪It is suitable for indoor use. Compared with the 12V LED strip, its advantage is that if the connection LED strip is too long, the brightness of the first and the end will be very different, but the brightness of the first and the end of the 24V is more uniform, there will be no large deviation.

❈ Product parameters

Part Number	UN-FPC-E2835x-xxD-24V
IP Rating	IP20
Colour	Warm White, Nautral White, Cool White
Voltage	DC 24V
Light beads	Edison 2835
Power rating	8-40W difference power for choice
CRI (Ra>)	80, 90
LED Light Source	Edison SMD 2835
LED Qty(LEDs/m)	60,120,180,240 or 60-240 customized
Beam Angle(degree)	120
CCT/nm	2700-3000k, 4000k, 5700k, 6000-6500k
Min. Cutting	10cm/6LEDs
Max. Length	5, 10M
Operating Temperature	-20-50℃
Storage temperature	0-60℃
Environment humidity	40%-70%RH
Lamp Luminous Flux(lm):	115+ LM/W
PCB Width	5、6、8、10、12 mm
Certification:	CE, FCC, RoHS
PCB Color:	White PCB
Working Lifetime(Hour):	50000
Packeting:	5 Meters/Roll, 10 Metres/Roll
Warranty:	2 Years
Service	OEM, ODM , Customization

To meet the needs of different customers, need to connect a longer LED strip and ensure uniform brightness, you can choose 24V LED strip.

❈ product details

24V LED strip

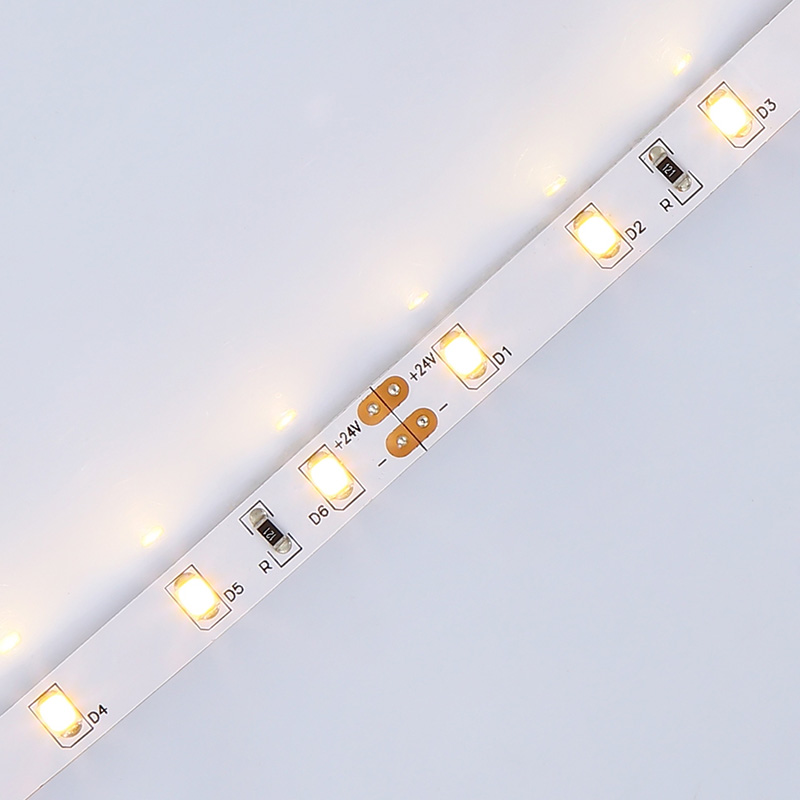

The 24V LED strip is cut every 6 smd leds.

LED strip

Each LED strip is 24V and consists of 6 smd leds and 2 resistors.

❈ product Applications

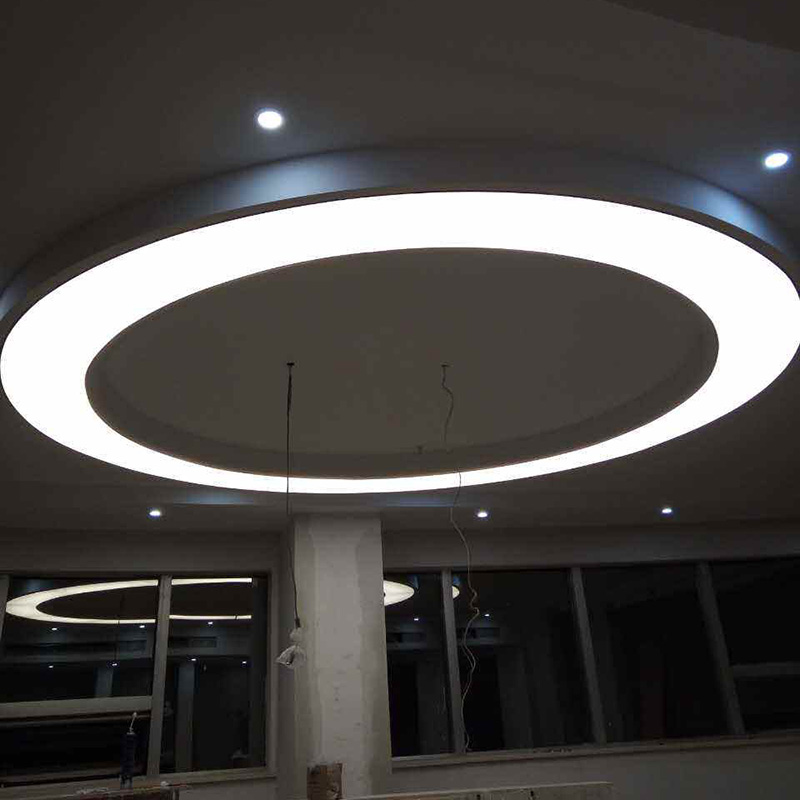

Application-1

It can be installed in the dark groove above the corridor to achieve double effects of lighting and decoration.

Application-2

It can be mounted in any shape of luminaire and can be bent at will to achieve the desired effect.
