Compact type Ultraviolet germicidal lamp (U shaped)

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong

  • Categories:Lighting Bulbs & Tubes
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:46

Other Products
cold cathode UV lamp
¥Negotiable 373Views

cold cathode UV lamp

Recommend
Y6 Explosion and waterproof UV ballast
¥Negotiable 40Views

Y6 Explosion and waterproof

Recommend
UV germicidal lamp for wastewater treatment
¥Negotiable 248Views

UV germicidal lamp for waste

Recommend
Small Mini Portable UV lamp air purifier
¥Negotiable 238Views

Small Mini Portable UV lamp

Recommend
Wall Mounted UV air purifier
¥Negotiable 325Views

Wall Mounted UV air purifier

Recommend
You may like
¥Negotiable 7Views

VT75LP/50025478/50030763

Recommend
¥Negotiable 9Views

Projector lamp ET-LAB80

Recommend
¥Negotiable 9Views

RLC-081

Recommend
¥Negotiable 11Views

Projector lamp DT00757

Recommend
¥Negotiable 11Views

Projector lamp ET-LAE16

Recommend
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Product Specifications

As far as we are concerned, the air polution is becoming big problem for us, which also cause serious health problems to our human, such as acute toxicosis, chronic toxicosis even cancer. Our company LYL, always take it our mission to try effort to bring back our blue sky and clean air, to build health surrounding for our human body.
High ozone with UV emission of 185nm and 254nm is recommended for industrial air purify, especially for odor control. The ultraviolet emission 185nm could react to the oxegeon to produce ozone, then the ozone will have oxidation processing with the orgainc, foul gas (such as VOC, Benzene, xylene, sulfide,  ammonia), therefor it’s valid to remove the odor. Meanwhile the 254nm ultraviolet emission could crack the molecular bond of the foul gas, breaking the bacteria DNA to kill the bacteria.
UV185nm+O2→O+ O-
O+ O- + O2→O3 +

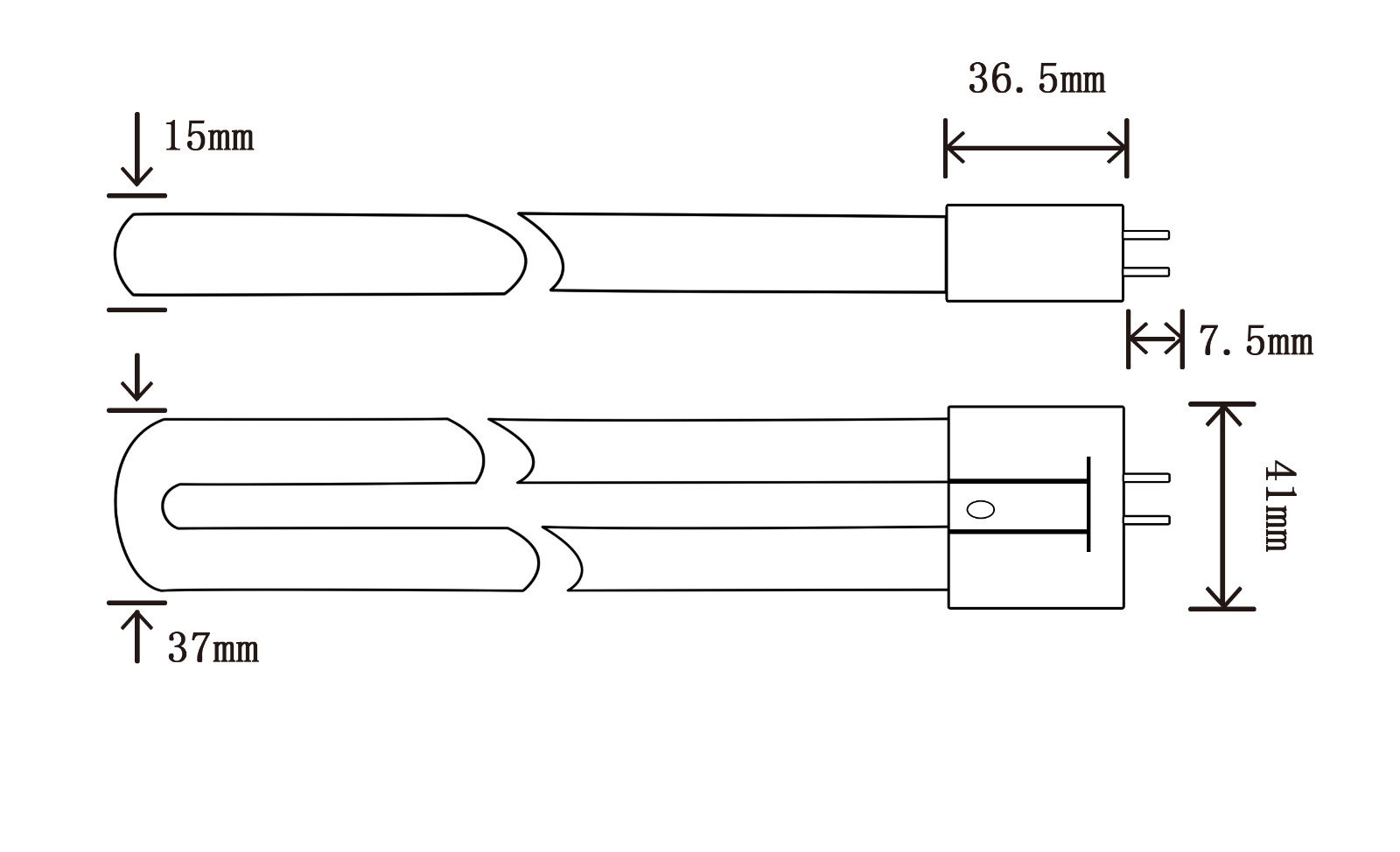

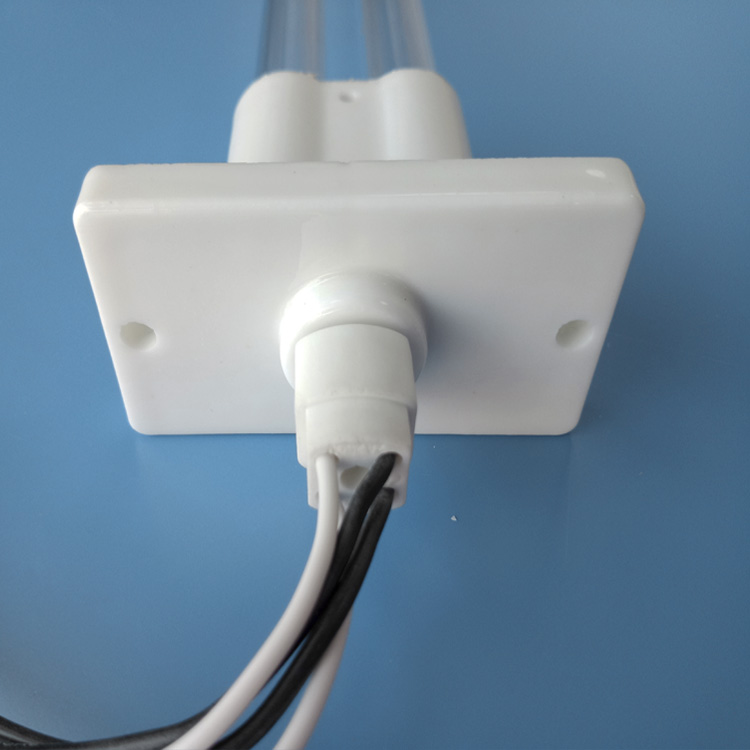

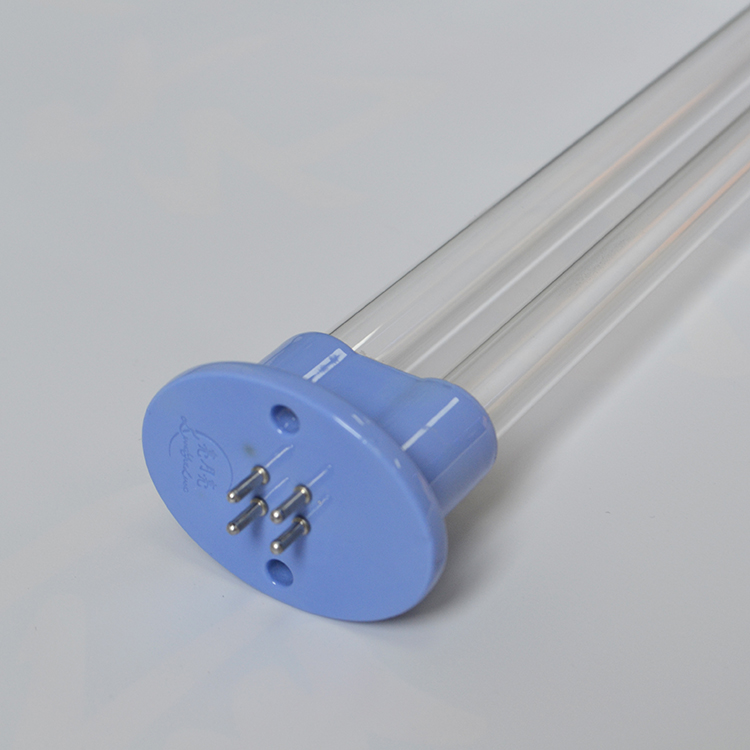

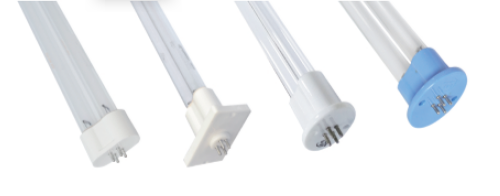

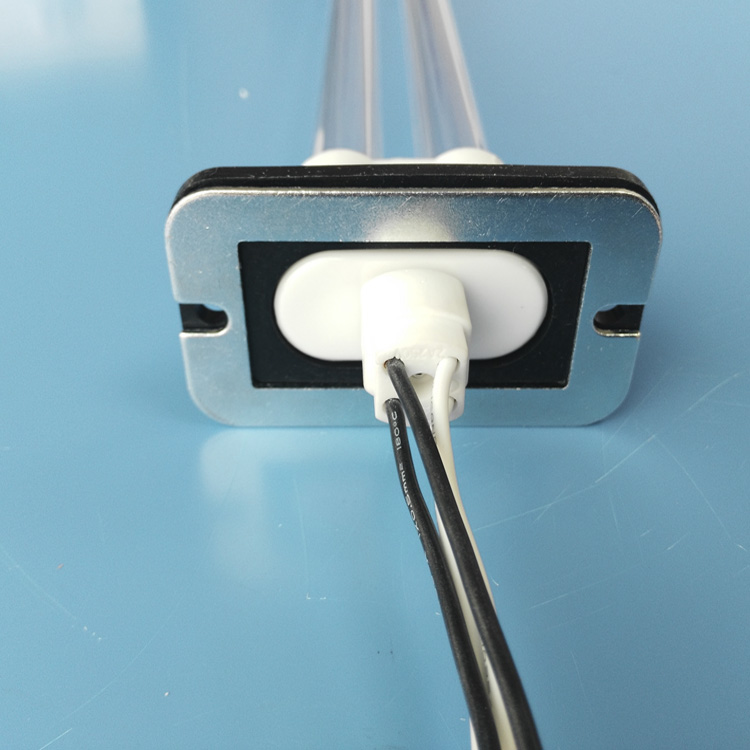

With our auto bending machine, our U shape is more smoothly and averagely compared to others. To reach different equipment installation requirement, we have already made 3 lamp base for our customers needs, including the standard oval base, egg oval base, square base.

ModelTube DiameterLengthPowerCurrentUVC outputOutput PowerRated Life
mmmmWattAμW/cm²WatthoursLonglife
U shape ultraviolet lamp-High Ozone
U90WVHO15 mm450mm90W800mA17025900013000
U100WVHO15 mm550mm100W800mA18033900013000
U120WVHO15 mm810 mm150W800mA36038900013000
U150WVHO15 mm1000 mm165W800mA40056900013000
U180WVHO15 mm1100 mm180W800mA45064900013000
U200WVHO15 mm1200 mm200W800mA57070900013000
U shape ultraviolet lamp-Ozone free
U90WVH15 mm450mm90W800mA17025900013000
U100WVH15 mm550mm100W800mA18033900013000
U120WVH15 mm810 mm150W800mA36038900013000
U150WVH15 mm1000 mm165W800mA40056900013000
U180WVH15 mm1100 mm180W800mA45064900013000
U200WVH15 mm1200 mm200W800mA57070900013000

Customized lamp base, lamp length, diameter and UVC output is available.

Application





Air treatment on Printing industry

Air purify on packing industry

Odor removal on Coatig like Vehiclle, furiture, machine

Odor control on Wastewater plant

Odor solution o garbage station

VOCs treatment on chemical industry

Odor removing on poultry rendering

Smell removal of poulltry feeds
