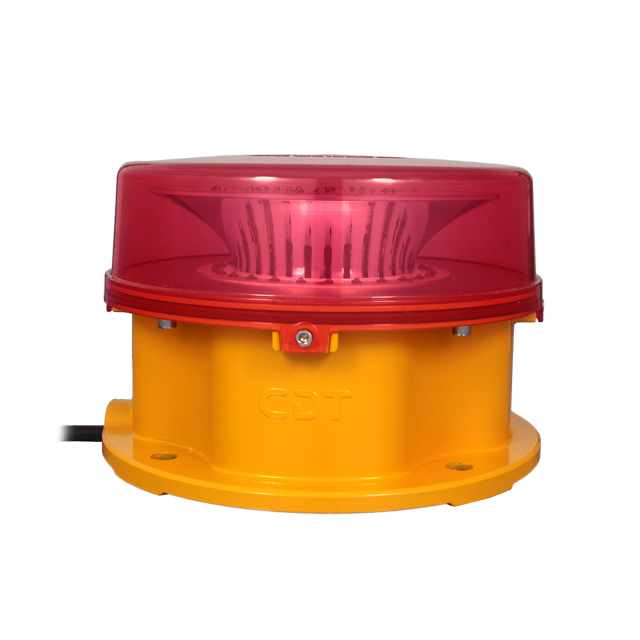

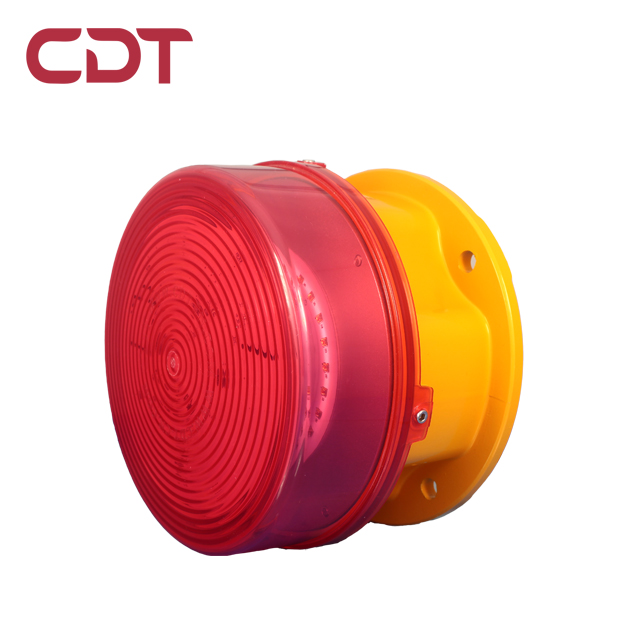

CM-13 Medium Intensity AVIATION OBSTRUCTION LIGHT type B

Production Show

Specification

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 95%,

quite high impact resistance and fit the bad environment very well.

2. House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high

strength, resistance to corrosion;
3. Using parabolic reflector optical design, range further;
4. Light source adopts high quality LED, low power consumption, long lifespan, high brightness;
5.Based on the single chip computer control, automatic identification sync signal, do not distinguish the

main light and auxiliary light, and also could be controlled by controller;
6.Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage

by error installation caused;
7.Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level;
8.The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so

that the light is suitable to harsh environment;
9. Integral structure, protection lever of IP65;
10. Ignitability rate UL-94V0, fit for all kinds of industrial situation;
11. GPS synchronizingfunction is available.

             CK-15-T                            CK-16                               CK-11L                                CM-18

                (Solar AVL)                          (Medium Intensity AVL)                        (Low Intensity AVL)                      (High  Intensity AVL)

  Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.
Usually used above 45m or below 150m buildings, could use alone,also could use with Low intensity OBL type B together.
