Crawler mounted hydraulic down the hole gold mining drilling rig

Contact Supplier Add to List

Company Overview

Jining Hengwang Mining Machinery Co., Ltd.

Member Type: Corporate Member

Member Level: 1st year

VIP Rating

Contact Person：: Ms. Aggy Li(Mr.)

Chat Now：: [offline]

Focus：: [Favorite Company] [Message]

Telephone：

Mobile：

City：: China

Address：: Floor 24, Block C, Haineng Zhihui Building, No. 6, Jinyu Road, Rencheng District, Jining, Shandong, China

Certifications：

Other Products

You may like

Product Description
Company Overview

Product Information

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW Down-the-hole Drill

Model Number:: HW hydraulic drilling machine

Usage:: Water Well

Voltage:: 380V

Power(W):: 37KW

Dimension(L*W*H):: 4*2.2*2.6

Weight:: 4000KG

Certification:: ISO9001

Warranty:: 1year hydraulic drilling machine, 1Years

Model:: Hot sale water well drilling machine water drilling

drilling work:: water well. mining

depth:: 600m

diesel engine power:: 50HP-102hp

Technical guidance: long time:: Technical guidance: long time

Down-the-hole Drill:: Down-the-hole Drill

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 100 Set/Sets per Month drilling rig

Packaging & Delivery

Packaging Details: export standard package
Down-the-hole Drill

Port: QINGDAOSHANGHAI TIANIN

Lead Time:: 15 work days Down-the-hole Drill

Crawler mounted hydraulic down the hole gold mining drilling rig :

Product Description

Drilling depth	m		100			250			300	600
Drilling DI	mm		300			200			150	75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed				r/min				30-1050
Spindle reverse speed				r/min				29-137
Spindle stroke				mm				560
Spindle inner diameter				mm				96
Spindle lifting capacity				KN				60
Main Winch ( drive hydraulic system)
Single line lifting speed					m/min			0-45
Hug floodgate belt width					mm			90
Tightrope diameter					mm			14
Hoist single line lifting capacity					KN			40
Roller diameter					mm			200
Roller cubic measure					m			30
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure								63mL/r 20Mpa
Behind displacement,pressure								25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp						R4105ZD 50HP
Electric motor		KW						Y180L-4 37KW

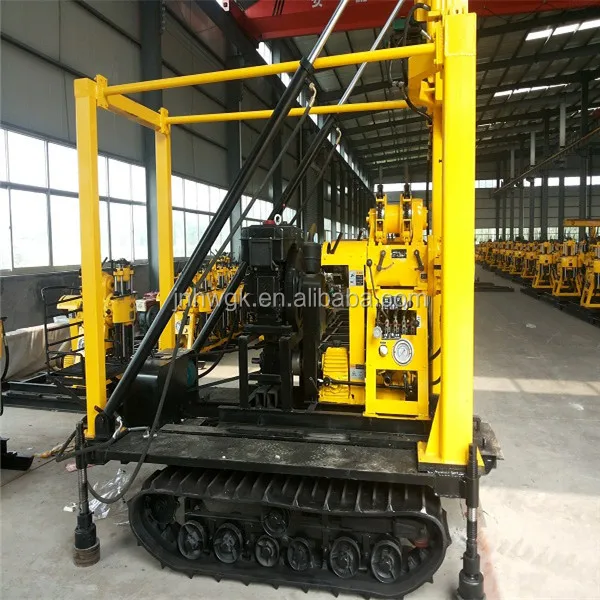

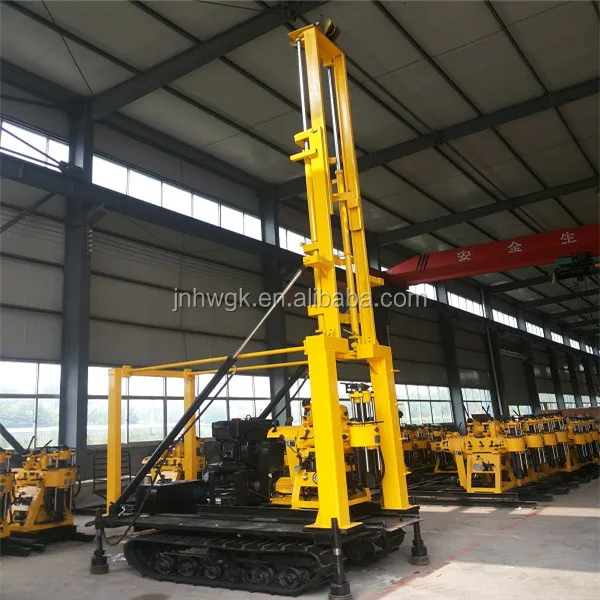

Figure photos for rock drilling

Qualification & certification for rock drilling

History order

Welcome to visit our factory
